Power - Power Supply: 100~240V AC, 50/60 Hz
- Power Consumption: 190W
- Power Connection: PowerCON In (18 - 24V DC 3-pin DIN Plug)
Photometrics - Light Source: 50W 7500K White LED
- Beam Angle: 10°

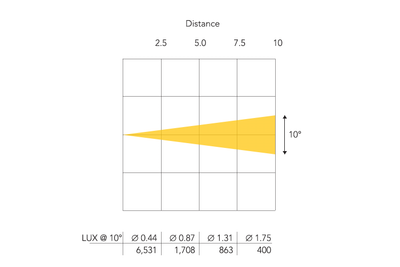

- Output: 6,531 lux @2.5M at 10°
- PWM: 1,200Hz
- LED Lifespan: 50,000 hours
Effects - Dimming: 0 - 100%
- Strobe: 1 – 28 Hz
- Focus: Electronic Linear
- Prism: 3-facet
Movement8-bit / 16-bit Auto Reposition
- Pan: 630° / 540° / 360°
- Tilt: 270° / 180° / 90°

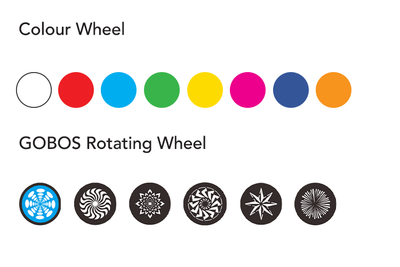

Colour 7 Colours + Open
Gobos
- Rotating: 6 Patterns + Open
- Interchangeable (outside Φ21.8mm, inside Φ14.5mm)
Built in Internal Battery22.2 - 25.2V, 20Ah
- Auto Run: Up to 12 hours
- Full Colour: Up to 8 hours
Control
- Operational Modes: DMX, Auto Program, Sound Active, Master / Slave
- DMX Protocol: DMX512 / Wireless DMX
- DMX Channel Mode: 13 / 11
- DMX Interface: 3-pin XLR
- Display: 2.4" LCD control panel
Housing
- Housing Materials: ABS & Steel
- Housing Finishing: Matte Black
- Cooling: Fan
- Net Weight: 10.6 kg
- Rigging: 2 x Omega Brackets with 1/4-turn Quick Locks
- Roadcase: (Optional)
External Battery BMBATT20
- (Optional:) 22.2V, 10Ah
- Auto Run: Up to 5 hours
- Full Colour: Up to 3.3 hours
