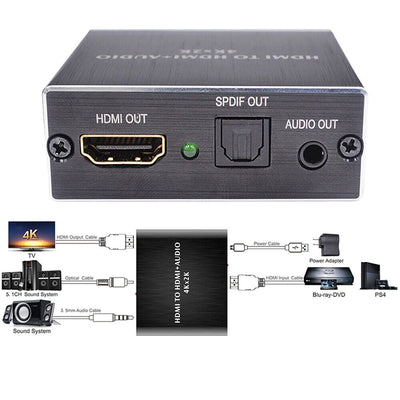

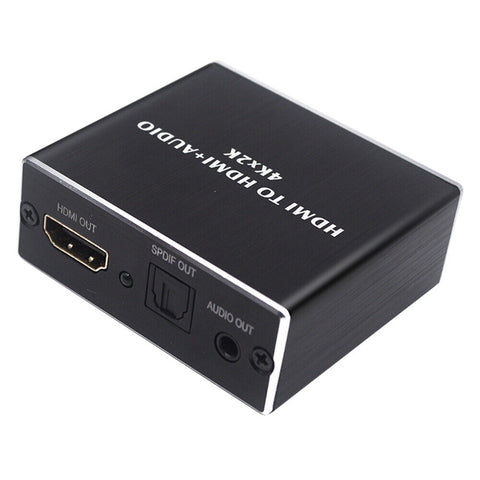

HDMI Stereo Audio Extractor Converter 4K * 2K HDMI to HDMI + Optical SPDIF 3.5mm

HDMI Stereo Audio Extractor Converter 4K * 2K HDMI to HDMI + Optical SPDIF 3.5mm

This HDMI audio splitter can extract embedded audio signals from HDMI sources and convert them into 3.5mm analog audio output and spdif output at the same time. spdif output supports 2 ch audio and 5.1 ch audio, including Dolby Digital 5.1 ch and dts 5.1 ch.
Main Feature:
• Input port: 1 x hdmi, 1 micro usb power port, 3 x edid audio (pass, 2 ch, 5.1 ch)
• Output port: 1 x hdmi, 1 x spdif (optical fiber), 1 3.5mm connector.
• HDMI resolution: 4k x 2k, 24/50/60/1080p/1080i/720p/576p/576i/480p/480i
• Supported color formats: 24-bit/30-bit deep color, 36-bit
• Maximum bandwidth: 225 mhz
• Maximum baud rate: 6.74 gbps
• Maximum operating current: 190 mA
• Audio and video can be converted from hdmi output
• HDMI pass-through mode: You can convert audio and video from HDMI output. Spdif el/r no sound
• 2ch mode: extract 2ch digital pcm stereo audio signal from hdmi input. Output stereo audio hdmi/spdif el/r
• 5.1 ch mode: extract 5.1 Dolby Digital/dts and output through hdmi/spdif.

Package Includes:
1x HDMI audio extractor
1x Micro USB data cable
1x User Manual
