Event Lighting SPLIT6 - Indoor 6 Way DMX Splitter

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

SPLIT6 - 6 way Indoor Splitter with 5 pin XLR in/thru and 6 outputs, true1 in/out and built in terminator

Control:

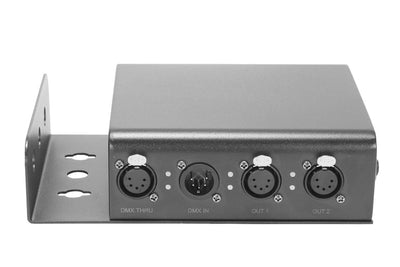

Signal connector: 1 x 5Pin XLR in
  1 x 5Pin XLR thru

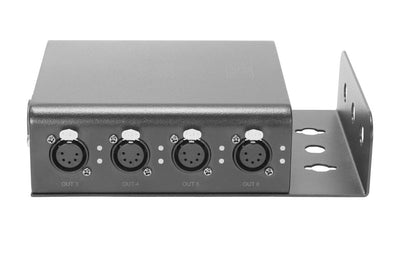

  6 x 5Pin XLR splitter
Indication: Signal & Power LED for each output
Isolation: 100% for all inputs and outputs

Power:

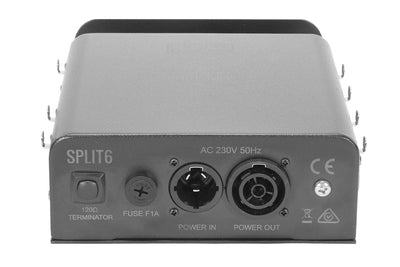

Power connector: Powercon In
Power input: 240V
Power consumption: 6W

Housing
IP rate: IP20
Mounting: Wall or Truss mounting
Dimensions: 242 x 140 x 55 mm
Weight: 1.4 kg



Download user manual
