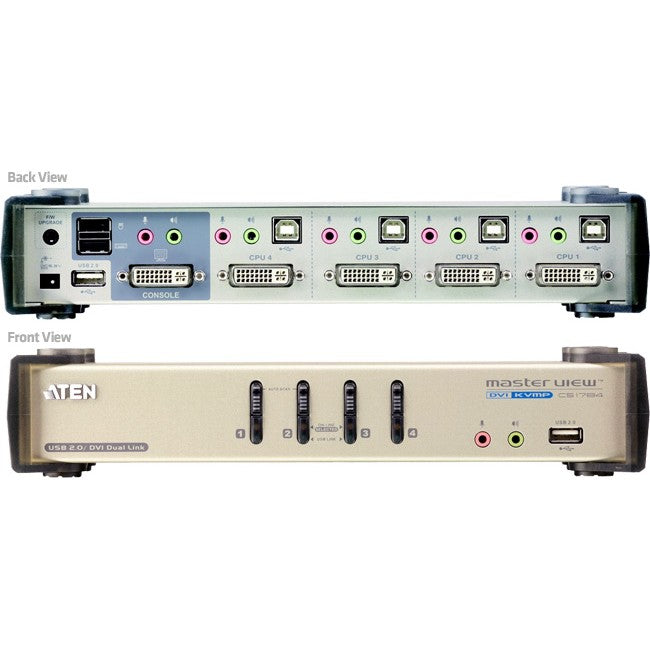

CS1784A 4 PORT USB 2.0 / DVI KVM DESKTOP SWITCH WITH AUDIO ATEN CS-1784A

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

4-Port USB 2.0 DVI KVMP Switch - ATEN

The CS1784 DVI KVMP Switch charts a revolutionary new direction in KVM switch functionality by combining a 4-port KVM switch with a 2-port USB 2.0 hub at the same time as providing an interface for a DVI monitor and audio support.

FEATURES:

  • One USB console controls four computers and two additional USB devices
  • 2-port USB 2.0 hub built in
  • USB 2.0 compliant
  • Full bass response provides a rich experience for 2.1channel surround sound systems
  • Console audio ports on front panel for easy access ideal for IP phone users
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support fully compliant with the DVI specifications; also HDCP compliant
  • Superior video quality - 2560 x 1600 (DVI Dual Link);1920 x 1200; DDC2B (DVI Single Link)*
  • Supports widescreen resolutions
  • Computer selection via front panel pushbuttons and hotkeys
  • Multiplatform support - Windows , Mac, and Sun
  • Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • HDCP compliant
  • Complete keyboard emulation for error-free booting
  • Sun/Mac keyboard support and emulation**
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradeable

*2560x1600@60Hz (DVI Dual Link);3840x2400@13Hz (DVI Single Link) only supports specific monitor resolution

**1. PC keyboard combinations emulate Sun/Mac keyboards 2. Sun/Mac keyboards only work with their own computers

Package Content:

  • 1x USB 2.0 DVI KVMP Switch
  • 4x Custom KVM Cable Sets (DVI-D)
  • 1x USB-to-PS/2 Converter
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x User Manual
  • 1x Quick Start Guide

SPECIFICATIONS:

Computer Connections 4
Port Selection Hotkey, Pushbutton
Connectors Console Ports Keyboard 1 x USB Type A Female (Black)
Video 1 x DVI Female (White)
Mouse 1 x USB Type A Female (Black)
Speaker 2 x Mini Stereo Jack Female (Green)
Microphone 2 x Mini Stereo Jack Female (Pink)
Computer Connectors Video 4 x DVI Female (White)
Keyboard / Mouse 4 x USB Type B Female (White)
Speaker 4 x Mini Stereo Jack Female (Green)
Microphone 4 x Mini Stereo Jack Female (Pink)
USB Hub 2 x USB Type A Female (White)
F/W upgrade 1 x 4-conductor 3.5mm Jack(Black)
Power 1 x DC Jack
Switches Port 4 x Pushbutton
LEDs USB Link 4 (Green)
On Line/Selected 4 (Orange)
Emulation Keyboard/Mouse USB
Video DVI-D: 2560 x 1600 @60Hz (Dual Link); 1920 x 1200 @60Hz (Single Link)
DVI-A: 2048 x 1536; DDC2B
Scan Interval 1-99 seconds (5 secs. default)
Power Consumption DC5.3V, 9W, 1.7A
Environment Operating Temp. 0 -50˚C
Storage Temp. -20-60˚C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.94 kg
Dimensions
( L x W x H )
27.00 x 8.70 x 5.50 cm
