DBPC946B DUAL BEAM PHOTOELECTRIC SENSOR DIGITAL PULSE BEAM 15-946

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Secure your land and get alerted when anything passes theline! With this Dual-Beam Photoelectric Sensor you will be able to set up a security line and hear a warning sound if any movements are detected. Capable for both indoor and outdoor use. Now with digital display!

Features

  • Wired/BUS compatible, 8 digital frequency range.
  • Dynamic frequency analysis
  • Intelligent alarm linkage links alarm to your existingsecurity system

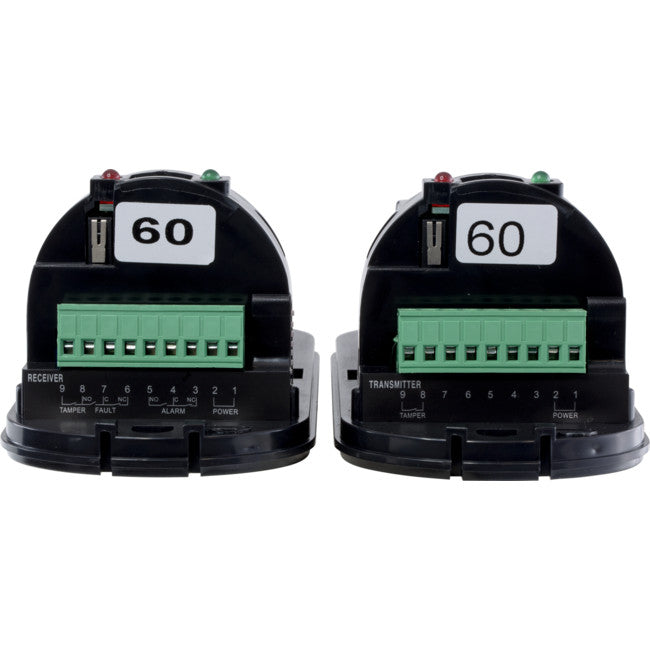

  • Tamper, fault and alarm contact outputs
  • Powerful sensor signal transmission with anti-fog design for the sensors.
  • Adopt coaxial aspherical dual optical focusing lens.
  • Digital display BUS address, signal strength and working frequency.
  • Blocking time adjustment for specific target movement rate detection.
  • Protection range up to 90-180m (Indoor)/ 30-60m (Outdoor)
  • Comes with post mounting kit(Diameter 25 to 40mm approx): Screws, mounting plate and mounting saddle.

Specifications

Model DBPC946B
Alert Distance Outdoor 60m
Alert Distance Indoor 180m
Number Of Beams 2
Detection Mode 2 Beams blocked simultaneous
Optical Source Infrared digital pulse beam
Response Time 50-240ms (Adjustable without degree)
Power Supply DC12-24V 15W
Alarm Output Relay contact output NO. NC contact rating AC/DC 30V30mA Max
Trouble Output Relay contact output NC contact rating AC/DC 30V 30mA Max
Tamper Output Relay contact output NC contact rating DC24V 0.5A Max
Operation Temperature −25°C-55°C
Operation Humidity 5%-95%

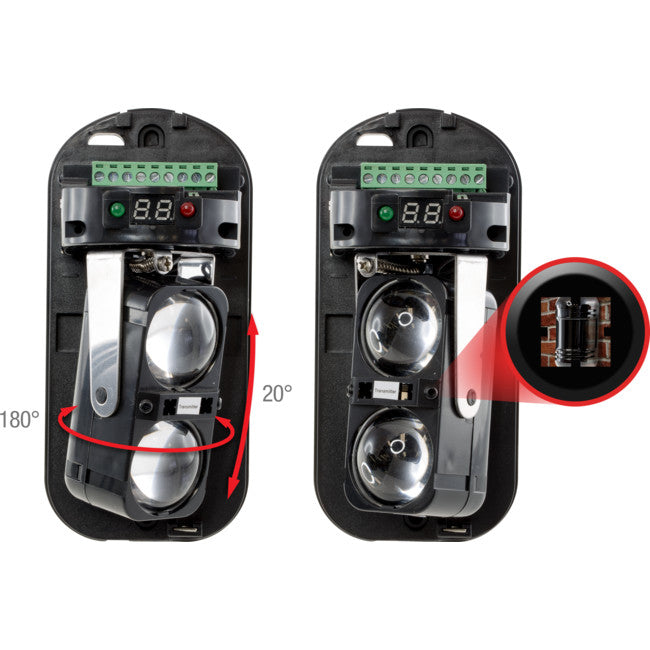

Optical axis(Horizontal) 180°(Default position±90°)
Optical axis (Vertical) 20°(Default position±10°)
Material P C resin
Net Weight 430g (Receiver+ Transmitter)
Gross Weight 790g
