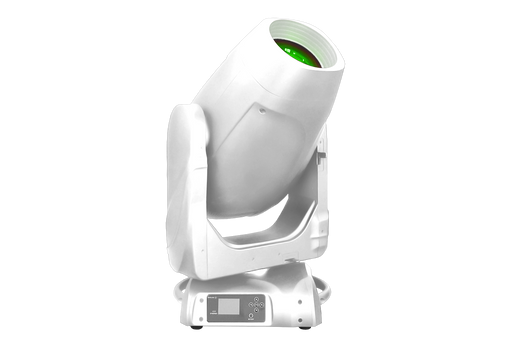

Event Lighting HAVOCH600F-WH - 600W LED Moving Head Hybrid with Framing

Event Lighting HAVOCH600F-WH - 600W LED Moving Head Hybrid with Framing

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

The Event Lighting HAVOCH600F-WH is a powerhouse LED Moving Head Hybrid designed for a versatile lighting experience. This single 640W white LED engine powerfully illuminates any space, delivering an engaging light show with 8 + open colours, 8 + open static gobos and 7 + open rotating gobos.

The motorised zoom can adjust the beam angle between 4° to 50°, shining a powerful 83,800 lux at 5 metres (4°), you can effortlessly tailor the coverage to suit any venue or stage.

With flexible operational modes including DMX, auto, and sound active, navigation is intuitive via the 2.4" colour LCD control panel with battery backup. Upgradeable via DMX, the HAVOCH600F ensures your lighting capabilities stay cutting-edge. Crafted with durability in mind, the matte black ABS and steel housing contains a multi-sensor thermostat, ensuring efficient cooling in a robust and reliable form-factor.

The HAVOCH600F comes with True1 in/out, 3/5 pin XLR in/out, wireless option available.



Specifications:

Photometrics

  • Light Source: 640w LED White
  • Beam Angle: 4°-50°
  • Output: 83,800 lux @ 5m at 4°
  • Colour Temperature: 7,700K
  • LED lifespan: 20,000 hours

Colour

  • 8 Colours + Open
  • Linear CMY+CTO

Gobos

  • Fixed: 8 + Open
  • Rotating: 7+ Open

Effects

  • Dimming: 0~100%
  • Strobe: Yes
  • Focus: Motorised
  • Prism: Rotating 4 facets
  • Animation wheel
  • Iris: Yes
  • Frost: Yes
  • Zoom: Yes (4° to 50°)
  • 4 Individual Shutter Blades Rotating +/- 45°

Movement

  • 16 bit resolution
  • Auto repositioning
  • Pan: 630° (4.4 sec) or 540° (3.9 sec)
  • Tilt: 233° (2.3 sec)

Power

  • Max power consumption: 590W
  • Input Voltage: 100~240V AC, 50/60 Hz
  • Connection: Neutrik® PowerCON in/out

Control

  • Control Protocol: DMX512, RDM
  • Optional Wireless
  • DMX Channels: 39
  • Interface: 5-pin XLR in/out, RJ45 in / out
  • RDM function to change DMX address
  • Display: 2.4″ colour LCD control panel
  • Software Upgrade via DMX: Yes

Housing

  • Materials: ABS & Steel, matte black finish
  • Dimensions: 443 x 748 x 305mm
  • Cooling: Multi sensor thermostat controlled variable speed fan
  • IP rating: IP20
  • Net Weight: 37.2kg
  • Rigging: 2 x omega brackets with 1/4-turn quick locks

Accessories

    Download DMX chart

    Download product datasheet

    Download user manual
