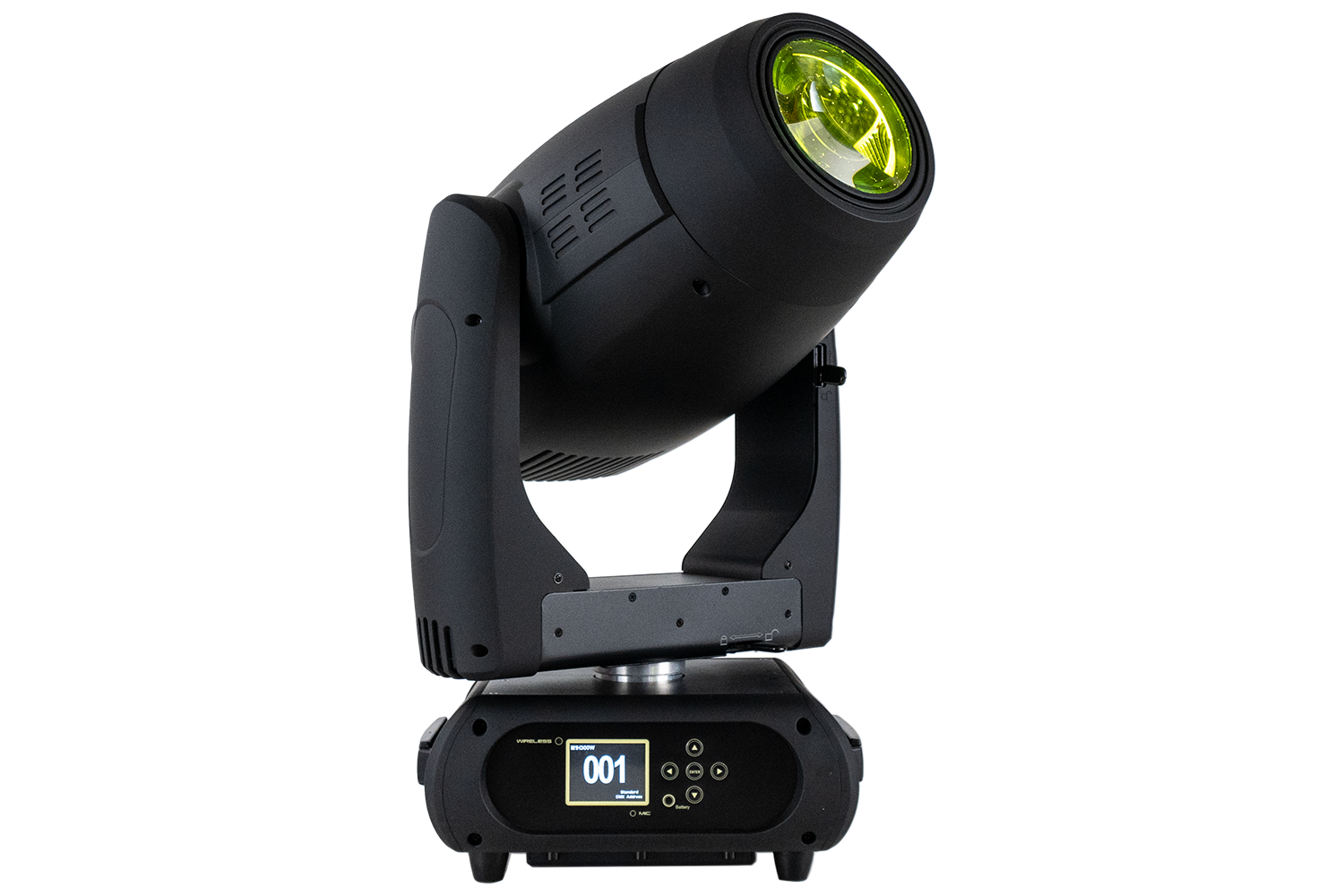

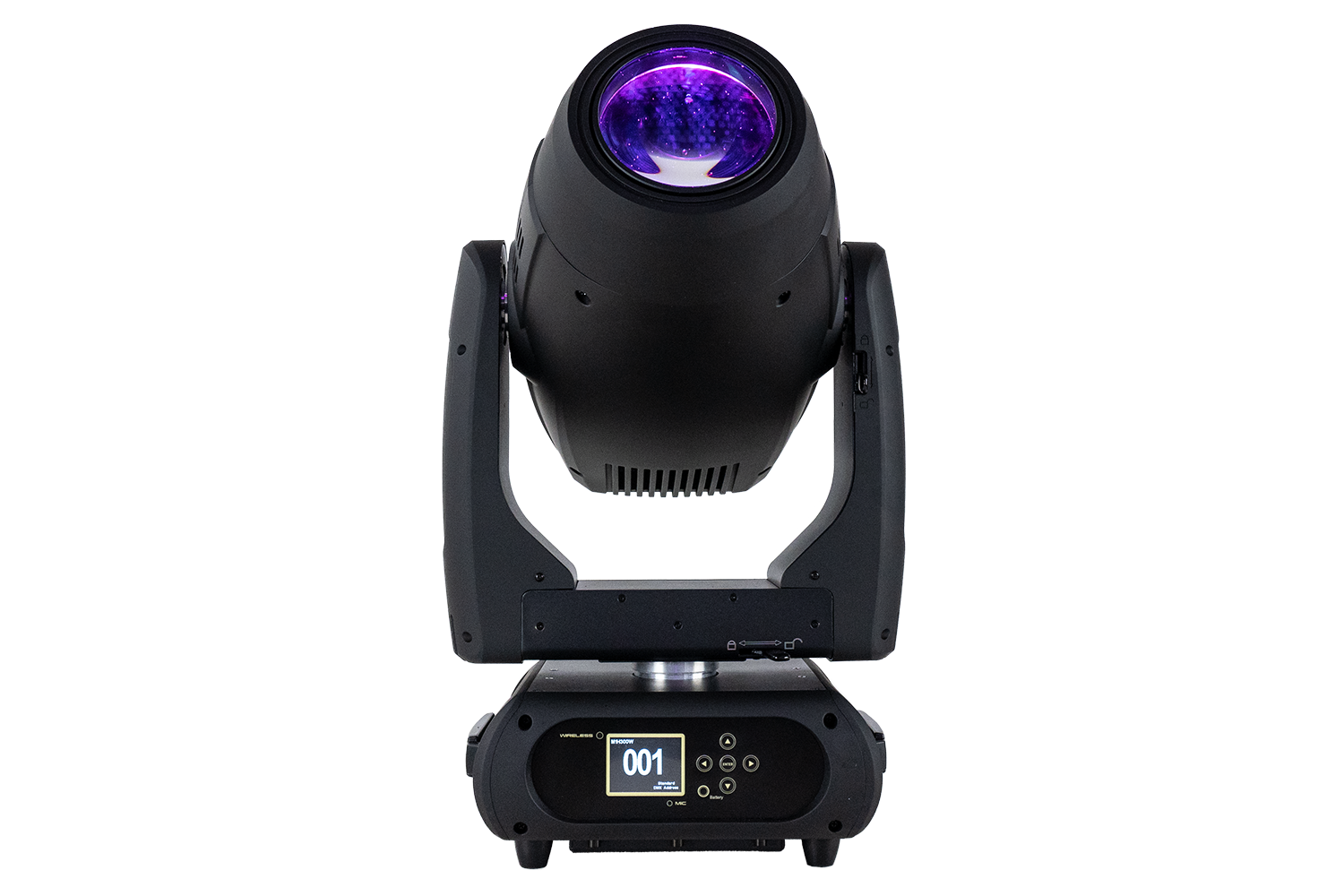

Event Lighting M1H300W - 300W LED Hybrid Moving Head with CMY, CTO and Zoom

This product is discontinued

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974.

The M1H300W is a versatile hybrid mover with a 3-facet prism and frost, iris, an 8-colour wheel, fixed and interchangeable rotating gobo wheels, and a beam angle of 6~48°.

Photometrics

• Light Source: 300 W White LED Module, 6,500 K
• Beam Angle: 6°~48°

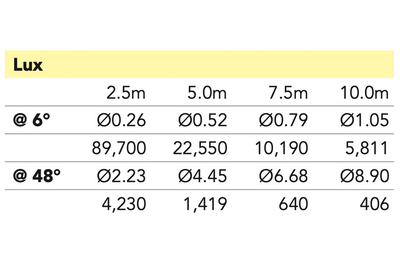

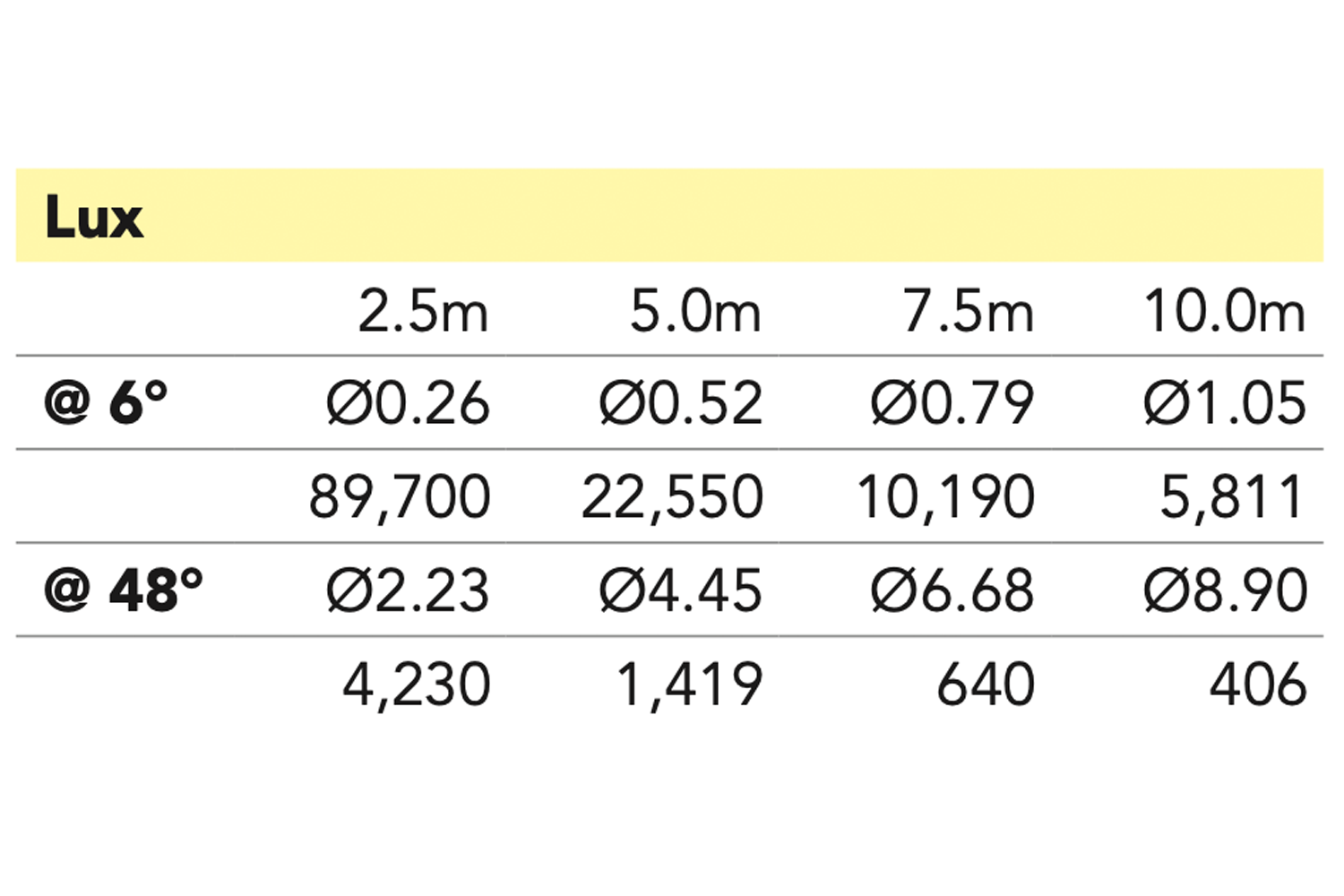

• Output: 18,000 lumen, 89,700 lux @ 2.5m @ 6°
• PWM: 1,200 Hz
• LED Lifespan: 60,000 hours

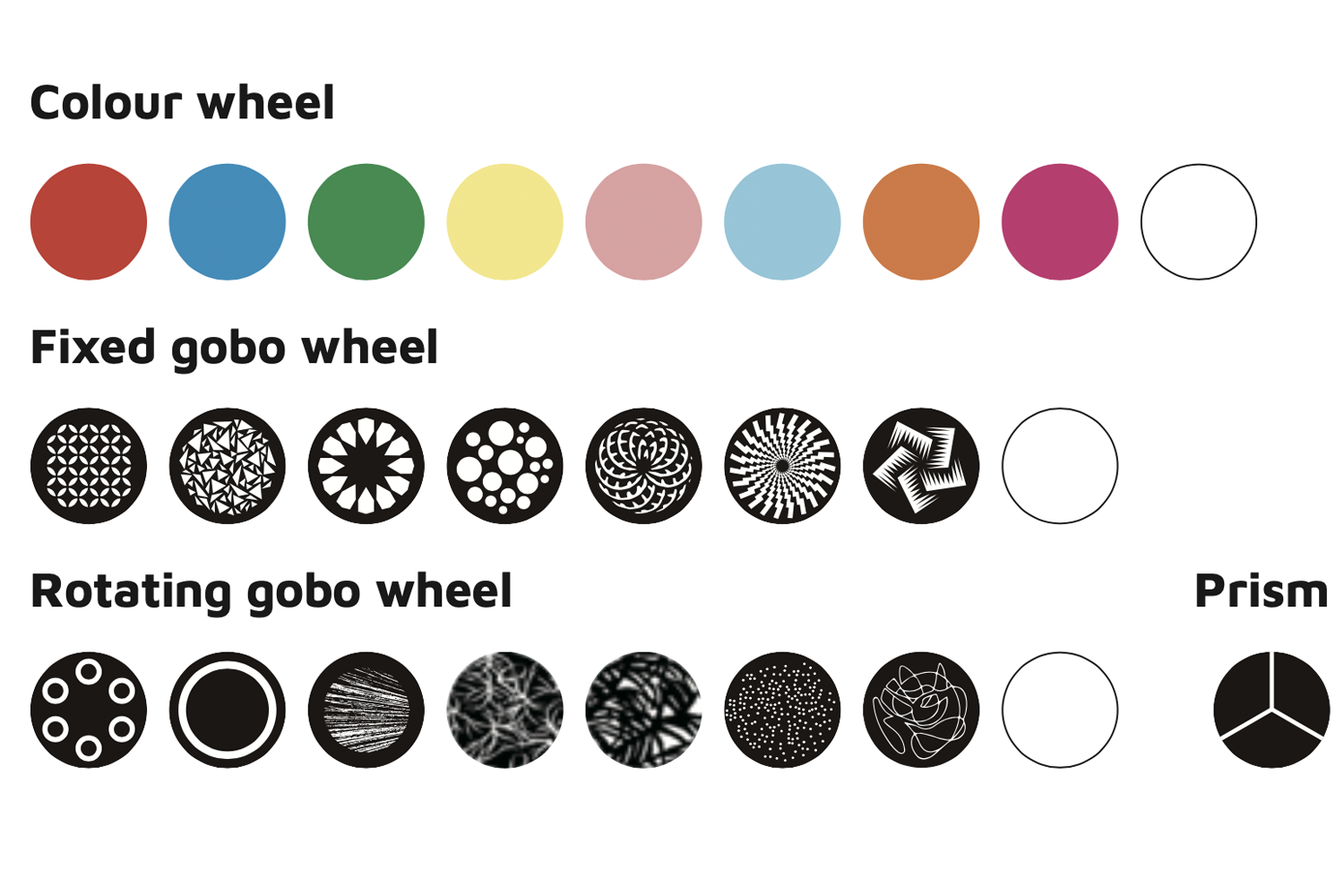

Colour

• Liner CMY & CTO
• 8 Colours + Open

Gobos

• Fixed: 1 x 7 + Open Fixed Gobo Wheel
• Rotating: 1 x 7 + Open Interchangeable Rotating Gobo Wheel (Outside Ø27mm, Inside Ø20mm).

Effects

• Dimming: 0~100%
• Strobe: 0.5~26 Hz
• Focus: Motorised
• Prism: 3-facet
• Frost: Yes
• Iris: Yes
• Zoom: Motorised, 6°~48°

Movement 8 / 16 bit Auto Reposition

• Pan: 630°(4.0 sec) or 540°( 3.58 sec)
• Tilt: 265°(2.8 sec)

Power

• Input Voltage: 100~240 V AC, 50/60 Hz, 400 W
• Connection: Neutrik® powerCON in

Control

• Operation Modes: DMX, auto, sound active, master/slave
• Control Protocol: DMX512, RDM (optional: W-DMX™)
• DMX Channels: 28 / 29 / 19 / 21

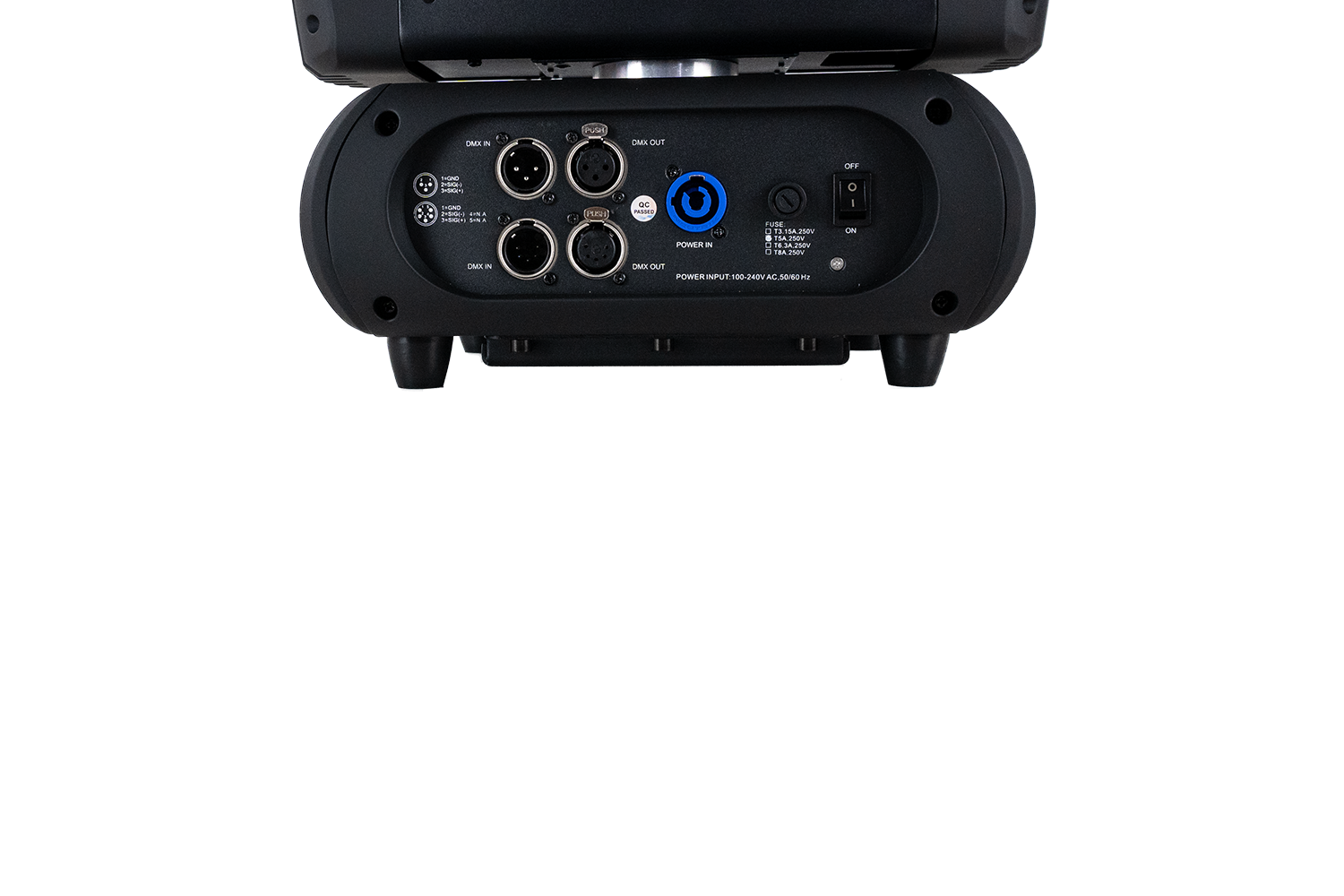

• Interface: 3-pin XLR, 5-pin XLR
• Display: 2.4″ colour LCD control panel with battery power
• Software Upgrade via DMX: Yes

Housing

• Materials: ABS & Steel, matte black finish
• Cooling: Multi-sensor thermostat controlled variable speed fan
• IP rating: IP20
• Net Weight: 18 kg
• Rigging: 2x omega brackets with 1/4-turn quick locks

MISC

• Road case: MCASE1LS MCASE2VLS
