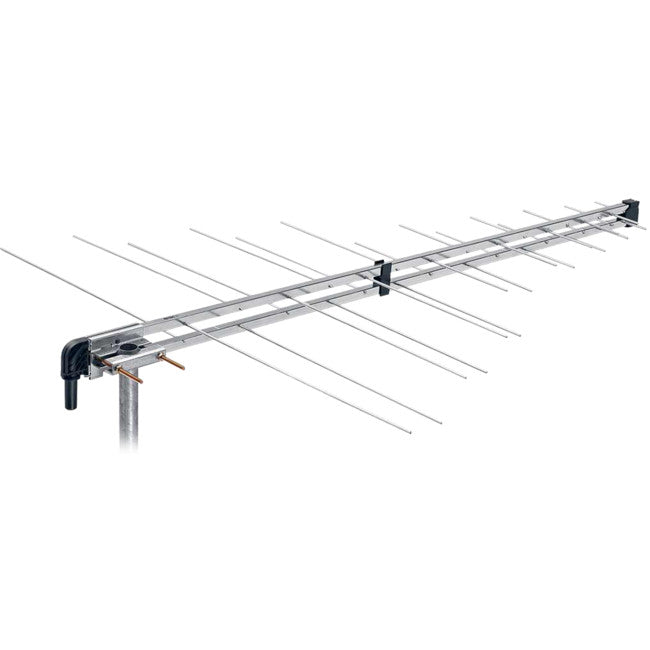

LP345F700 LOG PERIODIC ANTENNA CH 6-51
Log-periodic MINI pre-assembled aerials for broadband characterized by extremely easy connection due to the F connector being located near the mast clamp.
Features:
- Due to the specific mast clamp these aerials can be assembled in vertical or horizontal polarisation
without additional accessories.
- Geometrical dipole distribution has been redesigned inorder to obtain a good 5G and 4G LTE filtering.
{tab Specs}
| Elements | no. | 15+15 |
| Band | | 3+DAB / UHF |
| Channel | | E5-E12+ DAB / E21-E48 |
| Bandwidth | MHz | 174-240 / 470-694 |
| Gain | dBi | 8.5 / 10 |
| Front/Back ratio | dB | 22 / 30 |
| Returnloss | dB | -14 / -13 |
| Beamwidth (-3dB) | ’_x0015_ | ’€34 / ’€30 |
| Wind load at 120km/h (720N/m’) | kg (N) | 2.7 (26.48) |
| Connector | Type | F |
| Impedance | O | 75 |
| Max mast (“ÿ) | mm | 60 |
| Dimensions (L x H) | cm | 77 x 86 |
| Quantity Masterbox | pcs | 20 |
| Unit weight | kg | 0.90 |
| Total weight | kg | 18.5 |
