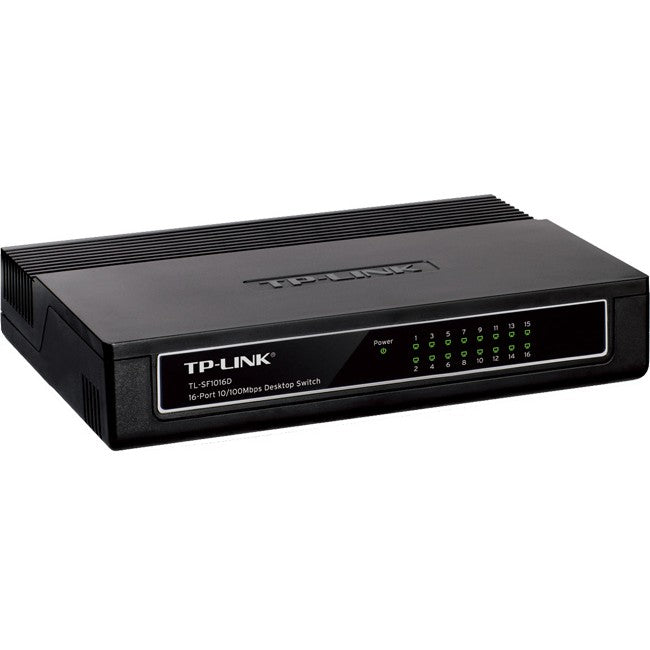

TL-SF1016D 16-port 10/100Mbps Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the needfor crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
The TP-LINK TL-SF1016D 16-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improveyour old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
Standards and Protocols | IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP |
Basic Function | Wire-speed Performance |
MAC Address Auto-Learning andAuto-aging | |
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode | |
Backbound Bandwidth | 3.2Gbps |
MAC Address Table | 1k |
Forwarding Rate |
10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port
|
Transmission Method | Store-and-Forward |
Ports | 16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
Network Media |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m)
|
LED Indicators | Power, Link/Act (1~16) |
Safety & Emission | FCC, CE |
Dimensions (W*D*H) | 7.9*5.6*1.6 in. (200*142*40 mm) |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Power | External Power Adapter |
