K-106-480S 4G DIALLER GEN2 WITH SIM UNLOCKED 4G SIM

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Overview}

K-106-480S 4G DIALLER GEN2 (UNLOCKED) BYO SIM

The Ness 4G Dialler provides a 4G pathway for alarm diallers to communicate in the absence of a landline.

This unit provides support for any dialler that reports to any Central Monitoring Station (without a need to any special control room receiver) or can dial an alarm event to a personal number, in the same fashion as it would if a landline was available.

Also includes a backup battery to allow operation in the event of mains power failure.

No programming of of the device is required, just plug and go.

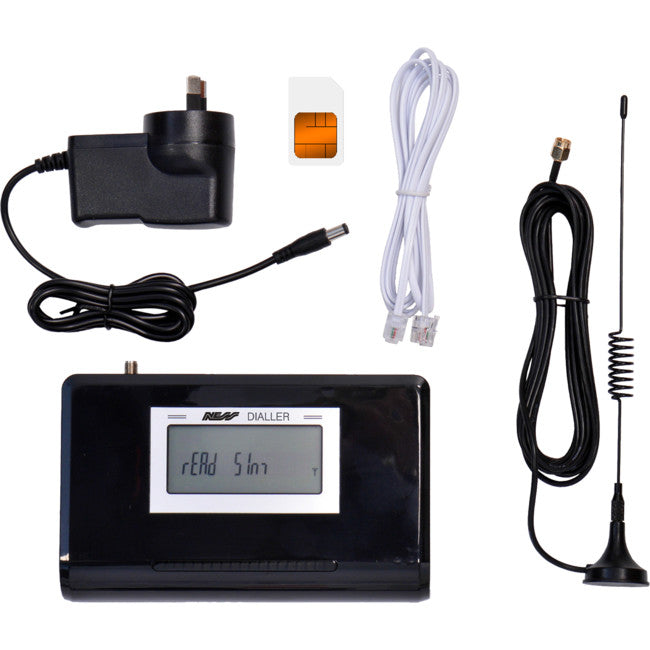

Supplied with plug pack power supply, telephone lead, 4G Antenna.

This product is not network locked. BYO SIM.

IMPORTANT NOTES

• This product is designed to provide a cellular pathway for alarm control panels with PSTN diallers in the absence of landlines.

• Not intended for industrial use.

• Not recommended for use in lift cars or other non-stationary situations.

• Ensure that the location has adequate cellular signal and test operation after installation.

• The unit must be tested weekly to verify cellular reception and correct operation.

• The 12V plug pack supplied must be used. Do not connect to an unregulated or 'noisy' power supply.

{tab Features}

• Plug-and-go operation - no programming required

• Antenna with magnetic base supplied - long cable allows the unit to be installed in a secure housing

• Compatible with all Ness landline control panels and most third party panels

• LCD status display

• 12V Plug pack powered (included)

• Onboard battery backup

• Available with or without Ness SIM

• Choose to take advantage of competitive N


{tab specs}

Cellular Compatibility 4G
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28
LTE-TDD: B40
LTE Category LTE module optimised for M2M and IoT applications
Audio via 4G support Digital Audio and VoLTE
SIM Card Standard size SIM, Ness SIM supplied with K-106-480S (Unlocked)
Alarm Panel Compatibility Compatible with all Ness PSTN alarm diallers in Contact ID DTMF and Voice formats
Operating voltage 12VDC plug pack supplied
Battery Backup Internal rechargeable battery
Battery backup time max. 2~3 hrs
Power consumption 25mA (standby), 300mA (communicating)
Antenna 3dB whip with magnetic base, 2.9m cable length
Dimensions 160 x 100 x 40mm
Weight 370g
Operating Temperature 0°C to +50°C
