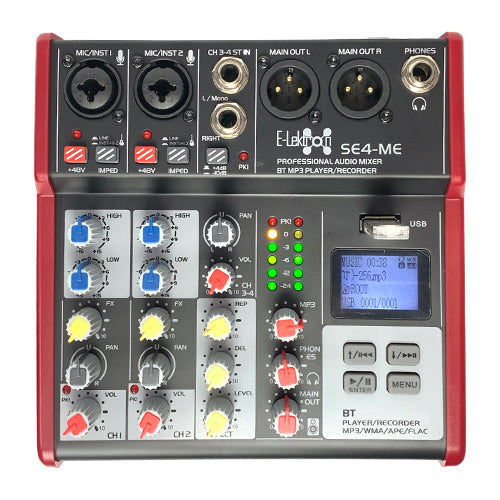

SE-4: mixer for stage, streaming, recording, etc.
Compact mixer with 2 microphones/instrument channels, stereo channel and stereo USB / Bluetooth channel. Fully equipped with an MP3 player/recorder, sound card, Bluetooth, reverb effect, and phantom power.
Features:
- Live mixer with 2 microphone/instrument channels including 48V phantom power
- Mono/stereo channel
- Stereo Bluetooth / USB channel with recording function
- Built-in sound card for streaming via PC
- Volume / pan / 2-band EQ / effect controls each Microphone / Instrument Channel
- Digital Hall Effect Channel-to-Organize
- Combined XLR / Jack Jacks, Level Switchable: Microphone or Line
- Stereo MP3 player for USB flash drive also plays WMA / APE / FLAC
- LCD display / Headphone jack / Output via 2x XLR jack
Specifications:
- Microphone / Instrument Channels: 4
- Gain: -40 - + 40dB adjustable
- Equalizer: 80Hz / 12kHz, +/- 15dB each
- Phantom: + 48V
- Impedance: switchable Line / Microphone
- Combo Input Jack: XLR balanced / Jack (6.3mm) unbalanced
- Stereo Line Channel: 1
- Sensitivity: + 4dB / -10dB switchable
- Input Jacks: 2x Jack (6.3mm)
- Playback: mono with Pan, or stereo
- Stereo USB / Bluetooth Channel: 1
- Capacity Memory Stick: up to 16GB (FAT32)
- Playable Files: MP3 / WAV / APE / FLAC
- ADC / DAC: 16-bit / 48kHz
- File Format Recording: 128Kbs / 48kHz Sampling
- Bluetooth Version: 4.2
Generally:
- Output Level: 3Vrms (75 ohms), + 4dBu, max + 22dBu
- Output Jacks: 2x XLR Balanced
- Frequency Response: 20 - 20,000Hz (+/- 0.5dB)
- Power: 5Vdc / 1A (power adapter included)
- Delivery without the illustrated storage media
