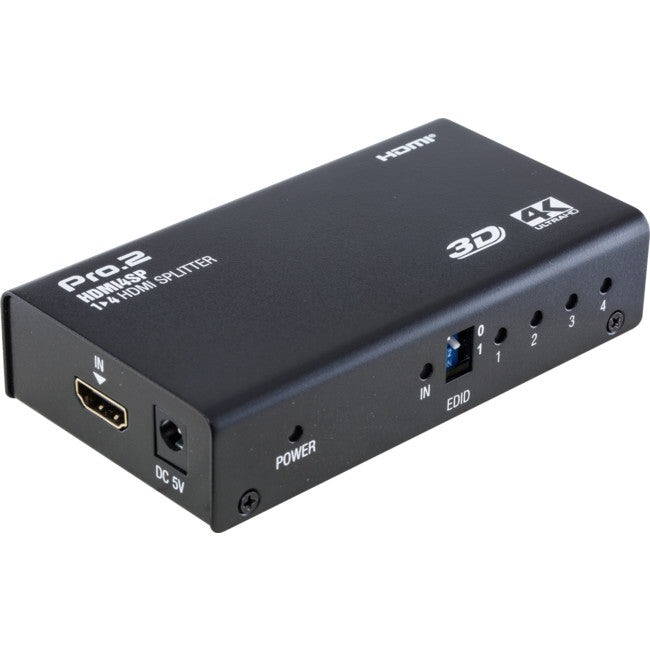

Pro2's high quality HDMI splitters take a single signalinput — Bluray, HD TV, PayTV (Foxtel), Xbox 360, PlayStation 3 etc. — and split them to multiple outputs without any signal loss.
Our range provides an ideal solution from a simple homeinstallation to a massive 16 monitor commercial installation. All models come in a robust metal case that ismade up of a solid construction that is built to last.
The Pro2 HDMI splitters are also powered, meaning they also help you extend your cable runs by equalising your signals and reclocking them before passing them onto the displays.
| Model | HDMI2SP | HDMI4SP | HDMI8SP | HDMI16SP |
|---|---|---|---|---|
| Code | 64510010 | 64510020 | 64510030 | 64510040 |
| Description | 2-WAYSPLITTER | 4-WAY SPLITTER | 8-WAYSPLITTER | 16-WAY SPLITTER |
| HDMI Inputs | 1 | 1 | 1 | 1 |
| HDMI Outputs | 2 | 4 | 8 | 16 |
| 3DSupport |  | | | |
| 4K x 2K | | | | |
| HDCP Compliance | HDCPRepeater | v1.1 | v1.2 | |
| HDMI Resolutions | 480p / 720p / 1080i / 1080p @ 60 Hz / 4K x 2K @ 24 Hz | 480p / 720p / 1080i / 1080p@ 60 Hz / 4K x 2K @ 24 Hz | 480i / 576i / 480p / 576p / 720p @ 120 Hz / 1080i @ 120 Hz / 1080p @ 60 Hz / 4K x 2K @ 24 Hz | 480i / 480p / 576i / 576p / 720p / 1080i / 1080p @ 60 Hz |
| Audio Formats | LPCM / Dolby-AC3 / DTS 7.1 / DSD | LPCM / Dolby-AC3 / DTS 7.1 / DSD | DolbyTrueHD / DTS-HD Master Audio | DolbyTrueHD / DTS-HD Master Audio |
| Data Transfer Speed | 6.75 Gbps | |||
| Input Video signal | 5.0 Volts P-P (TTL) Single Link | 5.0 Volts P-P (TTL) Single Link | 0.5-1.0 Volts P-P DDC Signal: 5 Volts P-P (TTL) | 0.5-1.0 Volts P-P |
| Video Amplifier Bandwidth | 140 MHz | 140 MHz | 140 MHz | 140 MHz |
| Transmission Distance | 15 metres using standard 26AWGcable | |||
| Power Supply (included) | 5V 1ADC | 5V 2A DC | 5V 3ADC | 5V 4ADC |
| Dimensions | 88 x 47 x 25 mm | 115 x 62 x 25 mm | 320 x120 x 35 mm | 320 x140 x 42 mm |
| Weight | 135g | 190g | 1120g | 1450g |
| Power Consumption | 3.5 W | 5 W | 10 W | 20 W |
| Operating Temp. Range | -15°C to 55°C (23°F to 95°F) | |||
| Operating Humidity Range | 5 to 90% RH (no condensation) | |||
