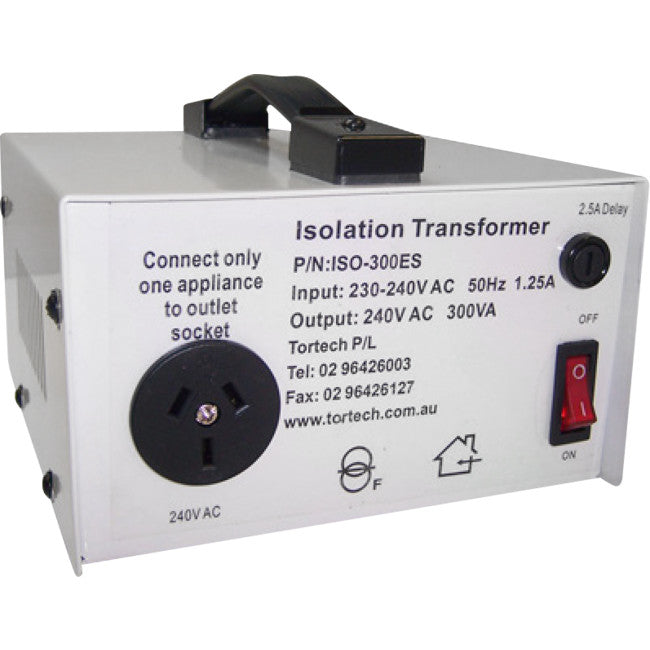

ISO300ES-240V 300VA ISOLATION TRANSFORMER MAINS ELECTROSTATIC SCREEN TORTECH ISO-300ES

$189.90

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

300VA MAINS ISOLATION TRANSFORMER WITH ELECTROSTATIC SCREEN

Australian Made Quality Units
All units are enclosed
All units include a noise minimising electrostatic screen, suitable for audio noise reduction.
Applications include Earth Loop removal in audio systems and the elimination of boating electrolysis.
Input voltage 240V ±10% 50Hz. Australian flexand plug
Output voltage 240V Unregulated. Australian female chassis socket

All units are enclosed
All units are Fully Australian Made and quality checked
Input voltage 240V ±10% 50Hz. Australian flexand plug
Output voltage 240V Unregulated.
One Australian female chassis socket
All units are double wound. Primary to Secondary fully insulated
Optional Electrostatic screen
All transformers incorporate “soft start” circuitry to eliminate inrush current problems during turn on.
All enclosures are metal, with white powder coat finish.
All enclosures are earthed on the input side
Test Voltage 3.75 kV AC RMS
All units are fuse protected on the 240V input side.
All units are made to AS/NZS 61558

SPECIFICATIONS:

Part No	Rating Max watts	Voltage	Depth mm	Width mm	Height mm	Weight kg
ISO300	300 VA	240/240 Volts	240	150	120	4.5
ISO600	600 VA	240/240 Volts	280	150	140	5.0
ISO1000	1000 VA	240/240 Volts	300	235	150	10
ISO2000	2000 VA	240/240 Volts	300	235	150	16
