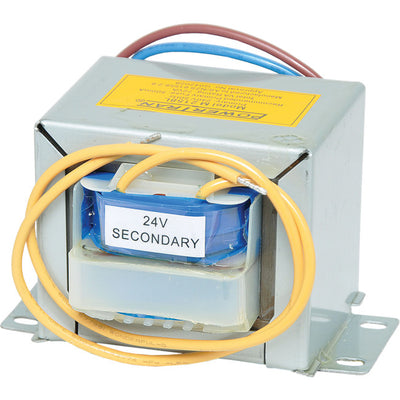

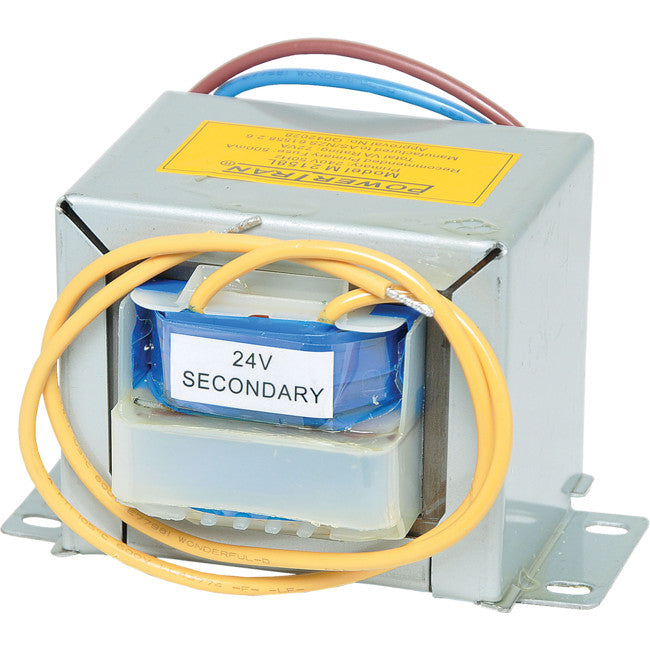

M2158L 24V 3A MAINS TRANSFORMER 72VA M2158L

M2158L 24V 3A MAINS TRANSFORMER 72VA M2158L

$41.95

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

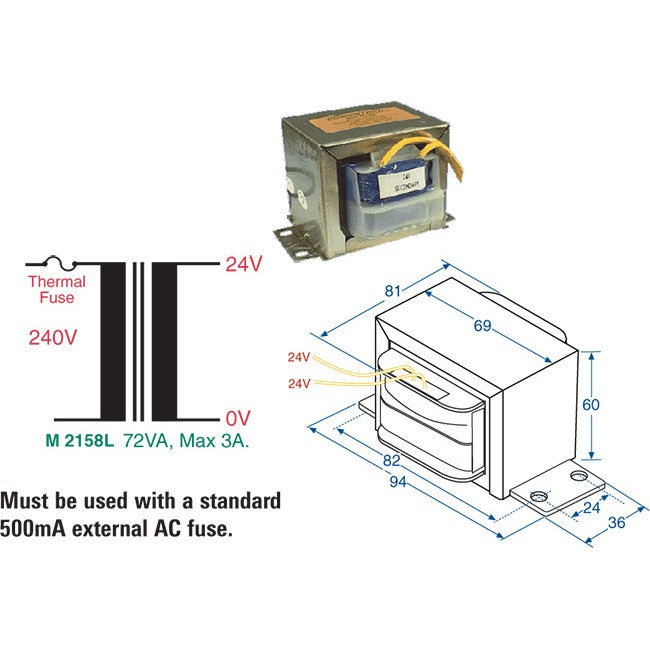

Specifications

Primary voltage: 240V AC
Total VA rating: 72VA
Insulation: Class E (120°C)
Magnetising current: <85mA
Temperature rise: <65°C
Regulation: ˜10%
Recommended primary AC fuse: 500mA
Weight: ˜1.4kg
Primary connection: 200mm fly leads
Secondary connection: Solder tags
AS/NZS 61558.2.6 approval: Q042028
AS3108 approval: CS/813/Q
Primary fitted with 200mm fly leads. Secondary fitted with fly leads
