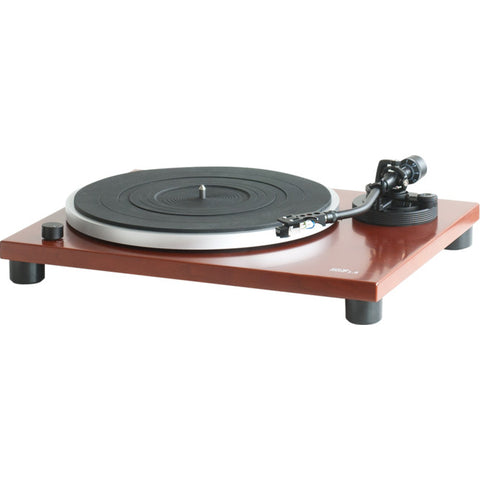

Music Hall MMF-1.5turntable

The stunning MMF-1.5 with its superior s shaped alloy tone arm, music Hall melody cartridge, 3 speed belt drive design and built-in phono pre amp, is a beautifully refind piece.

Your in the groove from the first music note to the finalfade-out, the music hall mmf-1.5 sets your world to groove and your feet to dance.

The MMF-1.5 is a complete package

A built-in phono preamplifier allows you to connect directly to any amplifier / active speakers
A top-quality music hall melody cartridge comes pre-mounted and precision-aligned.
A built-in speed control circuit ensures the accuracy of the mmf-1.5’s 3 speeds.

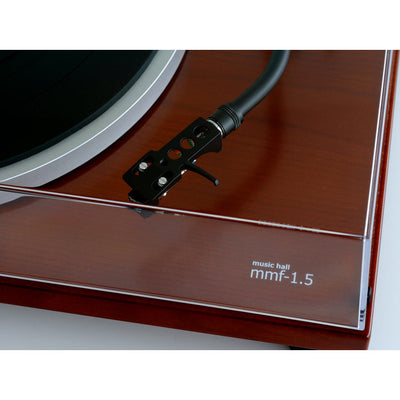

The included hinged dust cov

Other Key Features

Gorgeous real cherry wood veneer
S-shaped aluminum tonearm, 9"
removable headshell for easy cartridge changing
low noise belt-drive design
stiff and solid MDF plinth
separately isolated DC synchronous motor for superior speed stability
three-speed motor provides 33?, 45, and 78 rpm

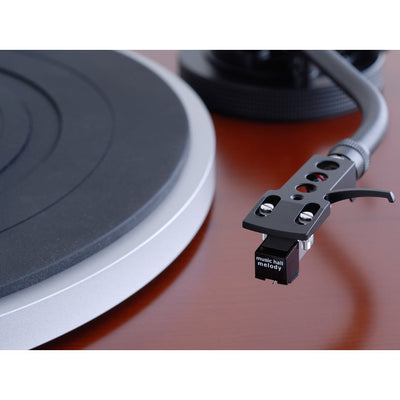

properly aligned and mounted Music Hall Melody ($75 value) moving magnet cartridge

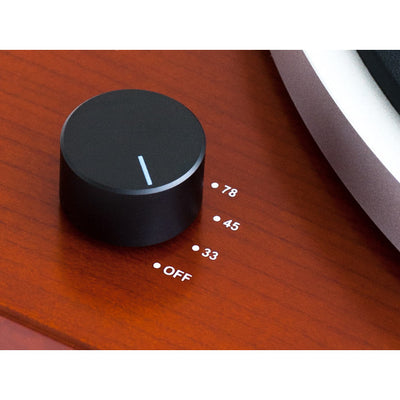

adjustable electronic speed control
special vibration damping feet

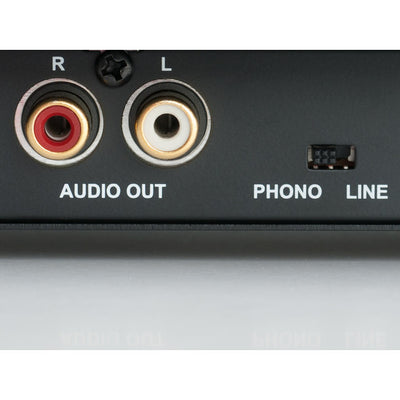

high quality gold RCA connectors with detachable phonocable included
full-size aluminum platter and special vibration damping platter mat
worldwide compatibility
excellent instruction manual
dust cover and 45 rpm adaptor
quick and easy to assemble

Specifications

General section

power supply	DC12V,2.0A universal power supply
consumption	4W
dimensions	17.1(W) x 14.5(D) x 5(H) in. 435(W) x 367(D) x 127(H) mm
weight	12lbs. \| 5.4Kg

Turntable section

type	3-speed full manual
motor	DC motor
driving method	belt drive
turntable platter	305mm dia. aluminum die-cast
speeds	33 1/3, 45, and 78rpm
wow and flutter	typical: less than 0.1% WTD at 3KHz RMS(CD-4005) limit: Less than 0.15% WTD at 3KHz RMS(CD-4005)
S/N ratio	TYPICAL: More than 65dB (DIN-B) (SS-4242) LIMIT: More than 62dB (DIN-B) (SS-4242
speed tolerance	3000Hz +/-1%(CD-4005)

Cartridge section

type	moving magnetic cartridge
stylus	diamond stylus
channel separation	more than 15 dB at 1KHz (CD-4005)
channel balance	within 2.5 dB at 1KHz (CD-4005)
phono output level	1.5~3.6 mV at 1KHz 5cm/sec (CD-4005)
line output	90-216 mV at 1KHz 5cm/sec (CD-4005)
RIAA	20Hz~20KHz: +1/-3 dB

Tone Arm section

type	static balanced S-shaped
effective arm length	230mm
overhang	15mm
offset angle	22 degrees
tracking error angle	3 degrees or less
stylus pressure adjustment method	rotation movability (1-rotation 4g)
applicable cartridge weight	5~8.5g (including headshell 15~18.5g)
anti-skating adjustment range	0~3g
arm lifter	oil damper type
height of stylus	8~10.5mm
lifter descent time	1.5~3 sec (stylus pressure: 2g)
horizontal sensitivity	less than 0.2g
vertical sensitivity	less than 0.2g
