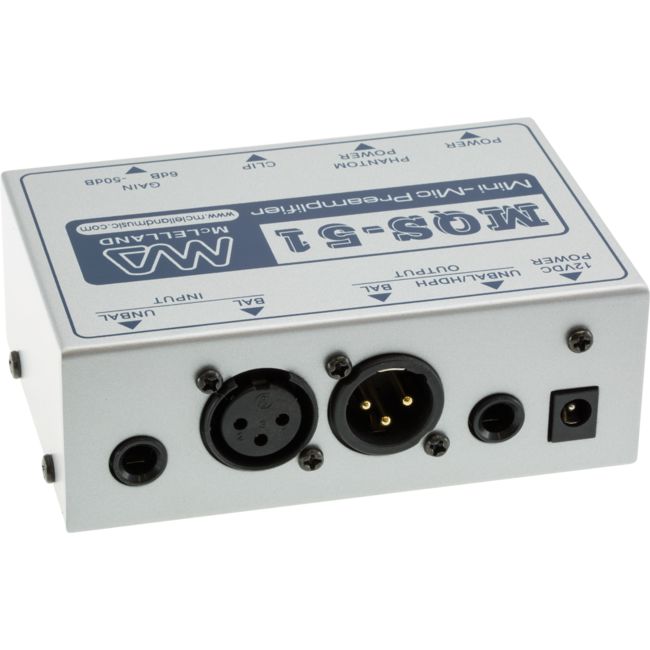

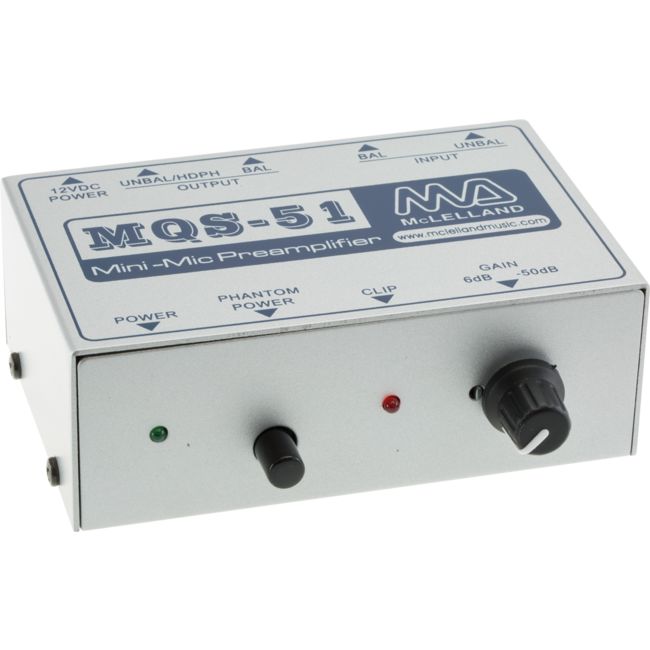

Mini Mic Preamplifier
The MQS-51 is designed to provide a simple, compact and inexpensive microphone preamplification for a variety of applications. The unit has both XLR and 1/4" Inputs and Outputs, and a simgle Gain control with a Clip indicator. Phantom powering is included for the use with a condenser microphone. The 1/4" Output is specially designed for use aseither a mono balanced output, or a stereo headphone output.The unit comes with a power adaptor.
Features
- XLR and 1/4" Inputs and Outputs
- Gain Control
- Clip LED indicator
- 1/4" output drives stereo headphones
- +36V Phantom power
Specifications
- Input Impedance: 10K ohm bal; unbalanced
- Max Input Level: +4dBV XLR (balanced) / +10dBV (unbalanced)
- Max Gain: 50dB (XLR), 44dB (6.3mm)
- Phase Shift: <10 deg. 20Hz-20kHz
- EIN: 129 dB max.
- THD: <0.01%
- IMD (SMPTE): <0.01%
- Power: 12V DC 150mA
- Size: 113mm x 73mm x 40mm
- Weight: 349g
