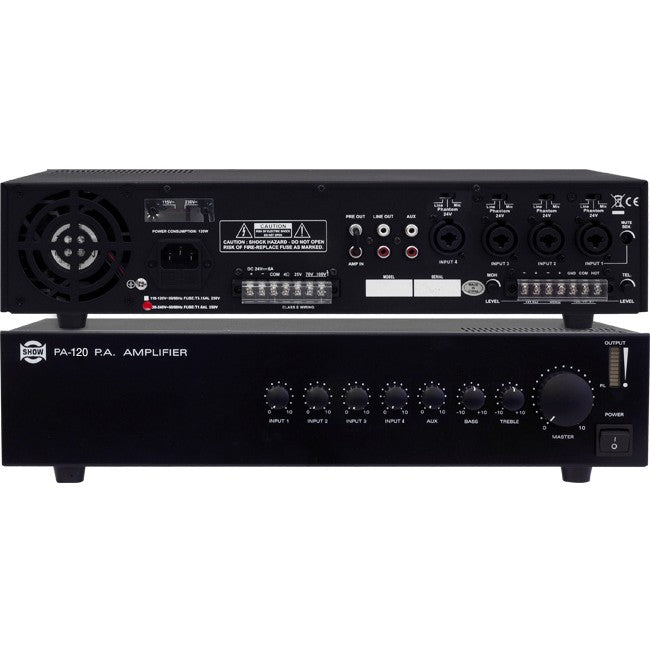

PA120 120W MULTIPLEX AMPLIFIER SHOW PA120

120W Multiplex Amplifier

Introduction

The NEW professional PA120 public address amplifier is specially designed for use in small hotels, super-markets, churched, convention halls and school more public area. Highperformance, excellent sound quality and hassle-free operation make this amplifier an easy choice for installations.

Features

Specifications:

• Power Output (at 4Ω): RMS 120W / MAX 170W

• Frequency response: 80Hz-16kHz (±3dBv)
• Power supply: AC 115V / 230V 50Hz / 60Hz switchable; DC 24V
• Input / sensitivity: Mic: -52dBv balanced; Phantom: -52dBv balanced; Line: -10dBv balanced;?AUX: -20dBv; AMP. In: 0dBv; TEL. In: -10dBv
• T. H. D.: ≤1%
• S/N Ratio : MIC≥65dB / AUX≥80dB / Phantom: ≥65dB; Line: ≥75dB
• Output (Ω): COM 4Ω
• Output (V): 25V, 70V, 100V
• Controls: 1 AUX volume control, 1 Master volume control, 2 Treble / Bass controls; 4 Input volume controls, TEL. input & Monitor volume controls
• Dimensions (WxDxH): 420 x 260 x 88mm (16.5" x 10.2" x 3.5")

• Weight (Approx.): 10.2kg (22.64 lbs)

Download the PA120 manual(614kb PDFfile)
