PFS3302 INTERFACE DISPLAY STRIPS MAX VERTICAL FITMENT 270MM VOGEL'S 43130304

PFS3302 INTERFACE DISPLAY STRIPS MAX VERTICAL FITMENT 270MM VOGEL'S 43130304

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

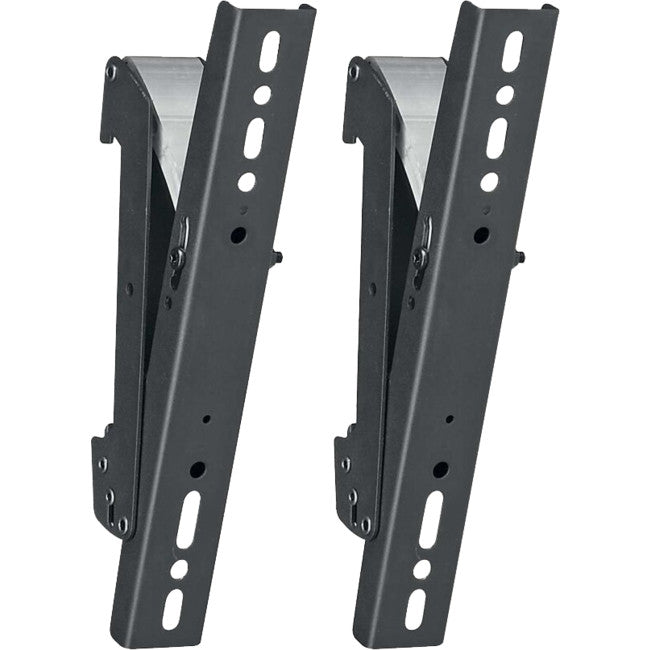

Vogel's PFS 3302 Display interface strips - tilt

The PFS 3302 interface display strips is part of the modular Connect-it system withwhich you can create your own ceiling or floor solution for medium to large sized displays.

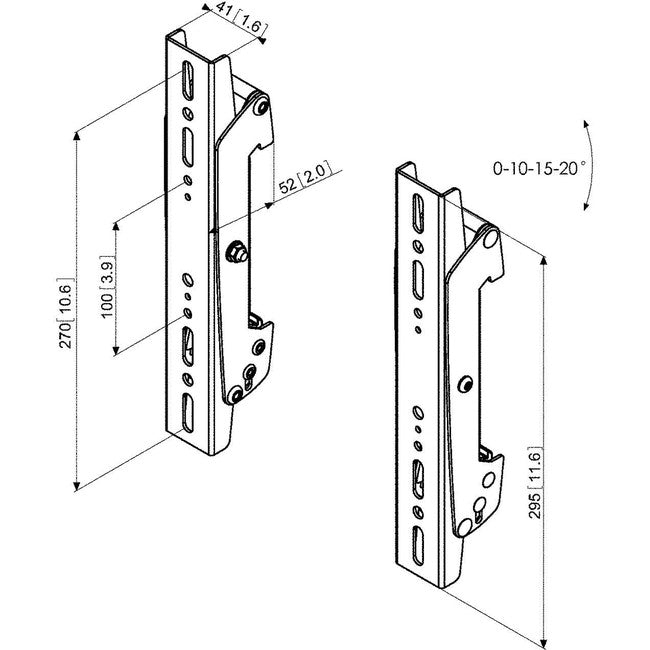

The PFS 3302 is suitable for medium to large sized displays up to 80 kg with a max. vertical fitment of 270 mm.

For creating a ceiling solution combine the PFS 3302 with a Connect-it ceiling plate, pole (PUC 25xx Series)and interface bar (PFB 34xx Series).

For creating a floor solution combine the PFS 3302 with a Connect-it floor plate/ trolley, pole (PUC 27xx Series) and interface bar (PFB 34xx Series).

The PFS 3302 can also be combined with the motorized products (PFFE 7110, PFTE 7112, PFWE 7150).

Key Features

  • Modular
  • Quick and easy installation
  • Theft prevention
  • Tilt function in steps



Specifications

  • Series
Connect-it
  • Colour
Black
  • T“£V certified
Yes
  • Guarantee
5 years
  • Tilt
Tilt up to 20°
  • Max. weight load (kg)
80
  • Min. vertical hole pattern (mm)
75
  • Max. vertical hole pattern (mm)
270
  • Length display strips / Max. fitment (mm)
295 / 270mm
