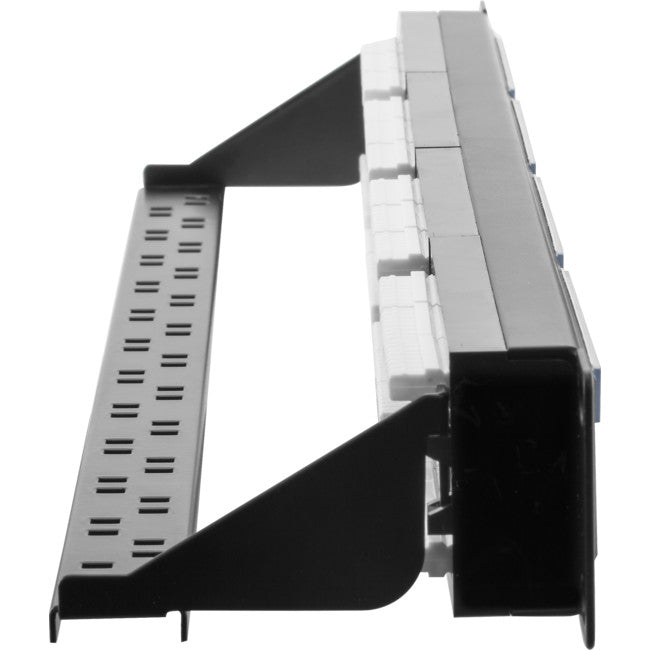

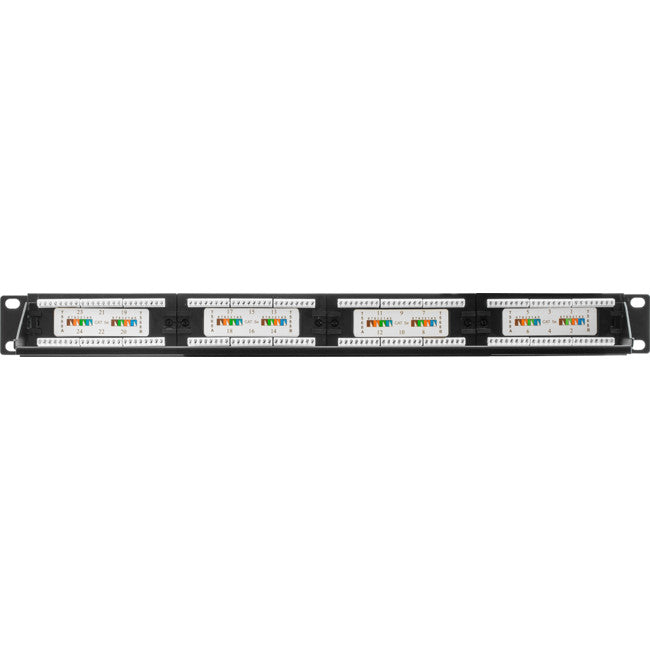

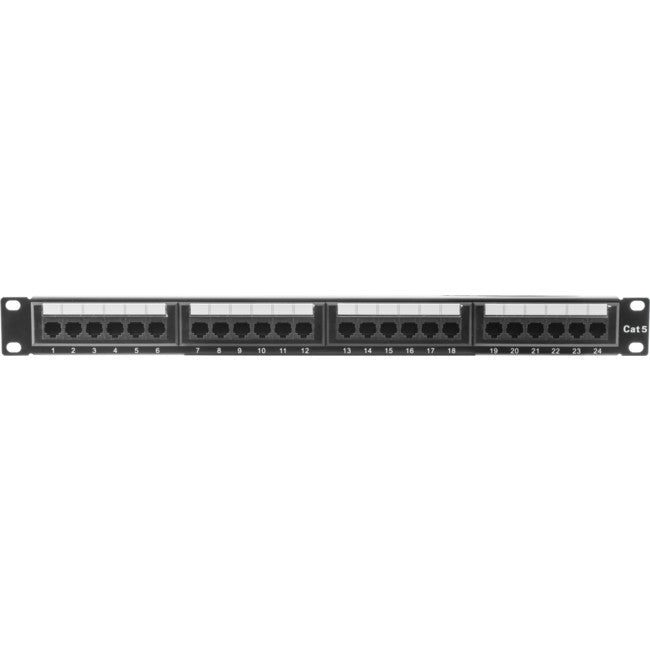

CAT5E METAL PATCH PANEL
FEATURES:
- Patch panel case, metal 1U
- RJ45 Jack
- Body: PC UL94V-0 rated.
- Colour: Black, other colours available MOQ
- Contacts: Phophor Bronze,
- 50u” Gold plated over Nickel plated in contact area.
- Tin-lead over Nickel in solder area.
- Connector:
- 110 connector body: PC UL94V-0
- Colour: Ivory
- Contact: Phosphor Bronze with Tin plated
- P.C. board: FR4, 1.6mm double side, UL94V-0
- Operation temperature: 0˚ to 80˚C
- Insertion force: 900gms for 8 contacts
- Retention strength: 7.7kgs between jack and plug
- Durability: 750 cycles contact resistance test check every 100 cycles. Insertion cycles at 20 cycles/minute max.
- Certificates: ETL verify, UL listed, ANSI/TIA/EIA-568-B.2 SO/IEC 11081 class E, FCC
