Volume Control with IR Receiver

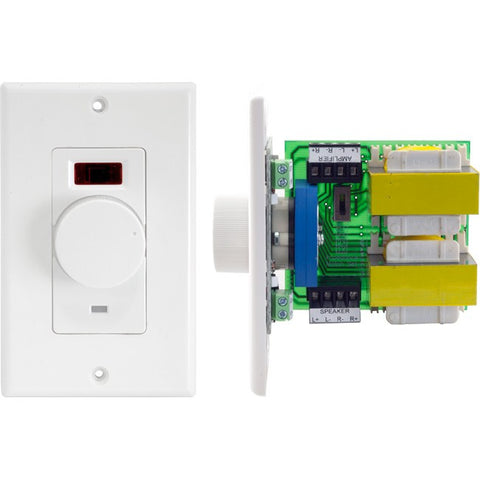

The PRO1161 is a wall mount stereo speaker-level volume control with built-in IR receiver. It connects between the speaker outputs of an amplifier or receiver and a pair of speakers.
The PRO1161 matches thes the minimum output impedance of the amplifier or receiver, in addition to adjusting the volume. Therefore it eliminates the need for a speaker selector or for impedance matching equipment.
- Impedance: Variable from 1-8 ohm
- Rotary volume control and speaker on/off
- IR receiver
- LED indicator for source component with on/off status
- Impedance matching
- Fits standard face plates
[ click for larger view ]
Specifications:
- Power handling: 300 watts max/ 100 watts RMS continuous
- Input impedance: Config. to 1x, 2x, 4x, or 8x impedance matching
- Quick connect terminals: Accepts up to 12-gauge wire
- Attenuation: 12 steps including off
- Total attenuation: 54 dB
- Frequency response: 20 Hz ~ 20 KHz ±2 dB at rated power
- Mounting: fits most single-gang junction boxes
- Dimensions: 42 (W) x 103 (H) x 103 (D) mm
- Weight: 456 g
-
IR component:
- Receiver frequency: 34 KHz to 40 KHz
- Transmit frequency: 34 KHz to 40 KHz
- Range on-axis: 55 ft. to 80 ft.
- Range off-axis: 30 ft.
- Main power: 12 V DC 31 mA max
- Status power: 12 V DC 3 mA max
- Wire requirements: 2 twisted pair, with or without shield
