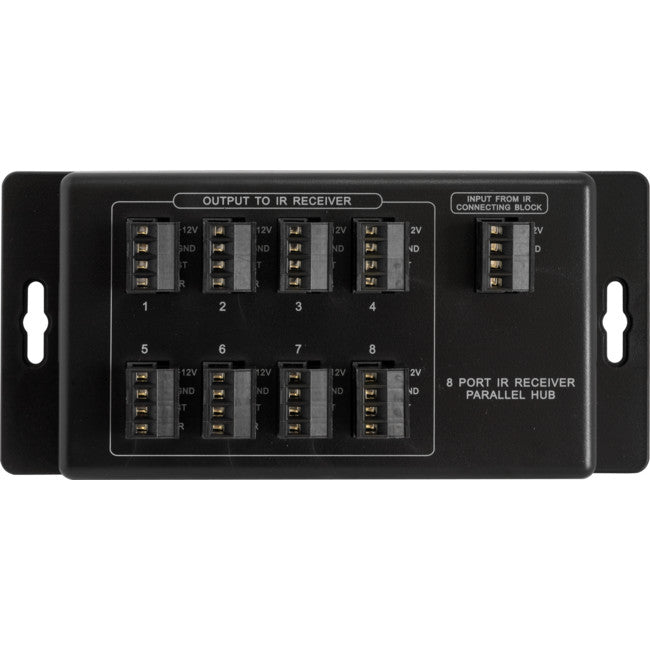

Connect up to eight IR Receivers to an IR Repeater (eg PRO1183). Design allows multiple IR Repeater Kits to be connected to multiple IR Receivers.
Features
- Connect IR Repeater Kit (PRO1183) to up to eight IR Receivers via only 4 wires
- Light weight
- Screw terminals handle wire sizes form 24 to 12 gauge
- Wall mountable
- Small size and compact
- One-in eight-out
- Large detachable terminal block (supplied) for quickand easy installation in a structured wiring cabinet
- No power supply required; takes +12VDC power from IRRepeater Kit PRO1183 and distributes it to IR Receivers
- Design allows adding extra IR Repeater kits with minimal wiring (only IR and GND wires).
- Do not connect +12V line to more than one IR Repeater to the IR Receiver Hub to avoid damage to IR Repeater
Specifications:
- Dimensions:196(L) × 92(W) × 30(H)mm
- Weight: 198g
Images
Possible wiring configuration showing extra PRO1156 Kit connected.
