PV300 300 STANDARD VISE BASE PANAVISE VICE PANAVISE PV-300

PV300 300 STANDARD VISE BASE PANAVISE VICE PANAVISE PV-300

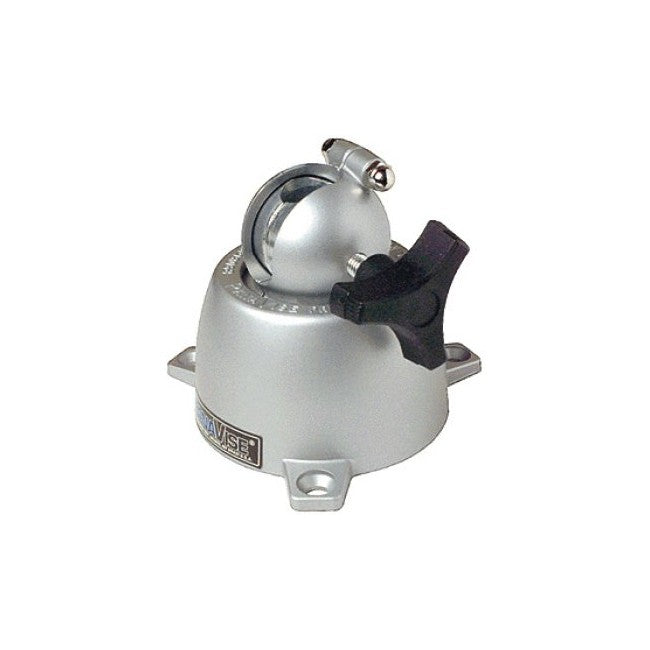

300 STANDARD VICE BASE - PANAVISE

PanaVise features a wide variety of state-of-the-art vises and work holding devices. All designed around our patented "split ball" design, which allows for positioning your work on three planes. You can "tilt (180°), turn (360°) and rotate (360°)" your work all from a single knob.

PanaVise vises and work holding devices are perfect for hobbies and crafts, industry, electronics, wood working and wood carving, small home repair and any work bench environment. Our extremely versatile vises and work holding devices have hundreds of uses only limited by your imagination. All our vises and work holding devices come with a "lifetime warranty" and are guaranteed to make any project more productive. PanaVise, "better then a third hand!"

PanaVise vises and work holding devices are designed around a series of interchangeable components. Heads, bases and base mounts. You can mix and match yourself. Or choose one of our popular pre-selected combinations. Or choose a combination and an accessory head, base or base mount to create your own custom work center that is perfect just for you.

FEATURES:

All Vise Heads are compatible with the 300 Standard Base,the 305 Low Profile Base, and the 380 Vacuum Base. A new or additional head will add extra productivity to your existing PanaVise, or start here to build your own work holding solution! All stems are 5/8" (15.9mm) in diameter.

  • Model: 300 Standard Base
  • Our most popular base!
  • Holds all regular PANAVISE heads and Circuit Board Holders.
  • The patented load control knob and exclusive split-ball feature has a range of tensions which permits moving of work to any position desired.
  • In addition, loosening of this knob reduces the load on the split-ball permitting the head to be removed from the base. This unique feature permits you to get multi-use from the one base.
  • Accepts all 300 series Heads and the PV Jr. 203 Head or any 5/8" (15.9mm) diameter shaft. Create a versatilework holding system by selecting two or three different Heads!
  • Single control knob and exclusive "split-ball" locks the head firmly in place
  • Base features 4.3125" (109.5mm) bolt circle countersunk for three 1/4" (6.3mm) flat-head screws (not included)
  • Height: 3.75" (95.2mm), Weight: 1.4 lbs. (0.6kg)
