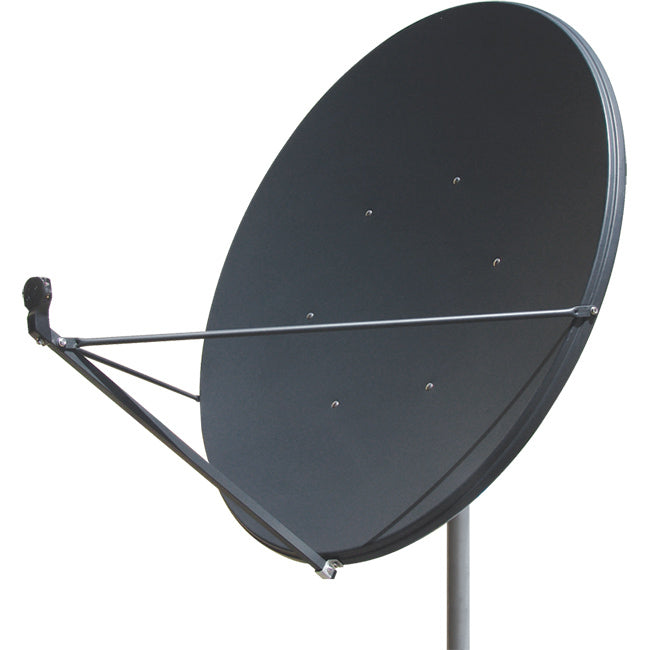

Best suited for commercial installations. The polyester based powder coating is designed for the exterior environment, salt spray, light, colour retention and is alsoweather resistant.
| Specifications | SDJ1/2 | |
| Reflector | Type | Offset |
| Offset Angle | 24.62’_x0015_ | |
| Aperture (Diameter) | Horizontal Axis:120 cm Vertical Axis:132 cm | |
| Efficiency | 75 % Min | |
| Ku-Band Gain @ 12.50 GHz | 43.32 dBi | |
| F/D Ratio | 0.6 | |
| Focus Length | 720 mm | |
| Material | Galvanised Steel | |
| Finish | Polyester Powder Coating | |
| Colour | Grey / Cool Grey / Dark Grey | |

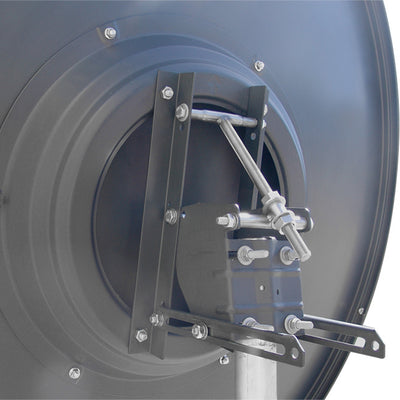

| Mounting | Mounting Type | ? |
| Adjustment Type | AZ/EL | |
| Material | Steel / Galvanised Steel | |
| Finish | Polyester Powder Coating | |
| Colour | Grey / Cool Grey / Dark Grey | |
| Elevation | 17’_x0015_ ? 90’_x0015_ | |
| Azimuth | 0’_x0015_ ? 360’_x0015_ | |
| Pole Diameter | 45 ? 76 mm | |
| Environment | Ambient Temperature | - 40’_x0015_C ? + 60’_x0015_C |
| Relative Humidity | 0 ? 100% |
