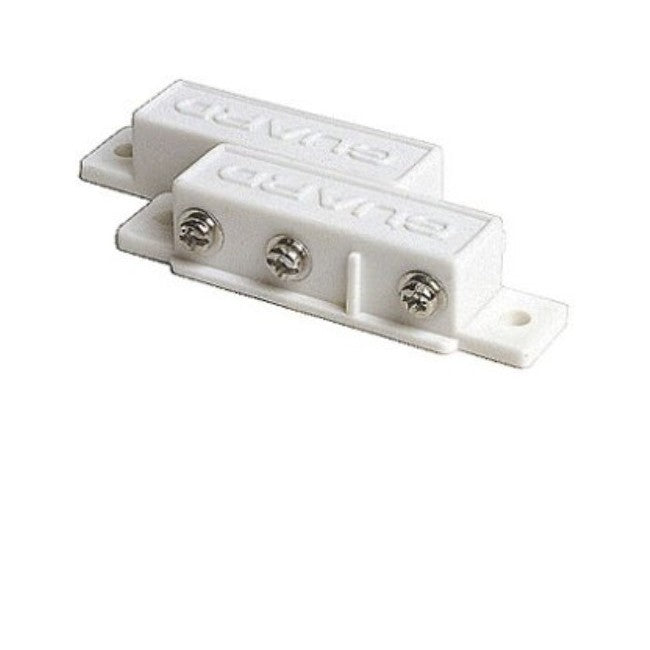

SR3 REED SWITCH WITH N/O & N/C SCREW TERMINALS MS-168 B-367

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Standard reed switch which can be set to either N.O or N.C . White plastic housing for switch and magnet
- Can be screw mounted or attached by double sided tape provided.
- Dim.: 14 x 14 x 65mm (WHL)

Specifications

• NO & NC type, Normally open & Normally close
• Operating gap: 3cm Max
• Contact R.: 150m Ohm
• Switching current: 0.25A
• Switching voltage DC: 100V
• Electrical life: 10,000,000 Cycles
• Case: ABS
