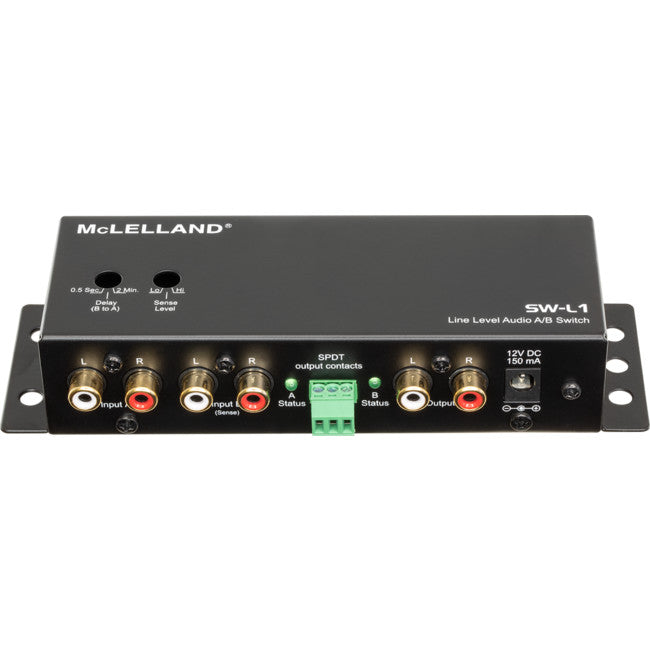

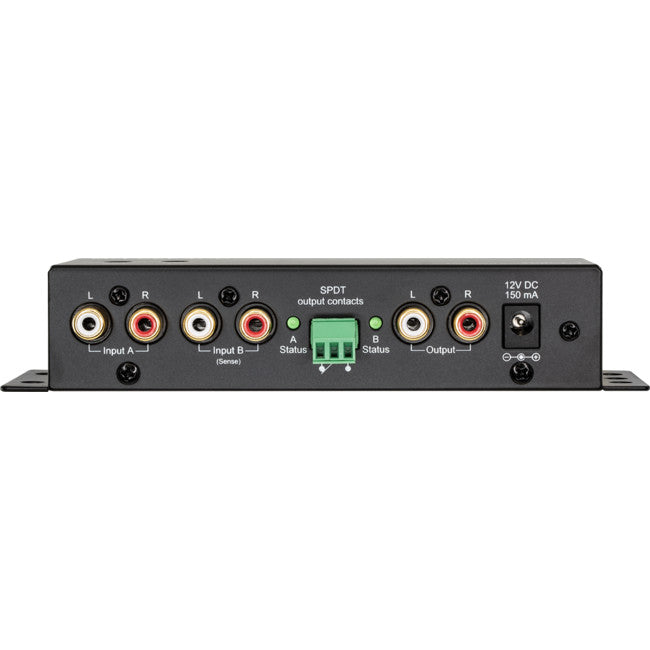

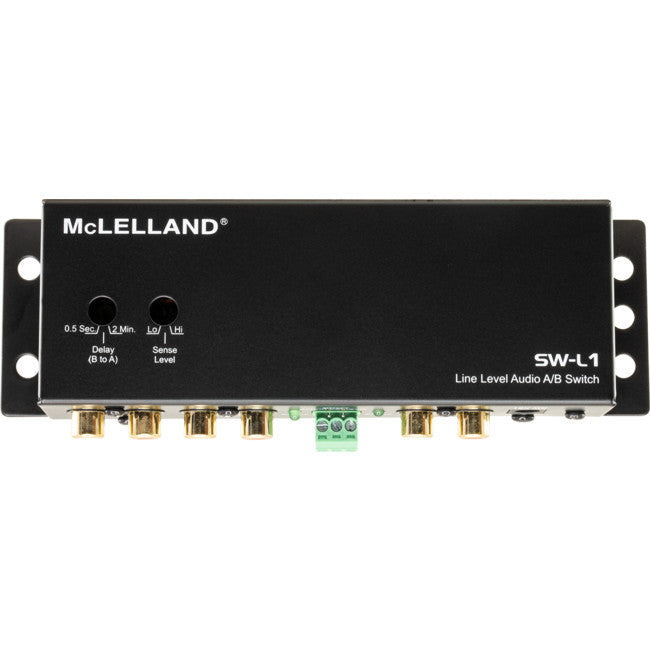

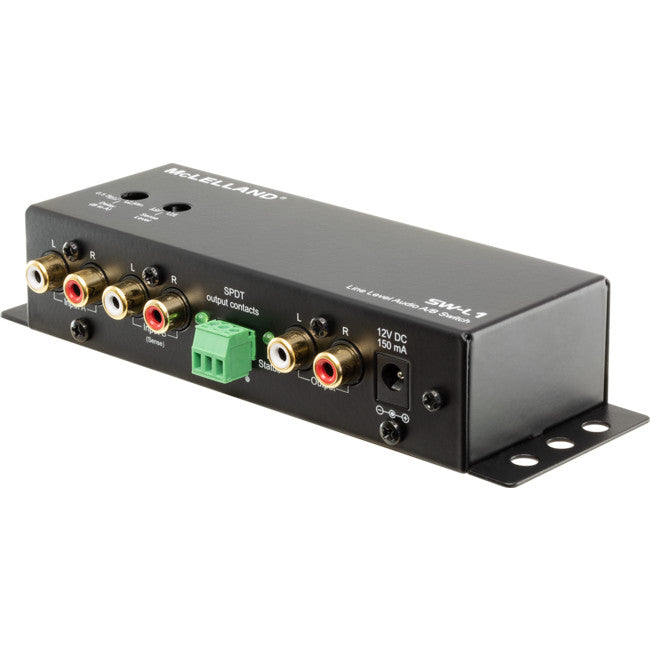

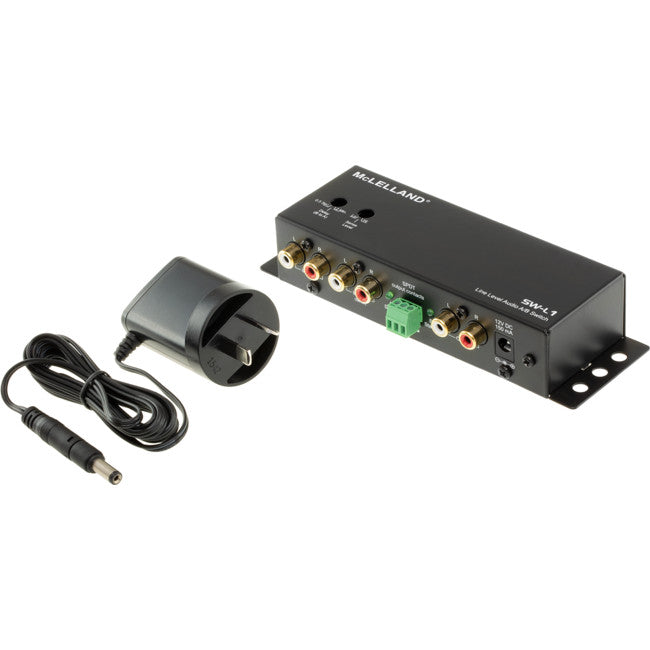

SW-L1 LINE LEVEL AUDIO AB SWITCH BOX UPTO 24V SPDT RELAY OUTPUT MCLELLAND SW-L1

SW-L1 LINE LEVEL AUDIO AB SWITCH BOX UPTO 24V SPDT RELAY OUTPUT MCLELLAND SW-L1

$99.00

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Features

•Automatically switches the signals to one power amplifier between two inputs.
•Delay Switch allows setting the Delay time from 0.5 Seconds to 2 Minutes to change the music automatically.
•Sense Level allows the adjustment of sensitivityto the desired Threshold.
•A/B Status LED indicate the music plays from Input A or Input B.
•Provides a SPDT(Single Pole Double Throw) outputcontact.
•External power supply required .
•Mounting hole for easy installation.

Specifications

•Delay Range: (0.5-2 )Sec, to 2 Min
•Sensitivity Range: 10mV to 100mV
•Dual Relays Contact Rating:24V@2A
•B Status Output Voltage: 12V DC @10mA/9VDC@100mAMax.
•Power Requirements: 12VDC@150mA
•Power Jack: 2.1mm ,center pole positive
•Dimensions: 6.5”W x 1.25”H x 2.35”D (165 x32 x60mm)
