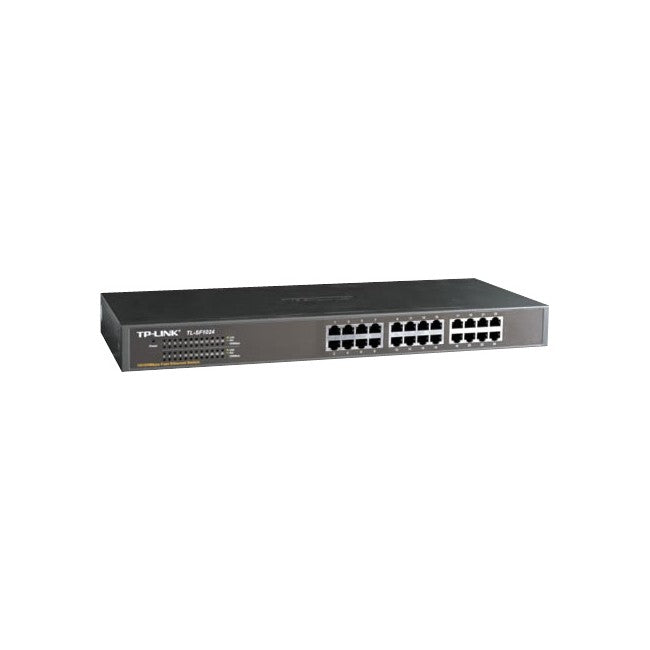

TLSF1024 24 PORT ETHERNET SWITCH / HUB DESK MOUNT 10/100M TP-LINK TP-LINK TL-SF1024

TLSF1024 24 PORT ETHERNET SWITCH / HUB DESK MOUNT 10/100M TP-LINK TP-LINK TL-SF1024

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

TL-SF1024 - 24-port Unmanaged 10/100M Rackmount Switch

TL-SF1024 24-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 24users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without a traditional hub´s collision phenomenon downgrading the performance. All ports can be the uplink (cascade) port which is provided to link to another Switch for more portsexpansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount.

FEATURES:

  • 24x 10/100M RJ45 ports.
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging (MDI/MDIX)
  • LED indicators for monitoring power, link, activity,100Mbps
  • Standard 19-inch rack-mountable steel case
  • Internal universal power supply

SPECIFICATIONS:

Standards and Protocols
 IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning andAuto-aging
 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
 4.8Gbps
MAC Address Table
 8k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
Transmission Method
 Store-and-Forward
Ports
 24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
LED Indicators
 Power, Link/Act, 100Mbps
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 17.3*7.1*1.7 in. (440*180*44 mm)
Environment
 Operating Temperature: 0℃~40℃ (32℉~104℉)
 Storage Temperature: -40℃~70℃ (-40℉~158℉)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 100-240VAC, 50/60Hz
