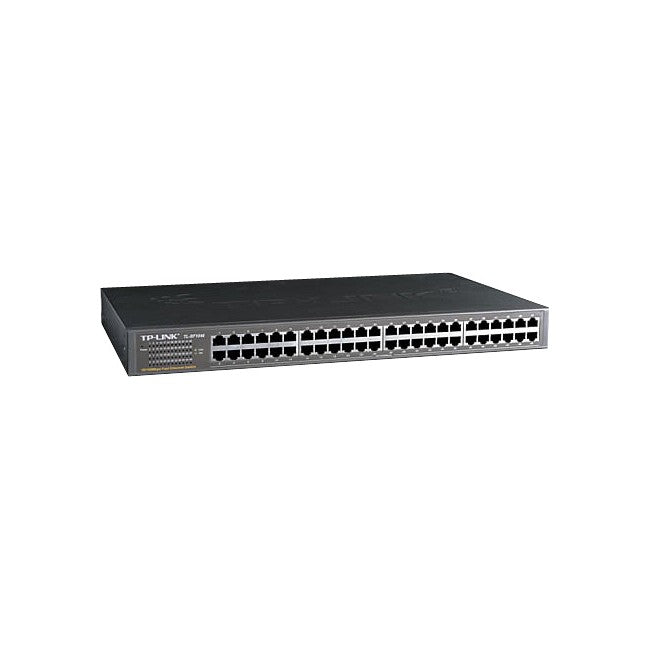

TLSG1048 48 PORT GIGABIT NETWORK SWITCH METAL RACK MOUNT 10/100/1000M TP-LINK TL-SG1048

TLSG1048 48 PORT GIGABIT NETWORK SWITCH METAL RACK MOUNT 10/100/1000M TP-LINK TL-SG1048

$399.00

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

48-port Unmanaged Gigabit Rackmount Switch - TP-LINK

The TL-SG1048 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of Offices and workgroupnetworks.

FEATURES:

  • All ports support Full/half duplex transfer mode for10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
  • Supports Auto-MDI/MDIX function
  • Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
  • Store and forward Switching scheme
  • Standard 19-inch rack-mountable steel case.

SPECIFICATIONS:

Standards and Protocols
 IEEE802.3, 802.3u, 802.3ab, 802.3x
 CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning andAuto-aging
 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
 96Gbps
MAC Address Table
 8k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
 1000BASE-T: 1488000pps/port
Transmission Method
 Store-and-Forward
Ports
 48 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators
 Power, Link/Act
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 17.3*14.2*1.7 in. (440*360*44mm)
Environment
 Operating Temperature: 0℃~40℃ (32℉~104℉)
 Storage Temperature: -40℃~70℃ (-40℉~158℉)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 100-240VAC, 50/60Hz
