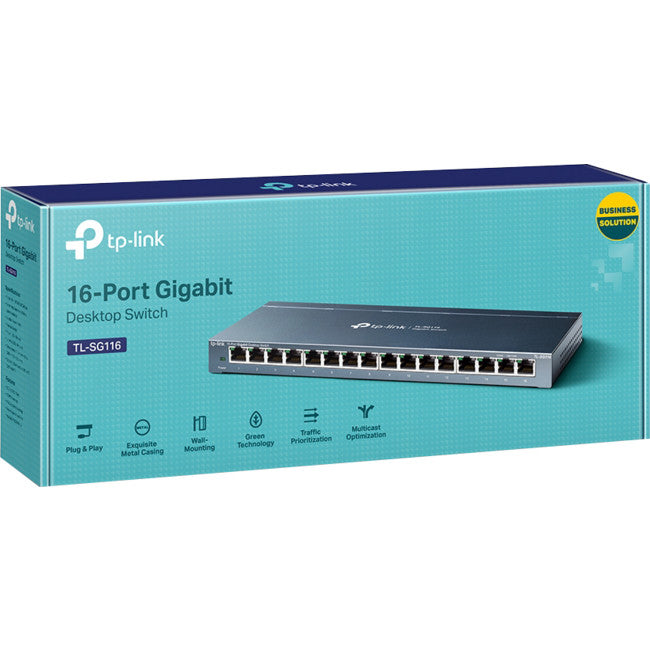

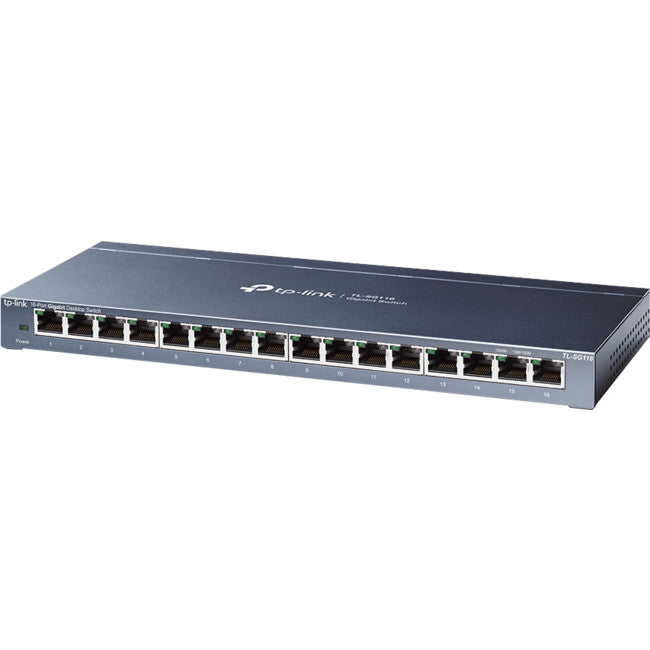

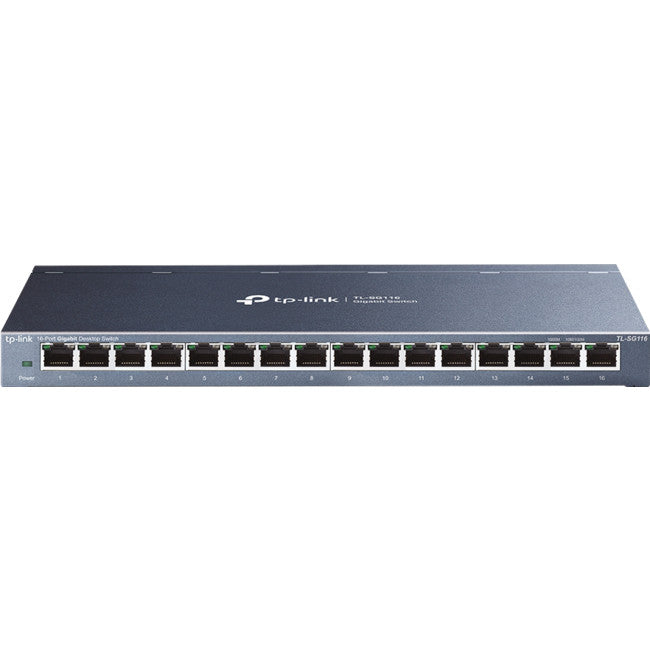

TLSG116 16 PORT GIGA DESKTOP SWITCH TP-LINK TL-SG116

TLSG116 16 PORT GIGA DESKTOP SWITCH TP-LINK TL-SG116

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

{tab Features}

16-Port Gigabit Desktop Switch

What This Product Does

The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you with an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 16 10/100/1000Mbps ports, TL-SG116 dramatically expands your network capacity, enabling instantlarge files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimisesthe Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, the fanless design ensures quiet operation.

{tab Specifications}

HARDWARE FEATURES

  • Standards and Protocols
    • IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
  • Interface
    • 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
  • Fan Quantity: Fanless
  • Power Consumption
    • Maximum: 10.0W
  • External Power Supply
    • External Power Adapter (Output: 12VDC / 1.0A)
  • LED Indicator
    • System Power
    • Link/Act indicators per port built into each RJ-45 port
  • Dimensions (W x D x H): 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)

PERFORMANCE

  • Packet Forwarding Rate: 23.8Mpps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1Mb
  • Jumbo Frame: 10KB

SOFTWARE FEATURES

  • Advanced Features
    • Green Technology
    • 802.3X Flow Control
    • 802.1p/DSCP QoS
    • IGMP Snooping
  • Transfer Method: Store and Forward

OTHERS

  • Certification; CE, FCC,RoHS
  • Package Contents
    • 16-Port 10/100/1000Mbps Desktop Switch
    • Power Adapter
    • Installation Guide
    • Rubber Feet
  • Environment
    • Operating Temperature: 0°C~40°C (32°F~104°F)
    • Storage Temperature: -40°C~70°C (-40°F~158°F)
    • Operating Humidity: 10% ~ 90%, non-condensing
    • Storage Humidity: 5%~90% non-condensing
