UAP-AC-LITE 802.11ac Dual Radio Access Point
The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high-performance wireless networks.
Dual-Radio Performance, Gigabit Speeds
The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.
Sleek, Ultra-Compact Design

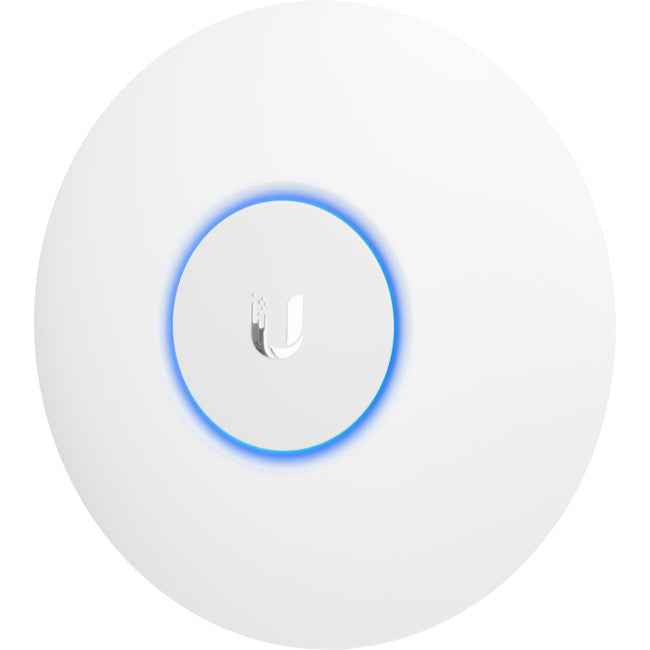

The UniFi AC Lite AP features a cleaner design in a reduced footprint – half the size compared to the standard UniFi AP.
Designed for Optimal RF Performance: The newly redesigned UniFi Controller optimizes RF performance.
Scalable Enterprise Wi-Fi Management
The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control planeallows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
{tab Specifications}
| UAP-AC-LITE | |
| Dimensions | 160 x 160 x 31.45 mm |
| Weight | 170 g |
| With Mounting Kits | 185 g |

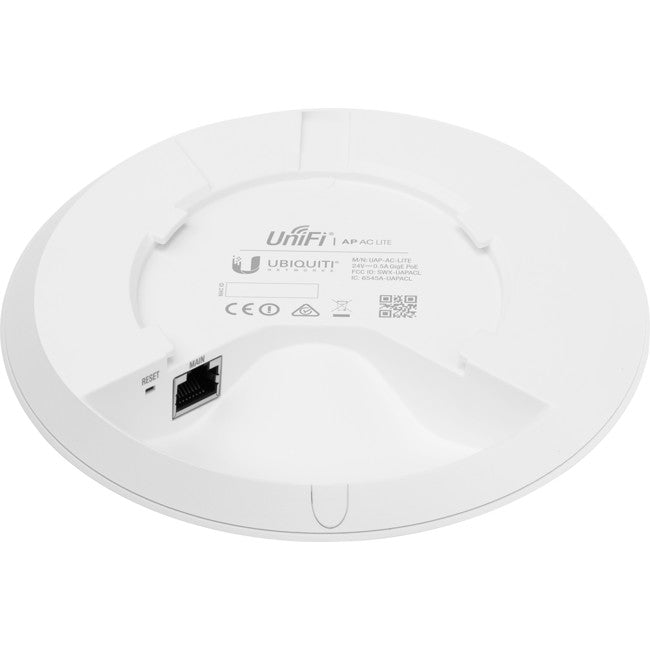

| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Buttons | Reset |
| Antenna | (2) Dual-Band Antennas, 3 dBi Each |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (24V),(Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter* |
| Maximum Power Consumption | 6.5W |
| Maximum TX Power |
|
| 2.4 GHz: 20 dBm | |
| 5 GHz: 20 dBm | |
| BSSID | Up to four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |

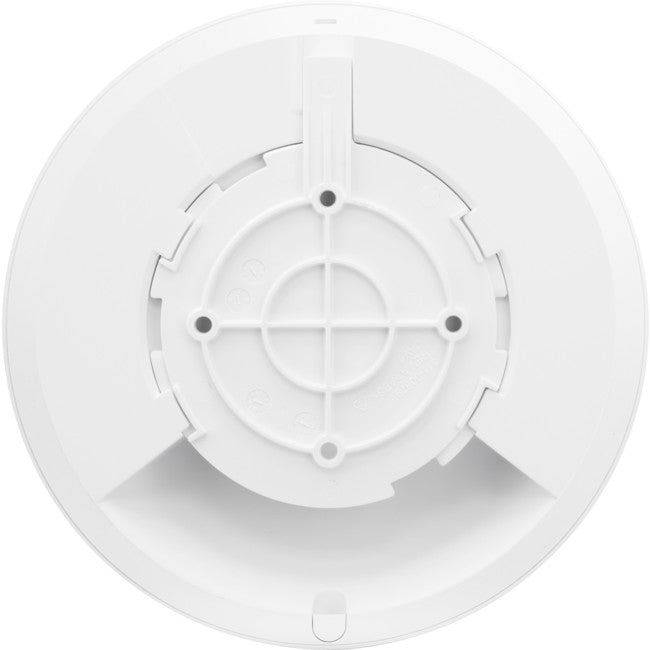

| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70°C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| * Only the single-pack of the UAP-AC-LITE includes a PoE adapter. | |
| UAP-AC-LITE | UAP-AC-LR | UAP-AC-PRO | UAP-AC-HD | UAP-nanoHD | |
| Dimensions | 160x32 mm | 176x43 mm | 197x35 mm | 220x48 mm | 160x33 mm |
| Environment | Indoor | Indoor | Indoor/Outdoor | Indoor/Outdoor | Indoor |
| 2.4 GHz Speed | 300 Mbps | 450 Mbps | 450 Mbps | 800 Mbps | 300Mbps |
| 5 GHz Speed | 867 Mbps | 867 Mbps | 1300 Mbps | 1733 Mbps | 1733 Mbps |
| PoE Mode | 802.3af/A PoE & 24V PoE | 802.3af/A PoE & 24V PoE | 802.3af/at PoE/PoE+ | 802.3at PoE+ | 802.3af PoE |
| Ports | (1) 10/100/1000 Ethernet | (1) 10/100/1000 Ethernet | (2) 10/100/1000 Ethernet | (2) 10/100/1000 Ethernet | (1) 10/100/1000 Ethernet |
| MU-MIMO | ✖ | ✖ | ✖ | ✔ | ✔ |
| Skins | ✖ | ✖ | ✖ | ✖ | ✔ |
