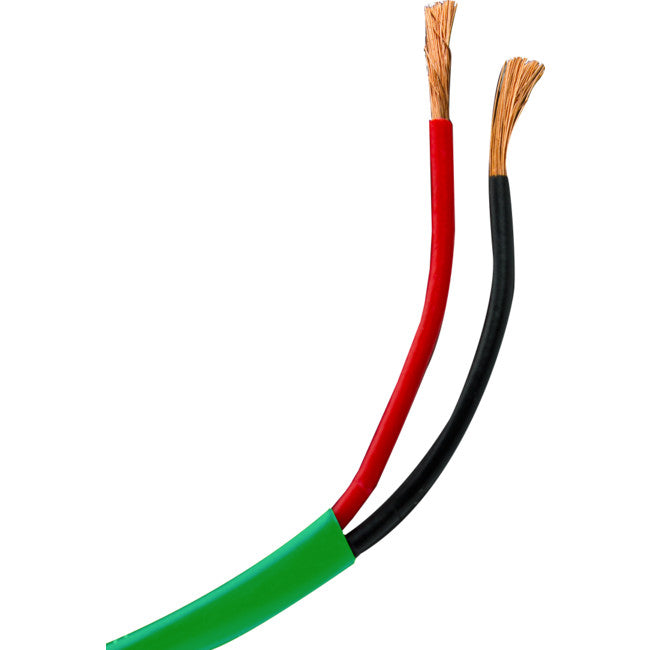

UCA142GNBUR/1M 2 CORE BURIAL SPEAKER CABLE-1M 14 GUAGE - GREEN JACKET UNIFIED COPPER UC-A142GN500-BUR

UCA142GNBUR/1M 2 CORE BURIAL SPEAKER CABLE-1M 14 GUAGE - GREEN JACKET UNIFIED COPPER UC-A142GN500-BUR

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

Introducing Unified Copper installation cables by TruAudio, USA.

Introducing Unified Copper installation cables by TruAudio, USA

UC-A142GN500-BUR -14-2, 14AWG, burial, 2 conductor, stranded, bare copper, class 3 & FT4, rated for audio applications

Quality speaker cabling that offers installation ease, superior technology and fantastic value for money.

UC Cables are low-loss speaker cables available in multiple gauge thickness, using high strand oxygen free copper inside a superior low capacitance polypropylene dielectric.

This results in low signal loss and great audio performance.

A durable box design, with large mouth opening allows fortangle free, easier cable pulls.

All cables come with sequential meter markings counting down from 152m.



  • Conductors
2
  • Guage
14
  • Jacket Colour
Green
  • Cable Thickness
6.6mm
  • Use
Burial



Description

  • Rated Voltage
300v
  • Rated Temp (C)
60 C
  • Product Standard Certification
UL444 (CMR), Passes UL1666 Flame Test, RoHS Compliant
  • Flame Test
FT4
  • Application
Designed for underground installations, featuring a moisture resistant cable jacket paired with water blocking tape. Class 3 and Class 2 circuits.
  • Reference Standard
UL13



Performance

Electrical Characteristics
  • Max Conductor Resistance (O/KM)
8.28
  • Voltage
300V RMS
  • Temperature (C)
-15 ~ 60 C
  • Min. Insulation Resistan ce (O/KM)
5000M
  • Dielectric Strength
1.6KV / 1 Minute
  • Nom. Capacitance Between Conductor
30 PF/ft @1 KHz
  • Nom. DC Resistance per Conductor @ 20C
.273O / 1, 000 ft .




Construction

  • Conductor
Stranded Bare Copper

Component


  • AWG
14
  • Construction(+/-0.008mm)
0.16
  • Stranded Dia (=/-0.05mm)
2.05

Insulation


  • Insulation Material
Polyvinyl/Polypropylene
  • Nom. Thickness (mm)
0.5
  • Insulation Dia. (+/-0.05mm)
2.55
  • Ripcord
Nylon Thread

Jacket


  • Jacket Material
PVC
  • Nom. Thickness (mm)

0.6

  • Outter Dia. (+/-0.10mm)
6.6
  • Waterproof tape
Yes

Insulation /Conductors Colors


  • Componet
1. Red, 2. Black
  • Jacket Colour
Green



Compliance

  • CL3 FT4

National Electrical Code: Ar ticle 800
National Electrical Code: Ar ticle 725
