DM41 COMPACT 2-WAY 15W 100V SPEAKER BROAD DISPERSION RCF DM41

RCF DM41 2 WAY COMPACT SPEAKER

Built-in multitap transformer for constant voltage system and body in self-extinguishing composite material.

The RCF DM 41 is a compact two way speaker designed forconstant voltage systems.

The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications.

Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side.

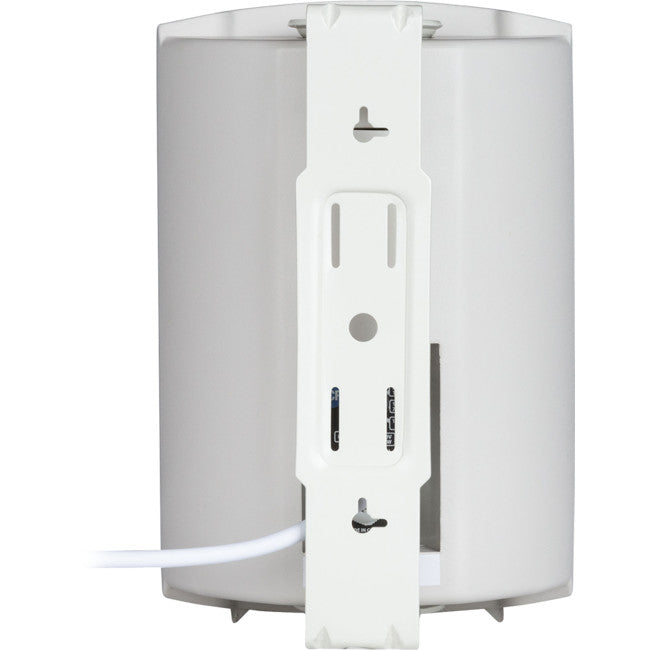

The enclosure includes a protective perforated grille and an accessory for the wall mounting.

Applications:

• Music applications
• Audio visual applications
• Restaurants
• Places of worship
• Recreational facilities
• Shopping malls
• Pubs
• Outdoor applications

Features:

• 3.5" woofer with mylar cone 1" tweeter
• Music power/RMS: 30 W/ 15 W
• Built-in multitap transformer for constant voltage system
• Body in self-extinguishing composite material
• IP55 protection, suitable for outdoor use
• Adjustable mounting accessory included
• Each model can be connected to either a 100 V constant voltage line or a low impedance amplifier output

Specifications:

• ACOUSTICAL:
• Type of speaker: Compact two-way
• Frequency Response: 100 Hz “‡ 20 kHz
• Max SPL @ 1m: 102 dB
• Horizontal coverage angle: 180°
• Vertical coverage angle: 170°
• Power Handling: 15 W RMS
• Peak Power Handling: 30 W PEAK
• System Sensitivity: 87 dB
• Impedance: 8 Ω
• Protections: IP 55
• Crossover frequencies: 2.5 Hz
• TRANSDUCERS:
• Speaker: 3.5"
• Tweeter: 1"
• INPUT SECTION:
• Input connector: 2 conductor cable
• Constant voltage: 100 V, 70 V
• Power Selection: 15 - 10 - 5 - 2.5 W (100V)
• CABINET:
• Hardware: Body in self-extinguishing composite material
• Colour: White ivory
• Grille: Steel
• PHYSICAL:
• Height: 197 / 7.75 mm/inch
• Width: 130 / 5.11 mm/inch
• Depth: 115 / 4.52 mm/inch
• Net weight: 1.72 / 3.79 kg/lbs
