DM61 6

DM61 6" 2-WAY 100V - 25 WATT BROAD DISPERSION RCF DM61

RCF DM61 2 WAY COMPACT SPEAKER

IP55 protection which is suitable for outdoor use with body in self-extinguishing composite material.


The RCF DM 61 is a compact two way speaker designed forconstant voltage systems.

The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications.

Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side.

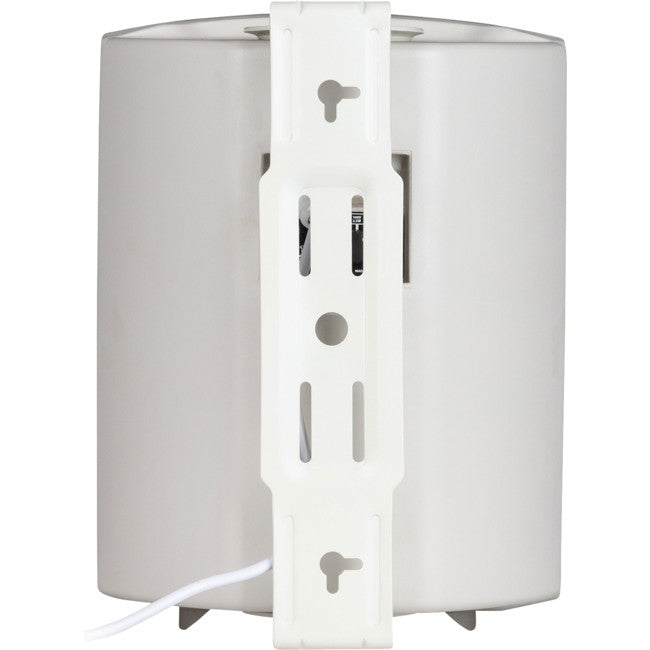

The enclosure includes a protective perforated grille and an accessory for the wall mounting.


Applications:
  • Music applications
  • Audio visual applications
  • Restaurants
  • Places of worship
  • Recreational facilities
  • Shopping malls
  • Pubs
  • Outdoor applications
Features:
  • Woofer 6" with mylar cone tweeter
  • Program/rated power: 50/25W
  • Built-in multitap transformer for constant voltage system
  • Body in self-extinguishing composite material
  • IP55 protection, suitable for outdoor use
  • Each model can be connected to either a 100 V constant voltage line or a low impedance amplifier output
Specifications:
  • ACOUSTICAL:
    • Type of speaker: Compact two-way
    • Frequency Response: 100 Hz “‡ 20 kHz
    • Max SPL @ 1m: 106 dB
    • Horizontal coverage angle: 120°
    • Vertical coverage angle: 140°
    • Power Handling: 25 W RMS
    • Peak Power Handling: 50 W PEAK
    • System Sensitivity: 89 dB
    • Protections: IP 55
    • Crossover frequencies: 6 Hz
  • TRANSDUCERS:
    • Speaker: 6"
    • Tweeter: 1"
  • INPUT SECTION:
    • Input connector: 2 conductor cable
    • Constant voltage: 100 V, 70 V
    • Power Selection: 25 - 15 - 10 - 5 W (100V)
  • CABINET:
    • Hardware: Body in self-extinguishing composite material
    • Colour: White ivory
    • Grille: Steel
  • PHYSICAL:
    • Height: 289 / 11.37 mm/inch
    • Width: 216 / 8.5 mm/inch
    • Depth: 177 / 6.96 mm/inch
    • Net weight: 3.98 / 8.77 kg/lbs
