Features:
- Automatically adapt input voltage DC12V-24V
- Input standard DMX512 signal, 3-digital-display shows DMX address code.
- 3 channels output: 4096 greyscales each: logarithmic dimming, lamplight soft and stable without strobe flash.
- DMX Master mode, Slave mode available
- 8 colour changing modes and 10-speed scales in master mode.
- Indicator of the DMX512 signal receiving status.
- Wrong wiring protection at DMX port. Over-current protection and short circuit protection.
- Power loss memory function.
Specifications:
- Input Voltage: DC12V - DC24V
- Max Load Current: 5A/CH x3
- Max Output Power: 180W (12V) / 360W (24V)
- Grey Scale: 4096 levels x3
- Input Signal: DMX512/1990
- Output Signal: Constant Voltage PWM x3
- Decode Channel: 3CH
- DMX512 Socket: Terminal Block

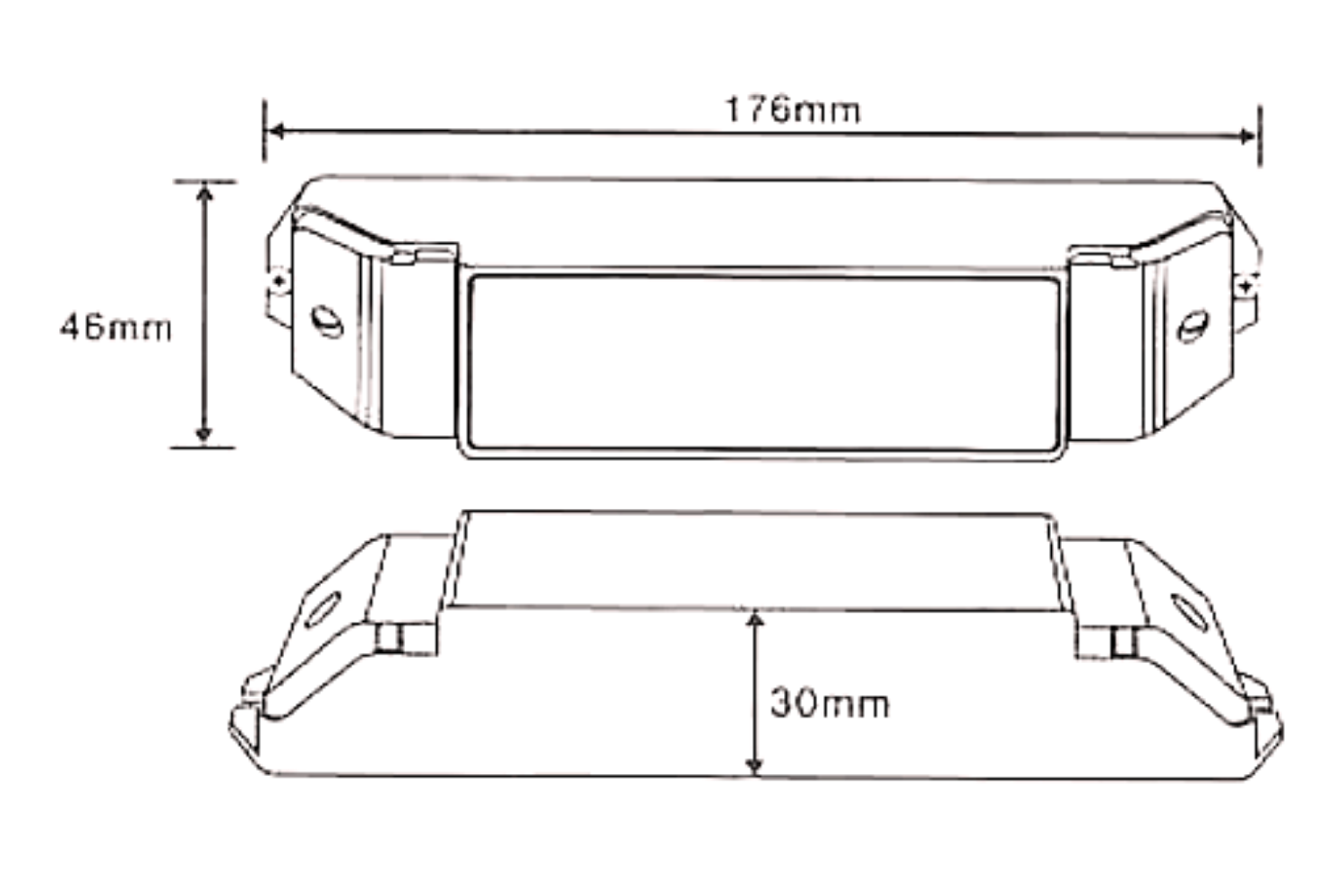

- Dimension: L176 x W46 x H30mm
- Weight: 170g
