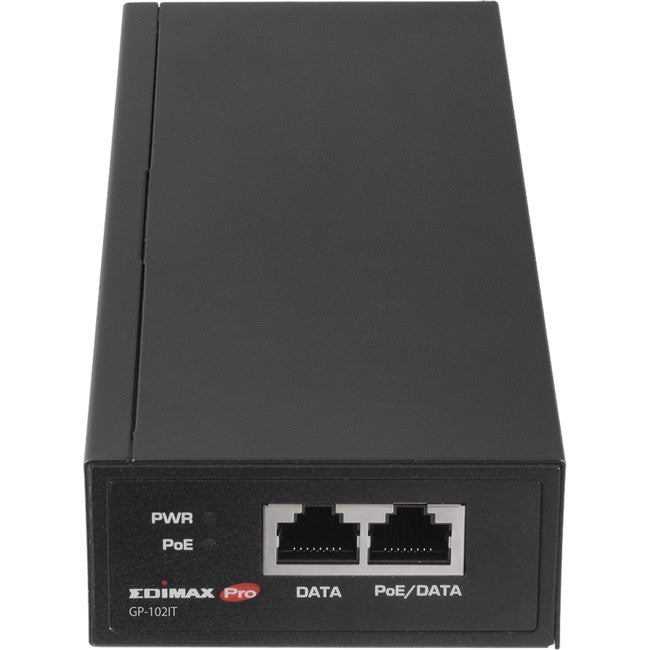

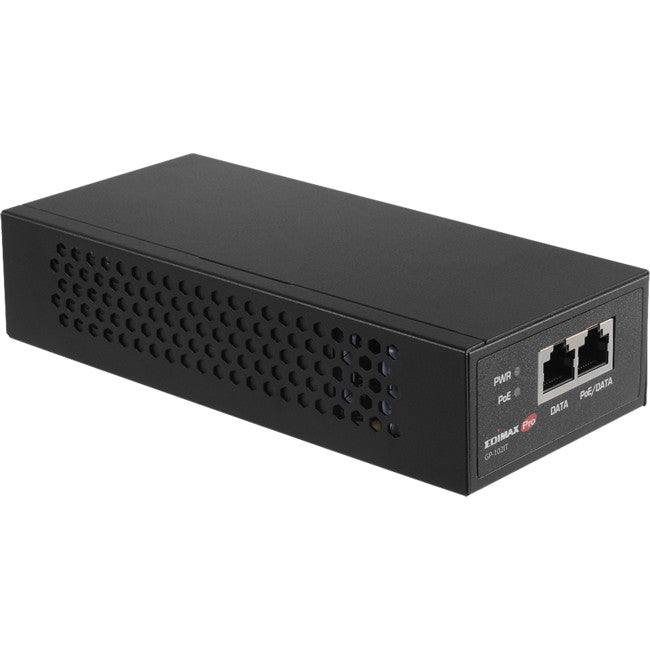

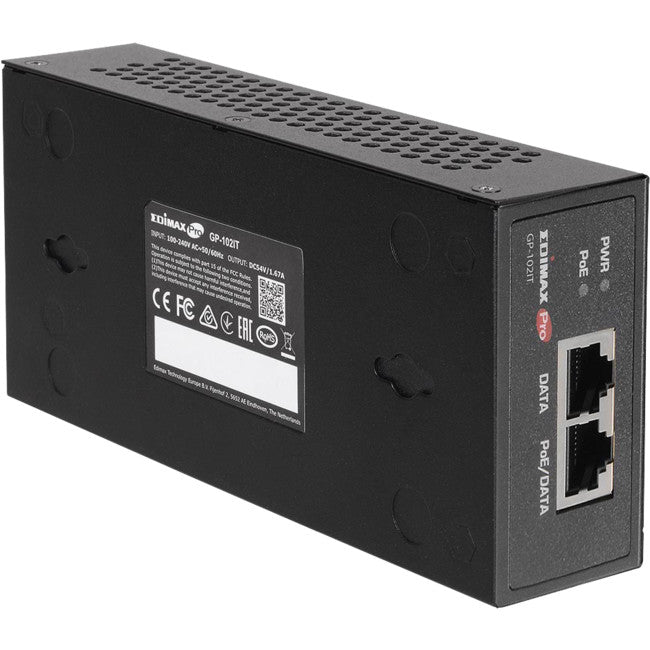

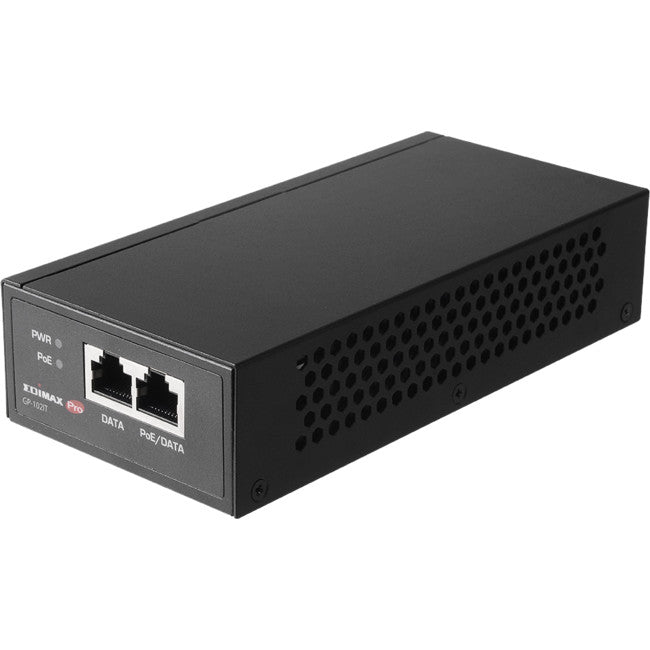

GP102IT GIGA POE++ INJECTOR 60W 802.3BT EDIMAX NWE-GP-102IT

IEEE 802.3bt Gigabit 60W PoE++ Injector

Cost Efficiency with PoE++ Supported up to 60W Adding the capability of IEEE 802.3af/at/bt Power over Ethernet to a non-PoE Ethernet switch or router to supply the transmission both power up to 60W and data at the same time to the PoE-enabled devices where power outlet is unavailable.

Easy Plug & Play, Flexible Wall-Mount Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration required.

Reliable Power SupplyFeaturing PoE short circuit protection and over circuit protection to safeguard network devices and protect against damage.

PoE Application ScenarioWith the PoE++ Injector, the data and power are transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling.

• IP Surveillance IP surveillance camera is now ubiquitous PoE supported with only one LAN cable which enables fast deployment and easy repositioning for home, office
• Wi-Fi Coverage Access points, installed on a wall or ceiling where AC outlets are unreachable, are commonly PoE compatible to allow flexible deployment for best Wi-Fi coverage.
• VoIP Conference For the VoIP phones, there's no need to support desktop phones with additional power supply as power is transmitted along with data through PoE technology.
• Other PoE Devices Other PoE-enabled devices such as RFID readers, access controls, thin clients, alarms or sensors, benefits with easy and cost saving installation even when it is away from AC outlets.

Power Your PoE DevicesComplies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 60W.

POE comparison

• POE 80233af, up to 15.4W. 802.11n access point, Biometric access point, IP phone, Thin client
• POE 802.3at, upt o 30W. 802.11n Hi power Access point,Alarm System, PTZ/speed dome cam, Video IP phone, RFID reader
• POE 802.3bt, up to 60W. 802.11ac/ax access point, Access control, information kiosk, Laptop computer, Nurse call, Point of sales reader PTZ/Speed dome cameras

APPLICATION DIAGRAM The Edimax AI-2004W is embedded with the hardware security chip, not only does it provide high-security protection on data transmissions but also solve security risk from malware attacks from viruses or malicious software over the IoT connection.

{tab Specifications}

HARDWARE ?
Ports	1 x RJ-4510/100/1000Base-T input ports 1 x RJ-45 10/100/1000Base-T PoE output ports
LED Indicators	AC Power (PWR) PoE Power
Power Input	100-240V AC, 50-60Hz,1.5A
Mounting	Desktop/Wall
Housing	Metal
Fan	Fanless
Dimension	73(W) x 154(D) x 36(H)mm
Weight	568g
POWER OVER ETHERNET
Standard	IEEE 802.3af (PoE) IEEE 802.3at (PoE+) IEEE 802.3bt (PoE++)
Power Output	DC 54V/1.67A, up to 60W
Pin Assignment	1/2, 3/6 for IEEE 802.3at/af 1/2, 3/6 and 4/5, 7/8 for IEEE 802.3bt 60W PoE++ power
Short Circuit Protection	Yes
Over Circuit Protection	Yes
PoE PD Auto Detection	Yes
OTHERS
Standard	IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3af Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus (PoE+) IEEE 802.3bt 4-Pair Power Over Ethernet Type 3
Certification	CE, FCC
Environmental Condition	Operating Temperature: 32~104°F (0~40°C) Storage Temperature: -4~158°F (-20~70°C) Operating Humidity: 10~90% (NonCondensing) Storage Humidity: 5~90% (NonCondensing)
Package Content	Injector Quick Installation Guide Power Cord Robbert Pads ?Screws
