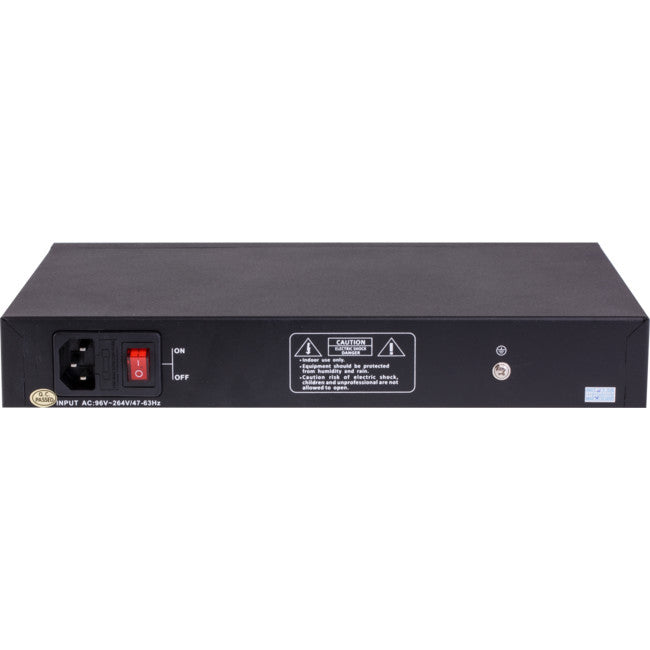

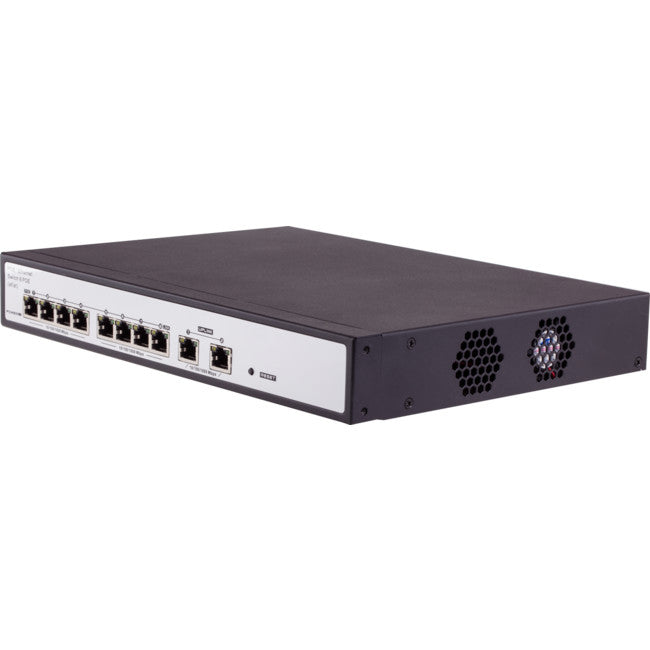

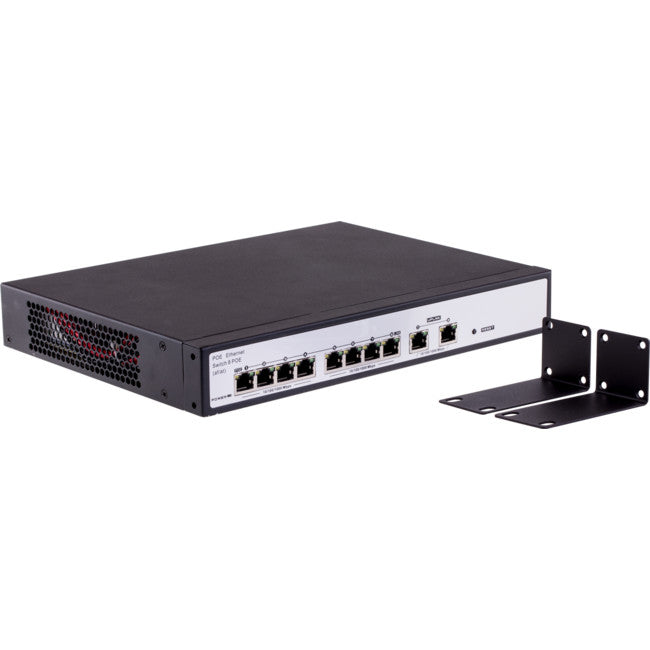

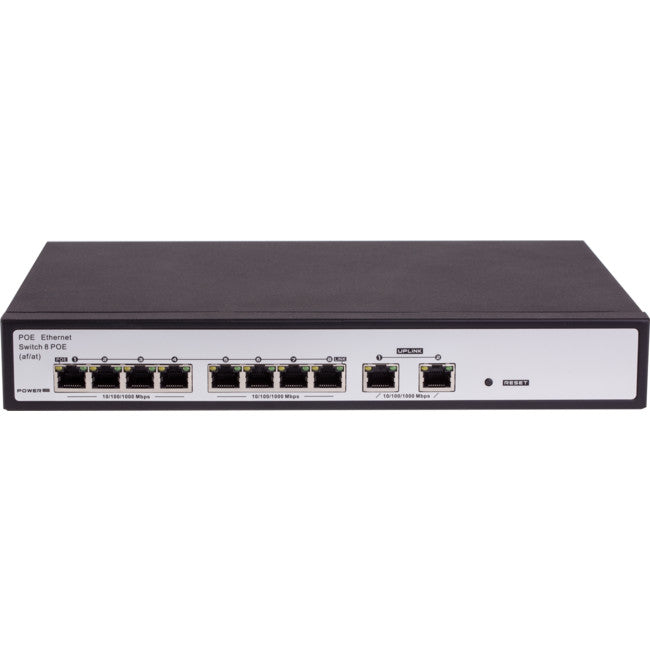

8-Port 10/100Mbps IEEE 802.3af/802.3at PoE Switch
POE08265 is specialized unmanaged PoE switch designed for video surveillance and network project system, etc. It provides 8 x 100Mbps Ethernet ports and 2 x 1000Mbps combo uplink port (2x10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port), can effectively prevent whole system from broadcast storm so that make the data transfer more safe.
This general network switch and PoE network switch.can meetcustomers’ general demands. PoE network switch with PoE function, designed for high-definition network cameras’ internet access. It provides 8 100Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.
Model | POE08265 | |
Power Supply | Power Supply Mode | Power Adaptor |
Voltage Range | DC 48~56V | |
Power Consumption | The device<8W | |
Network Port Parameter | Network Ports | 1~8 Ethernet Port:10/100/100Mbps |
Transmission Distance | 1~8 Ethernet Port:0-100m | |
Transmission Media | 1~8 Ethernet Port:Cat5e/6 standard UTP cable, | |
PoE Agreement | IEEE802.3 af/at standards | |
PoE Power Supply Mode | End-span method | |
PoE Power Supply Wattage | Each port=30W,Whole device<260W | |
Network Switch Specification | Network Standard | IEEE802.3,IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z |
Swap Mode | Store-and- forward | |
Data-Caching Mechanism | 1M | |
MAC Address List | 4K | |
Status Indicators | Power Indicator Light | One power light (red) |
Optical Fiber Port Indicator | One fiber link indication light ( green), Green light keeps on when the fiber port is well connected; Blinking when transceiver data | |
FE Uplink Port | LED (Green): On, port is link on Off, port is link down;LED(Yellow):on when link speed is 1000M,Off when link speed is 10/100M Blink when transceiver data, | |
PoE Indicator | 8 PoE indicator light(yellow) | |
PoE Network Port LED | 1~8 port ( green lighton RJ45 jack) Keeps on when normally connected, Blinking when transceiver data | |
Reset Indicator | 1 restart indication light (green), light on when press the button | |
Vlan Indicator | One green indication light | |
Button/ Switch | Reset Button | One button. Whole machine will restart while press the button |
Vlan Switch | One, slide switch to “ON” + press restart button, Vlan function opens | |
ProtectionLevel | Surge Immunity | Level 3, executive standard:IEC61000-4-5 |
Electrostatic Protection | 1a touch electric discharge: level 3 | |
Operating Environment | Working Temperature | 0~55 degree |
Storage Temperature | -40~70 degree | |
Humidity(non-congeal) | 0~95% | |
MechanicalAttributes | Dimensions (L*W*H) | 300mmx222mmx44mm |
Color | Black | |
Weight | 1Kg | |
Reliability | Mean time between failures (MTBF) | >50000h |
