If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not work with standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid CAT6 cable.
Most of the pre-made CAT5/6 leads on the market are stranded cable not solid.

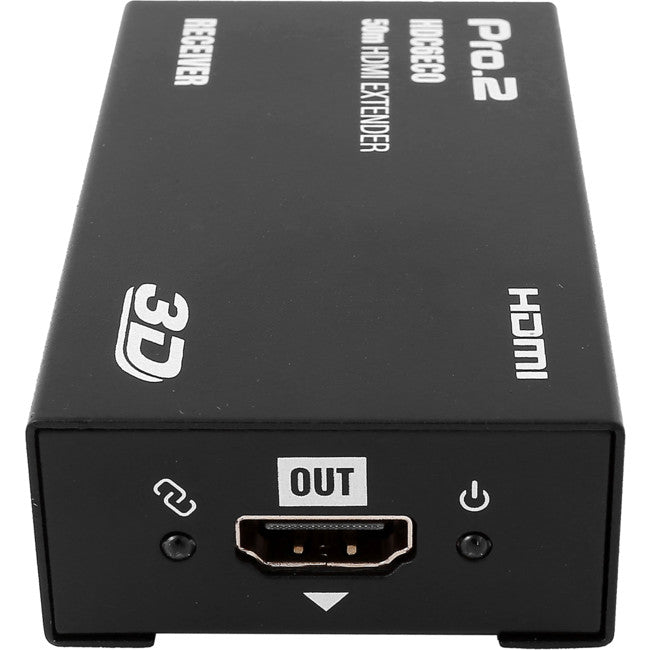

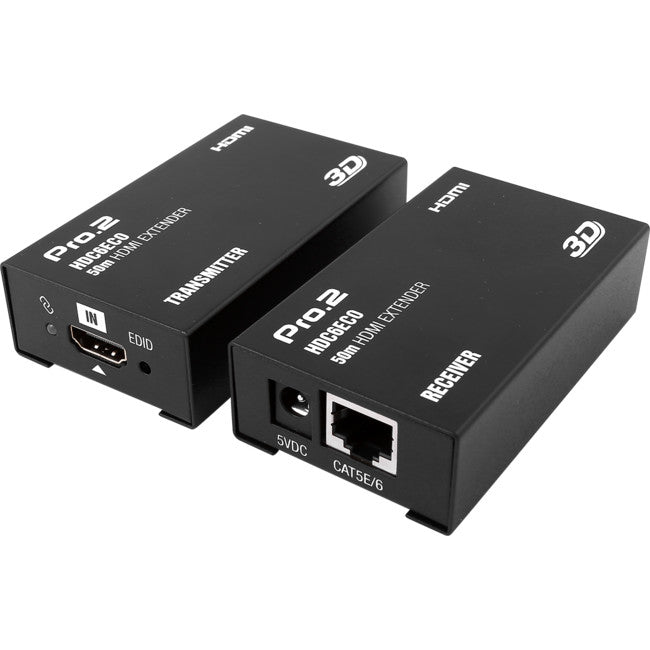

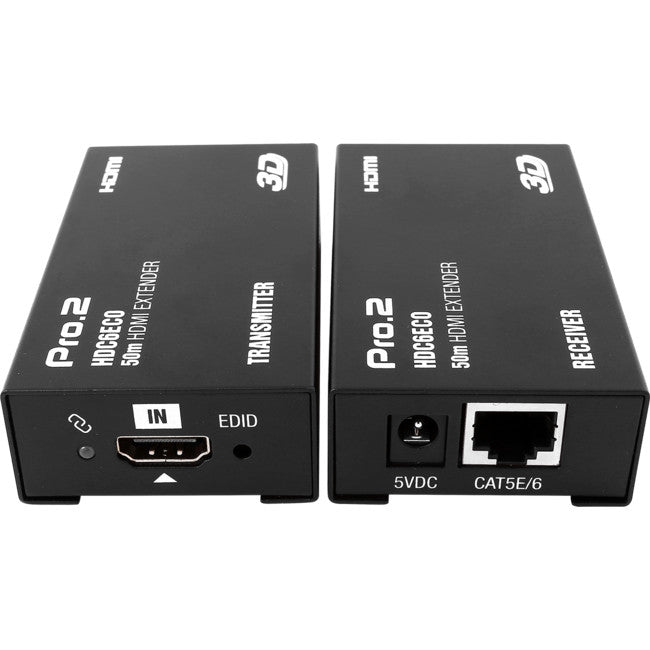

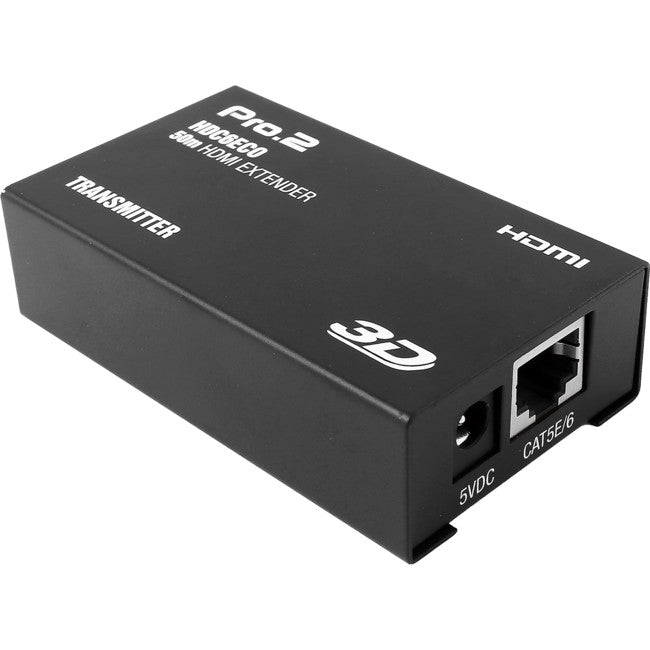

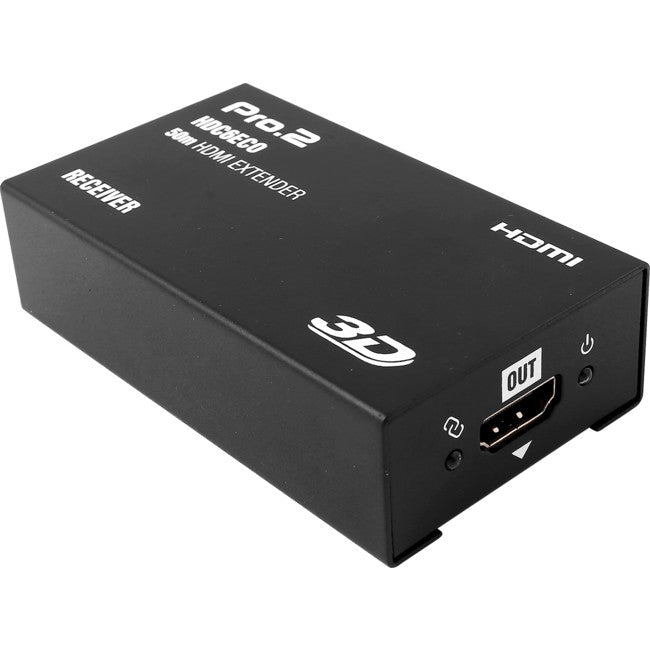

Transmit Full-HD 1080p HDMI signal up to 50 metres via a single CAT5e/6 cable without signal loss!
Please note: IEEE-568B standard cables are recommended for this kit.
| Operating Temperature Range | −5 to +35°C |
|---|---|
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Input Video Signal | 0.5-1.0V P-P |
| Input DDC Signal | 5V p-p (TTL) |
| Support Video Format DTV/HDTV |
|
| Video Output | HDMI, HDCP |
| Support Audio Format | DTS-HD Master Audio Dolby True-HD etc. |
| Transmission Distance | 1080p 8-bit 50m (Maximum) over single CAT5e/6 / 24AWG / Solid |
| Power Consumption | 5W (Maximum) |
| Dimension (L×W×H) | 83mm × 48mm × 25mm |
| Net Weight | 250g (Pair) |
