Requires IEEE-568B cable termination standards and solid core cable. Use Solid/FTP CAT5/6 cables.

If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not work with standard stranded ethernet cable. See related items forcabling that will work this product. 60m distance has been tested fine on F/UTP solid CAT6 cable.

FYI: Most of the pre-made CAT5/6 leads on the market are stranded cable not solid.

HDC6M 50M HDMI OVER CAT6 EXTENDER

Foxtel iQ2 and iQ4 compatible

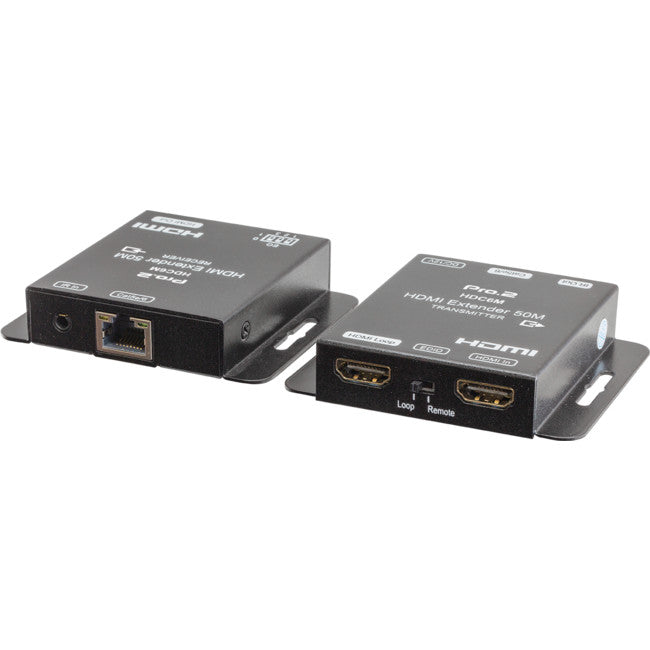

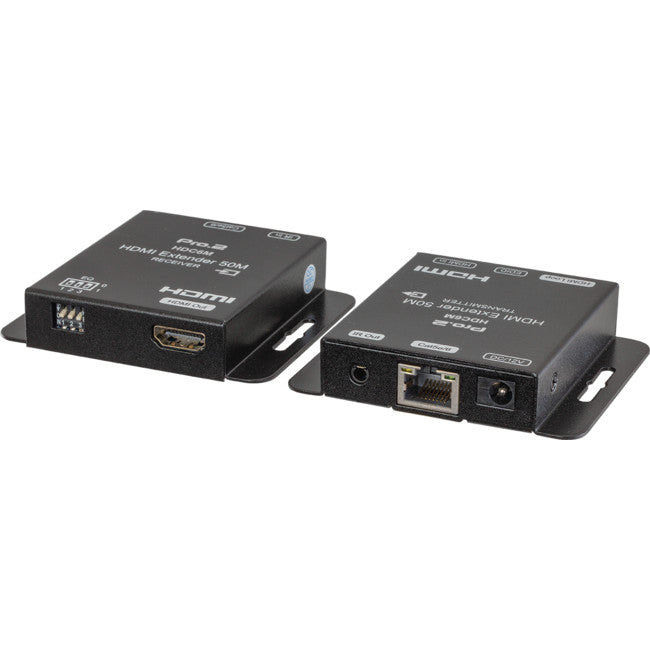

A neat and simple high definition HDMI mini extender kit. This kit extends your high definition AV sources from Blu-ray DVD Players, PS3 and XBOX, etc. up to a maximum of 50m via single solid CAT5e/ 6 cables through the wall cavities. The EDID feature increases its compatibility with players or displays. It supports a full 1080p high definition and integrates an infra-red control extender for full controllability from the receiving end. RJ45 connections on the rear of both units make it for easy connection

With local HDMI loop out on the transmitter, the device enables local viewing function. Which means you can view the video source locally as well as on the extended end.

Compared with the popular model, HDC6L, the compact design makes it easy to be mounted to the back of your TV and the new power over cable feature means it only requires one power supply at the transmitter end, no power supply is required at the receiver, which makes the installation even easier.

Features

Compact size, easy mount
Supports 1080P 60Hz @ YUV 4:4:4
Transmits HDMI Audio/Video Signals and IR over a 50m single solid CAT5e/6 Cable
Local HDMI loop out on the transmitter
Power over cable, one power supply required on the transmitter
EDID control, copy local or remote EDID settings with the flick of a switch
Distance switch, DIP switch to set network cable distance up to 50m
HDCP compliant
Supports 24-bit Deep Colour;
Supports PCM, Dolby True-HD, DTS-HD master audio
Audio sampling rate up to 48KHz, support 7.1 channels
Supports 3D video format
Follows IEEE-568B cable termination standards and solid cables are preferred

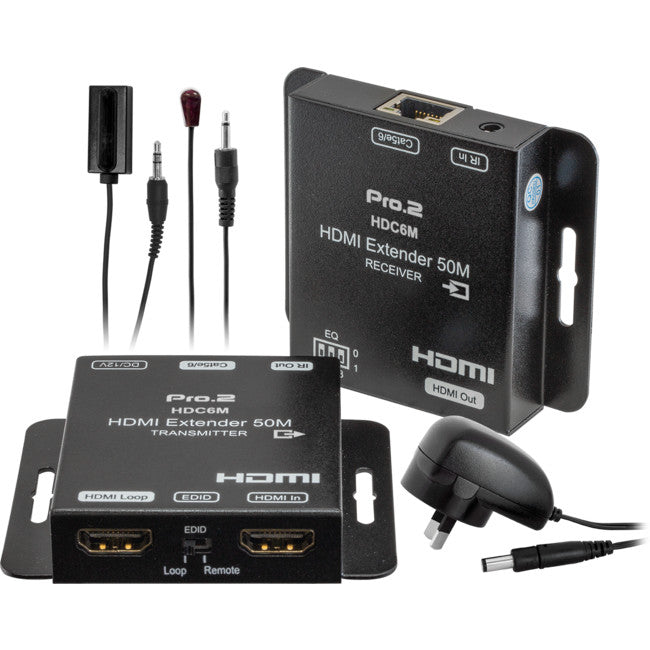

What's In The Box?

Transmitter × 1
Receiver × 1
IR emitter × 1
IR receiver × 1
12V DC 1A power supply × 1
Manual × 1

Connection diagram

Got The Right Cable?

Please note: IEEE-568B standard solid cables are recommended for this kit.

{tab Specifications}

Specifications

Operating Temperature Range	−5°C to +40°C (+23°F to +104°F)
Operating Humidity Range	5 to 90%RH (No Condensation)
Connectors on Transmitter	HDMI Receptacle × 2 (1 × HDMI input, 1 × HDMI loop output) Power DC Receptacle × 1 IR Receptacle × 1 (for IR TX)
Connectors on Receiver	HDMI Receptacle × 1 IR Receptacle × 1 (for RX cable)
Resolution Outputs	1080p/1080i/720p/576p/480p
Audio Format Supported	DTS-HD Master Audio, Dolby True HD, Multi-channel 7.1, Stereo, etc.
Output Video Signal	HDMI
Dimensions (L×W×H)	TX: 79.3mm × 68mm × 16.5mm RX: 79.3mm × 68mm × 16.5mm
Power Supply	12V DC 1A Power Supply
Power Consumption	2W (Max)
Transmission Distance	1080p up to 50m
Net Weight	TX: 120g RX:115g

*Note: 50m distance is under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.

{tab FAQ}

FAQ

Q: Does this unit work with the new Foxtel iQ3?
A: Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

Also note that the new Foxtel IQ boxes only come with a Bluetooth® remote. You will need to acquire a Foxtel compatible IR remote.

Q: What happens if the product is not working?
A: Please check your cable, make sure IEEE-568B type solid cable is being used.
