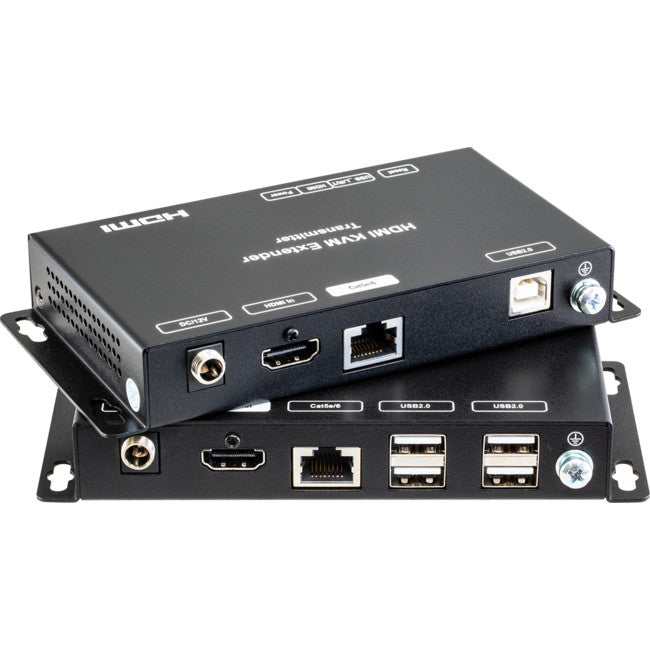

HDMIKVMV3 HDMI USB2.0 KVM EXTENDER 50M W/ 4 USB PORTS 100M HDMI PRO2 EX46B

HDMIKVMV3 HDMI USB2.0 KVM EXTENDER 50M W/ 4 USB PORTS 100M HDMI PRO2 EX46B

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

HDMIKVMV3 PRO2 HDMI USB2.0 KVM EXTENDER

  • Transmit distance up to 100m over single CAT5e/6 cable under Non-USB mode
  • Transmit distance up to 50m over single CAT5e/6 cable under USB Mode
  • USB 2.0 pass-through
  • Support Full HD 1080P @ 60Hz, and bandwidth 1.65Gbps
  • Support Dual POC(RX powered by TX or TX powered by RX)
  • HDCP1.4 compliant
  • Support PCM2.0, audio sampling rate: 44KHz, 48KHz

Please Note: There is ONLY one power supply supplied in the kit, you can plug it into either the transmitter or receiver, but the USB port doesn't support hot plug, the power cycle required when to plug in any USB devices.


Specifications


Operating Temperature Range −10°C to +45°C (14°F to +113°F)
Storage Temperature Range −15°C to +70°C (5°F to +158°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Support Video Format
  • DTV/HDTV: 480P/576P/720P/1080P
  • VESA: 640×480, 800×600, 1024×768, 1280×1024, 1680×1050, 1280×720, 1360×768
Connector on Transmitter
  • 1 × HDMI Input
  • 1 × USB B Type
  • 1 × RJ45 Output
Connector on Receiver
  • 1 × RJ45 Input
  • 1 × HDMI Output
  • 4 × USB A Type
Transmission Distance
  • 100m (Max) over single CAT5e/6 / 24AWG / Solid under Non-USB Mode
  • 50m (Max) over Single CAT5e/6 / 24AWG / Solid under USB Mode
USB Transmit Speed 480M bit/s (Max)
Power Consumption 4.8W (Max)
Dimensions (L×W×H) 147.5mm × 73.6mm × 22mm
Net Weight
  • Transmitter: 257.5g
  • Receiver: 257.5g
