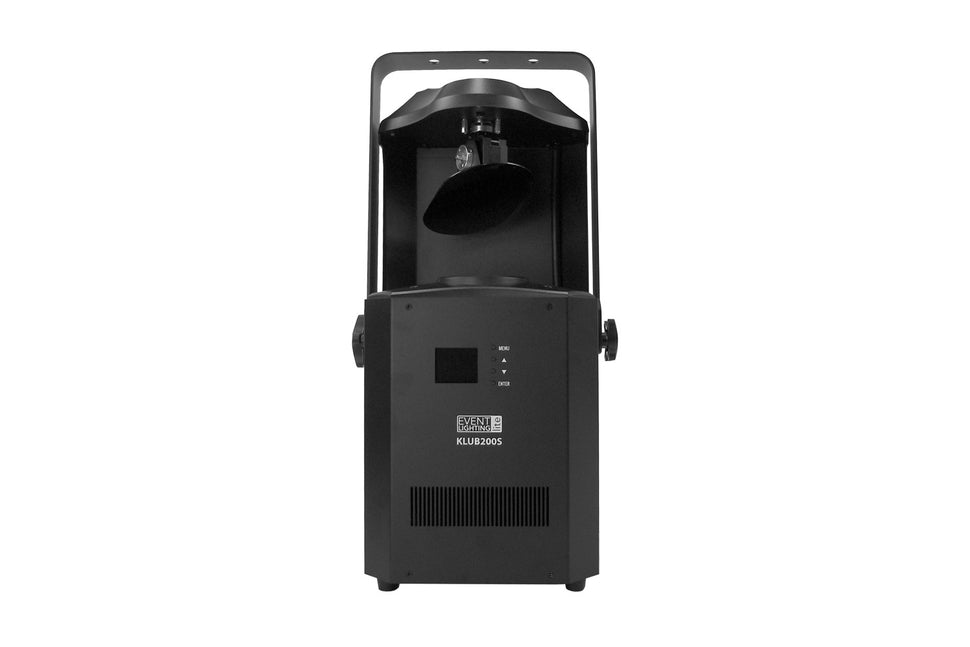

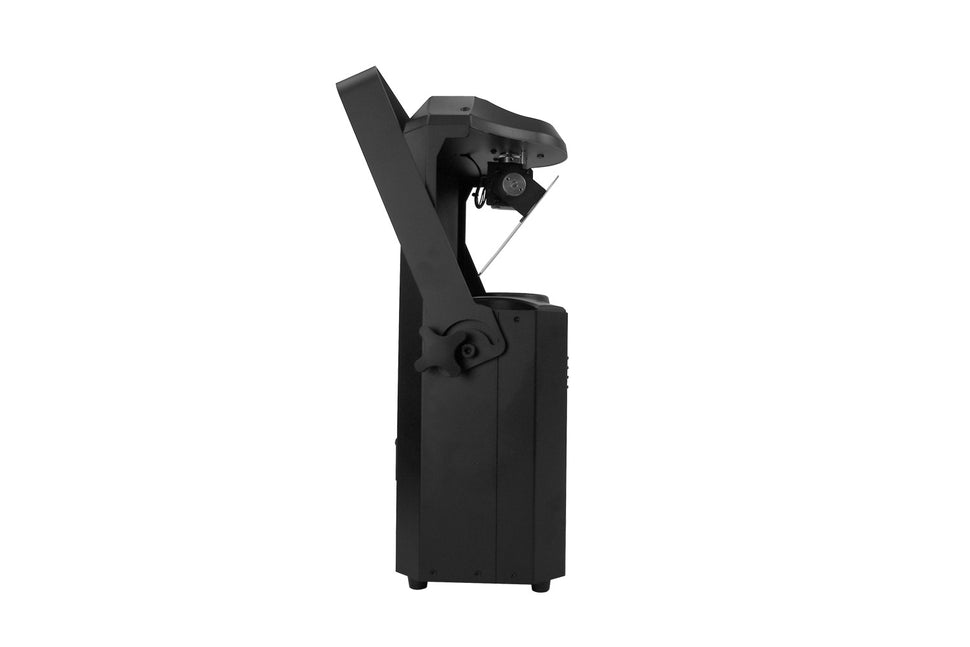

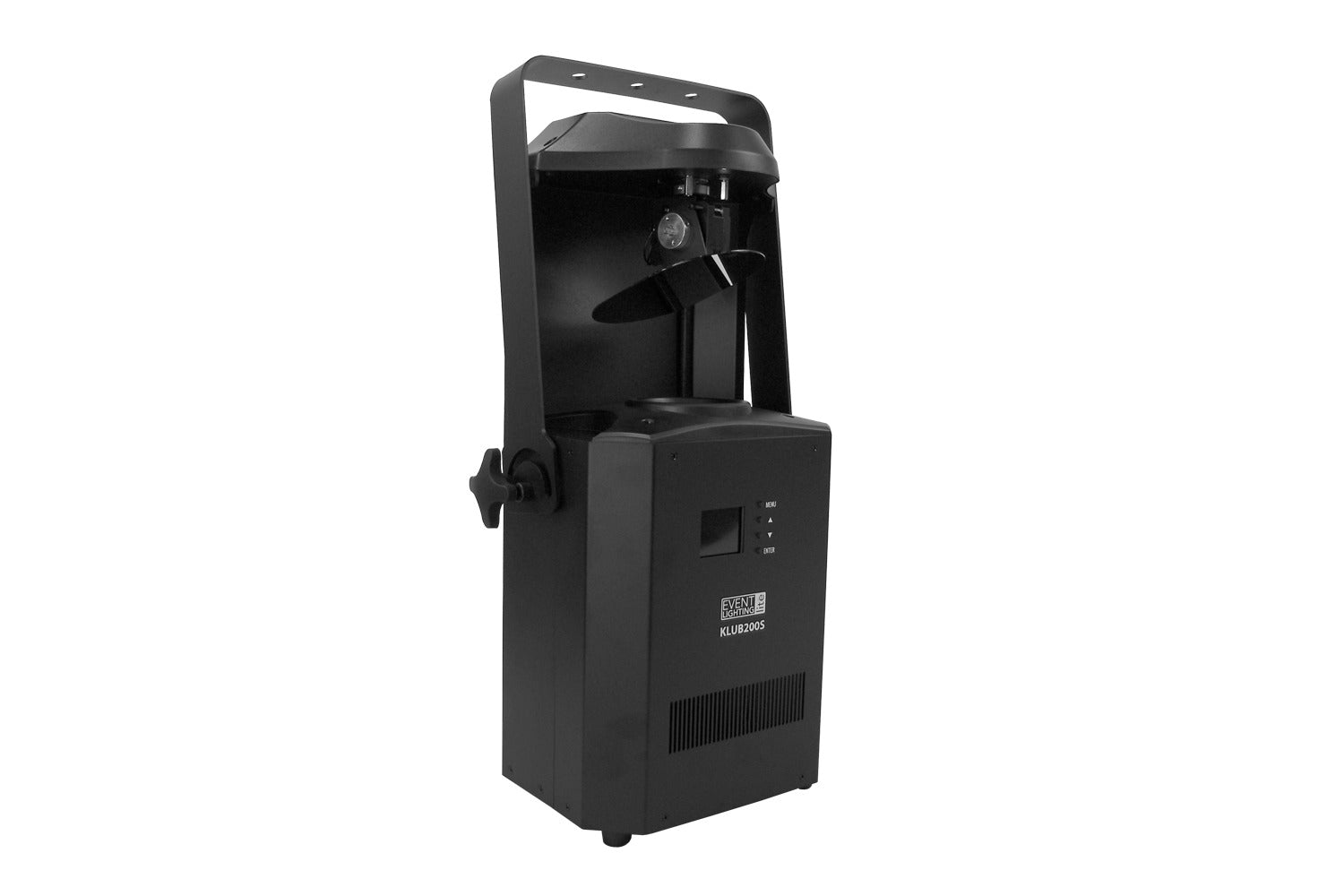

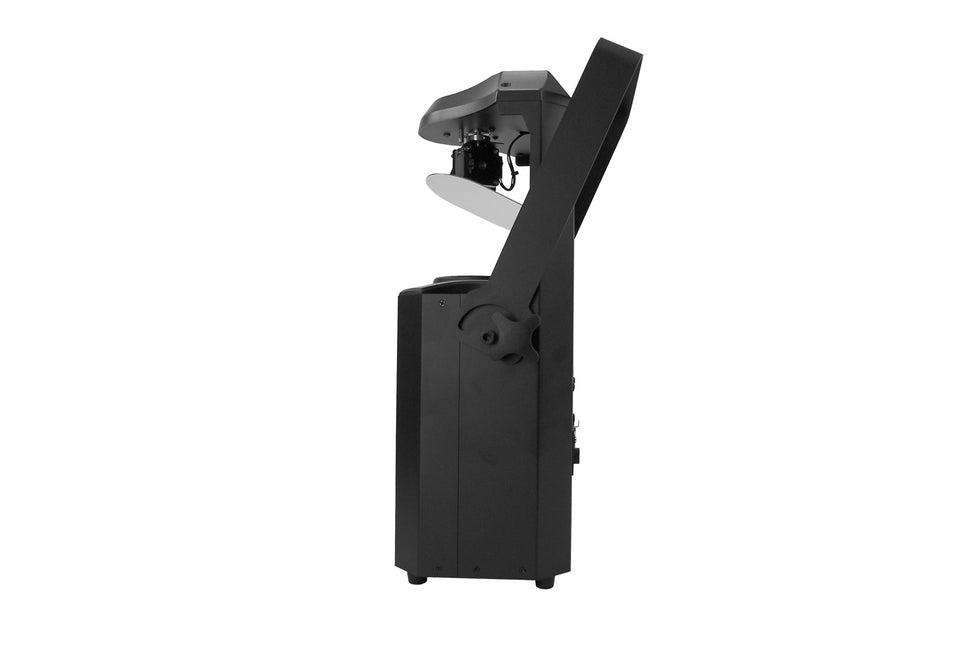

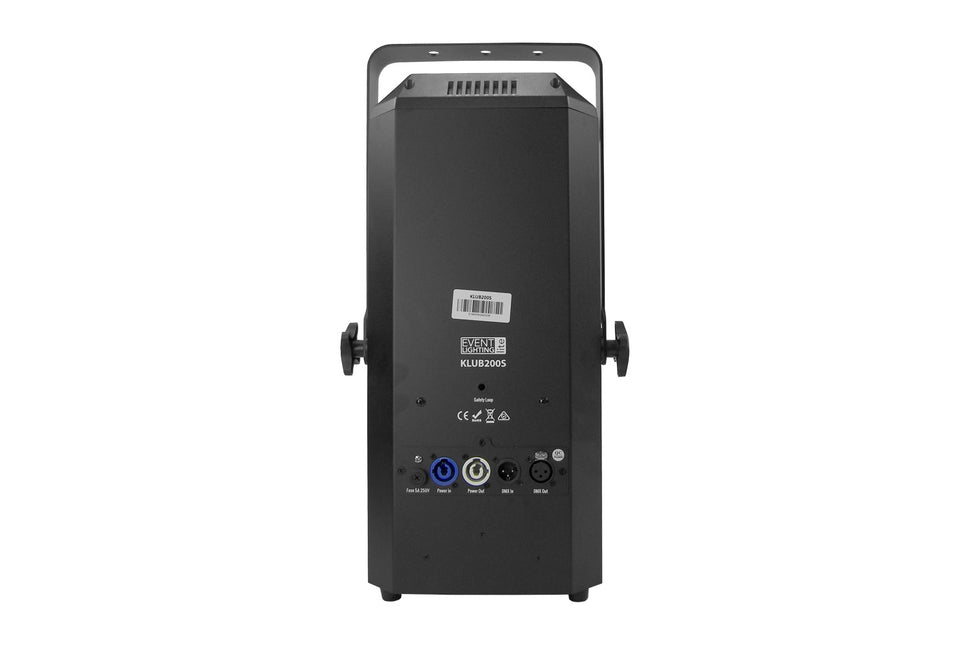

KLUB200S - 200W LED Scanner

Online Stock Only. Local pickup may be available on some items with prior arrangement. We Price Match please call in or text 04 5555 1974

LED Scanner - 1 x 200W White LED, 15° beam angle, 8+ colour wheel, 7+ rotating gobo wheel, 4 facet prism, 3 pin DMX in/out, powercon in/out. With static gobo wheel.

Specification:

Photometrics

• Light Source: 200W LED
• Colour temperature: 8,500 K
• Beam angle: 15°
• LED Lifespan: 50,000 hours

Colour

• 1 color wheel: 8 colors + white

Gobos

• Gobo wheel 1: 8 gobos + open, static
• Gobo wheel 2: 7 gobos + open, exchangeable, indexing and rotating

Effects

• Gobo shaking effect
• 4-fact prism, rotating
• Electronic focus
• 0-100% linear dimmer
• 1-25 fps strobe

Movement

• Pan : 180° Tilt: 45°

Power

• Power supply: 100~240 V AC, 50/60 Hz

• Power consumption: 200 W

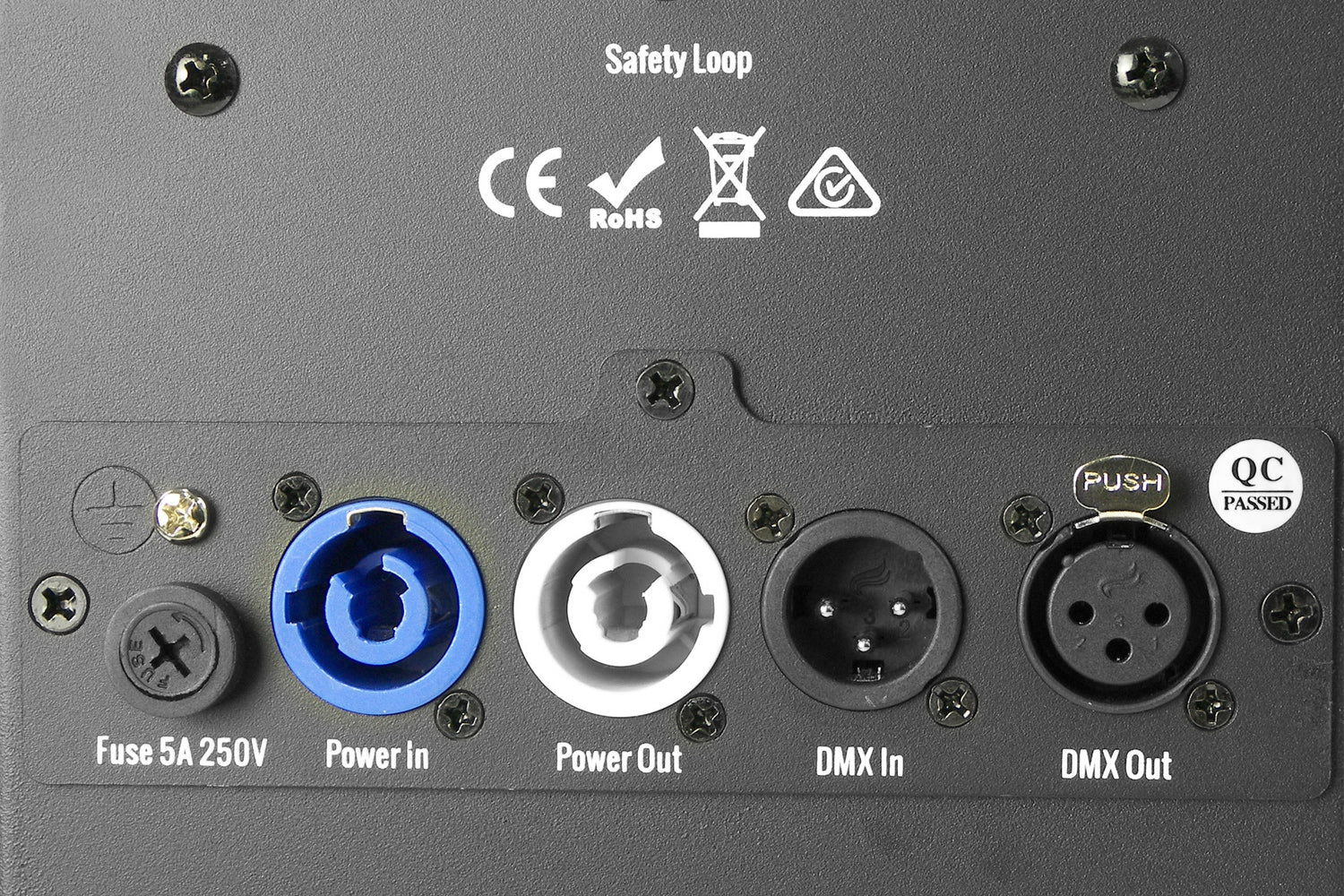

• Connection: powerCON in / out
• Fuse: F5A 250V

Control

• Operational modes: DMX, Auto, Sound, Master/Slave

• Control Protocol: DMX512, RDM
• DMX Channels: 14 / 16
• Interface: 3-pin XLR in / out

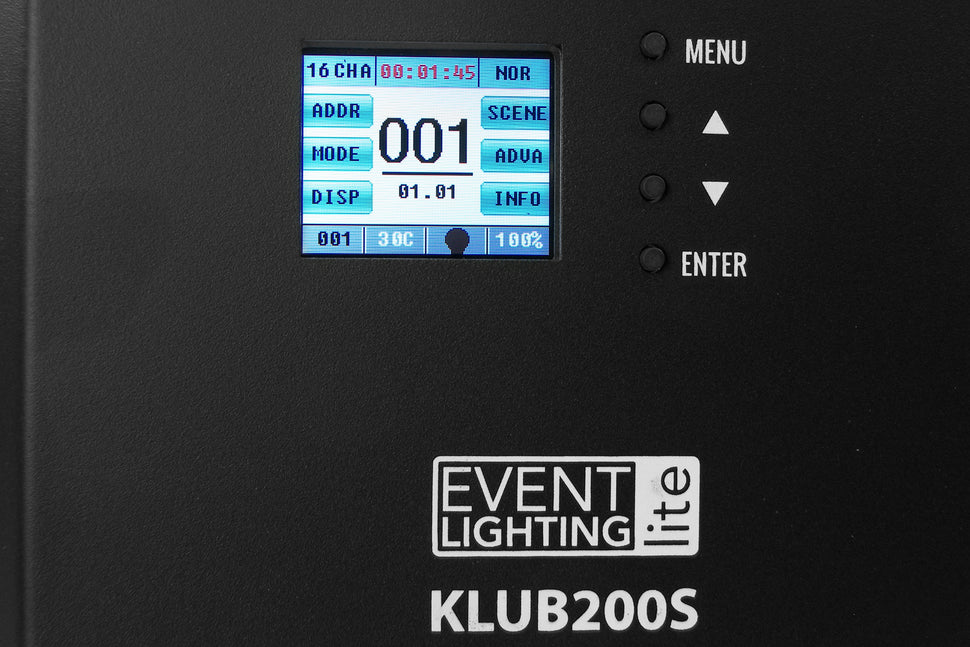

• LCD display with 4 buttons

Housing

• Materials: Steel, matte black finish
• IP rating: IP20

• Net weight: 7.2kg

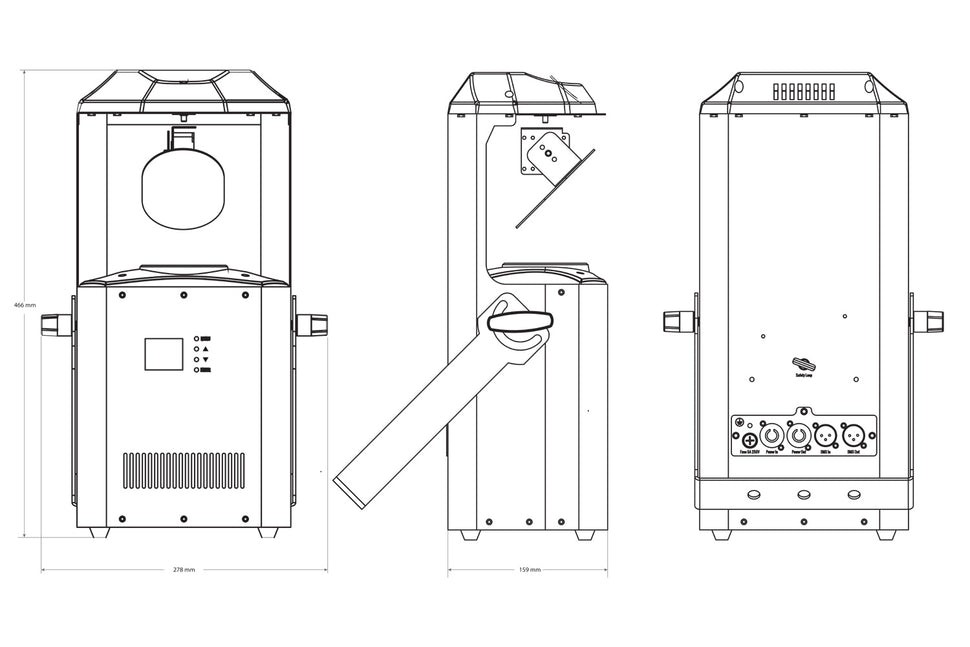

• Overall size: 260 x 165 x 465 mm

Warranty: 2 Years

User Manual Download
