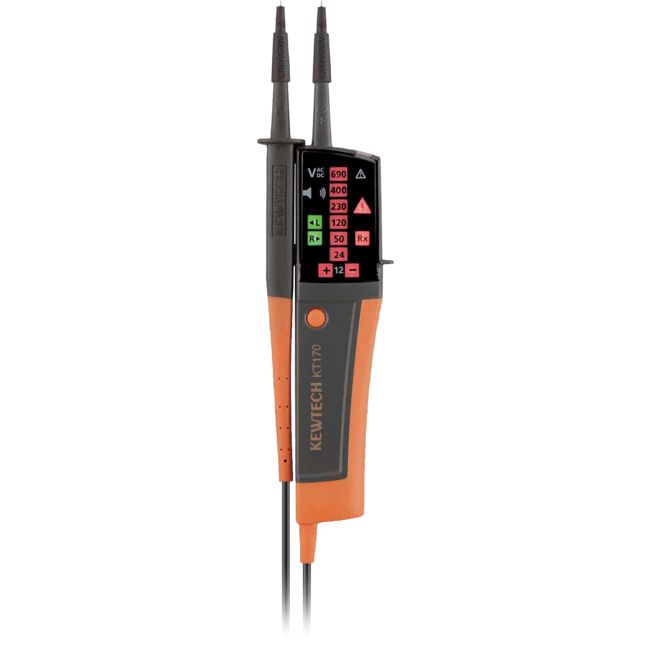

KT170AU VOLTAGE AND CONTINUITY TESTER KYORITSU KYORITSU 44488501

$121.00

Voltage Tester

AC and DC voltage tests up to 690V with LED
Comply with the latest standards IEC 61243 and IEC 61010
Novel design
Large and bright LEDs: Values are visible in the dark place Ergonomic design fits in the hand
Two functions are available in one model
"Measurement without battery" and "SelfTest (all LED on)"
Test leads withstand harsh environments at low temperature
Penlight (white LED)
Auto-power ON/OFF
Variable test tips, f2mm or f4mm
Probe protection cover can store the attachment of caps
IP65 (IEC 60529)


Voltage Test (Double-pole Test)		Single-pole Phase Test


Variable top tips		Store the attachment of caps


ProbeProtection Cover		4mm Tips Replacement

		How to fixing 4mm Tips on L1 probe- and L2 probe+.

{tab SPECIFICATIONS}

Voltage Test

Voltage Range

12~690V AC/DC

Nominal Voltage

12/24/50/120/230/400/690V
AC (16~400Hz), DC (±)

Tolerance
(Threshold Voltage)

Light on at more than:
	7±3V (12V LED)
	18±3V (24V LED)
	37.5±4V (50V LED)
	75%±5% of nominal voltage
	(120/230/400/690V LED)

Response Time

<0.6s at 100% of each nominal voltage

Peak Current

ls<3.5mA (at 690V)

Measurement Duty

30s ON (operation time)
240s OFF (recovery time)

Single-pole Phase Test

Voltage Range

100~690V AC (50/60Hz)

Phase Rotation Test

System

Three-phase 4-wire system
200~690V phase-to-phase AC (50/60Hz)

Phase Range

120±5 degree

Continuity Test

Detection Range

0~400kO+50%

Test Current

Approx. 1.5µA (battery 3V, 0O)

General

Operating temperatureand humidity ranges

-15~55’ŠC, max 85% RH (No Condensation)

Storage temperature and humidity ranges

-20~70’ŠC, max 85% RH (No Condensation)

Applicable Standards

IEC 61243-3, IEC 61010-1, IEC 61010-031, IEC 61557-7
CAT.? 690V / CAT.? 600V Pollution degree 2

IP Rating

IP65 (IEC 60529)

Power Source

LR03 (AAA) 1.5Vx2

Dimensions

246(L)x64(W)x26(D) mm

Weight

190g (including batteries)

Accessories

LR03 (AAA) 1.5Vx2, KTA01 (4mm metal tips [2pcs/set]),
KTA02 (4mm rubber caps [2pcs/set]), Instruction manual
