$549.00

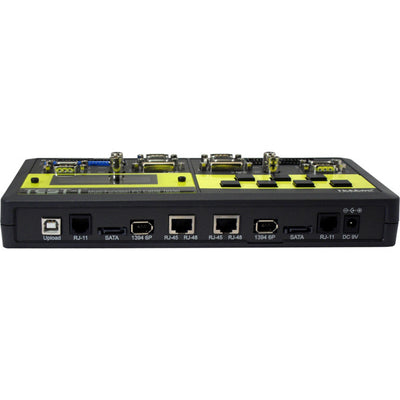

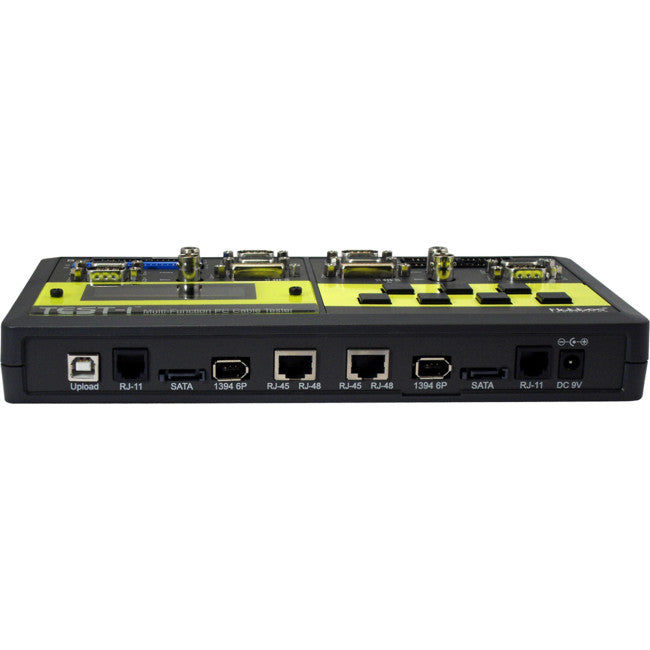

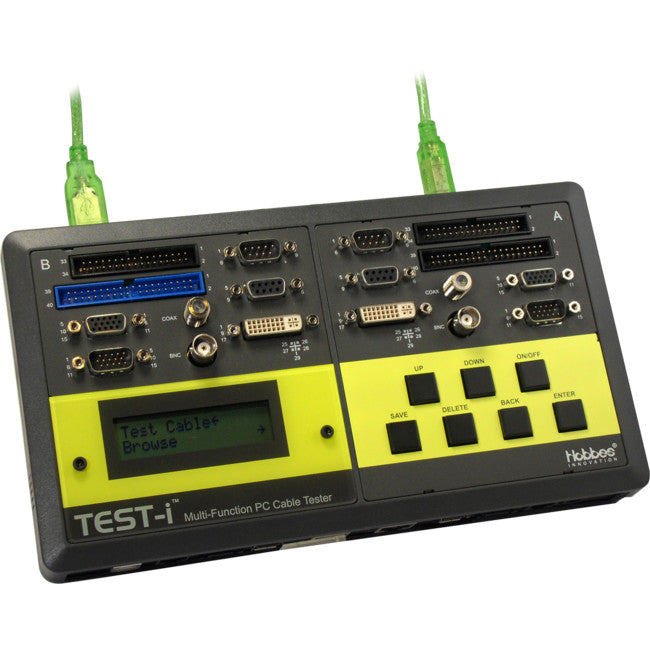

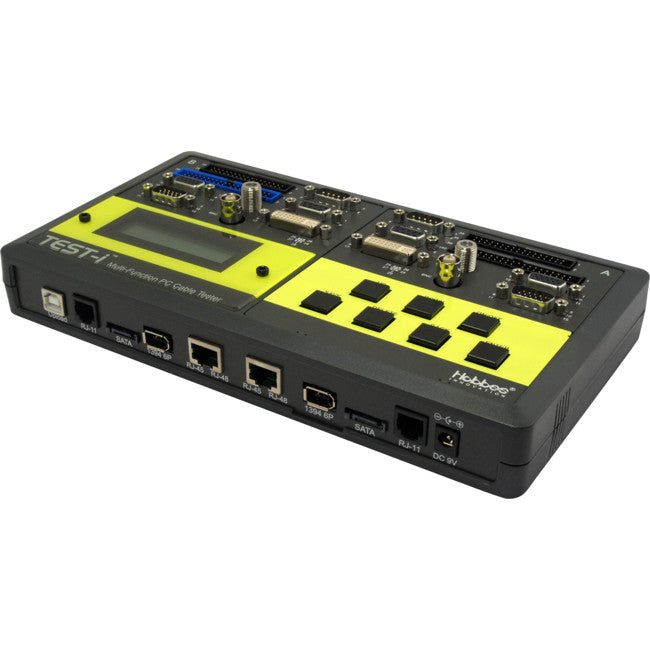

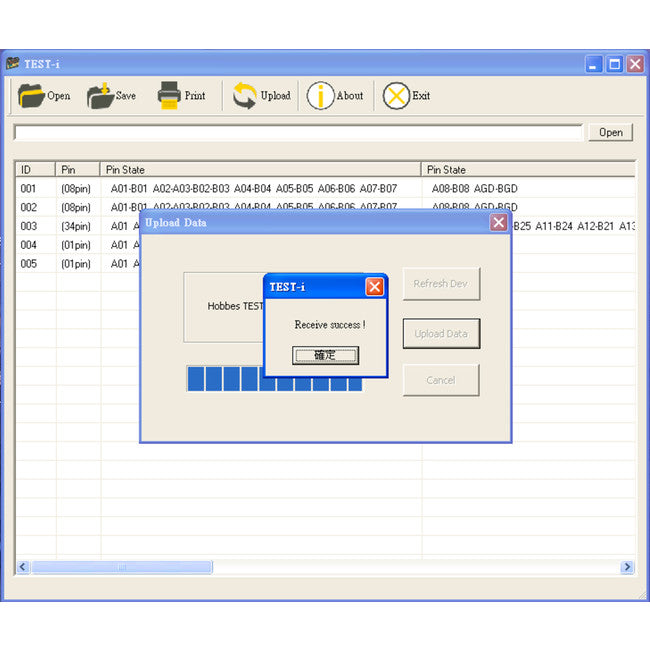

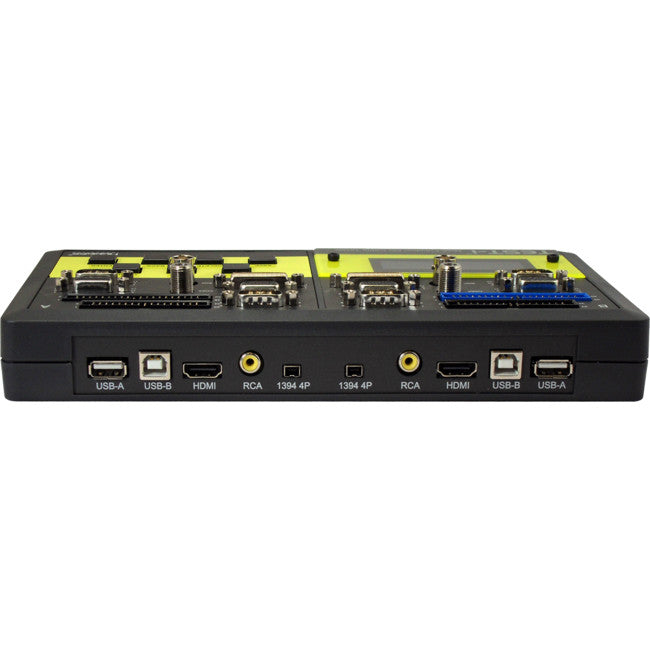

The third generation of PC cable testerTEST-i - All-in-One Universal Cable Tester / DB9 DB15 RS232 Cable Tester, a specially designed multi function cable tester that tests and analyzes a comprehensive range of PC connector up to 18 types and the most commonly used flat cables. TheTEST-i not only tests each pins connection to identify opened wires, shorted wires, cross wires, and mis-wires. It also shows pin to pin connectivity, and can also records up to 100 test results. The crucial data collected can be saved and uploaded to a PC via USB for analysis.
With an integrated LCD display (with back light function), users can clearly determine the cable pin wiring easily and efficiently. The TEST-i makes an excellent and essential tool for a system integrator to quickly troubleshoot and perform pin to pin test on PC cables.
Connectors: IDC40, IDC34, DVI29, HDB15M/F, DB9M/F, COAX, BNC, RJ-11, RJ-45, 1394-6P, 1394-4P, SATA, USB(A/B), HDMI, RCA, IDC40 to RS232
Control switch: On/OFF, UP, DOWN, SAVE, DELETE, BACK, ENTER
Display: LCD size, 2 rows 16 characters, back light
Battery: DC 9V battery compartment (not included) or DC 9V150mA power jack (adapter not included)
Dimensions: 250 x 138 x 44mm
Weight: 802.7g
