M7252 6V + 6V 10VA PCB TRANSFORMER 12V (751012T) M7252

7510 SERIES - LOW PROFILE - Made to the latest Australian standards AS/NZS3108, these PCB transformers are rated modestly for their size. Wound on flame retardant nylon 66 bobbins. The primary winding is fitted with an in-built thermal fuse to protect the appliance in the case of a short circuit developing in the secondary winding.
- 3.75kV isolation input to output
- Bifilar wound secondaries for series or parallel connection
- Alkaline tin dipped pins for ease of soldering
- Suitable for wave soldering
- Energy/ Telecom approved
- Primary: 240V, 50Hz
- Total VA rating: 10VA
- Fuse Type: Thermal @ 126°C
- Weight: 250g

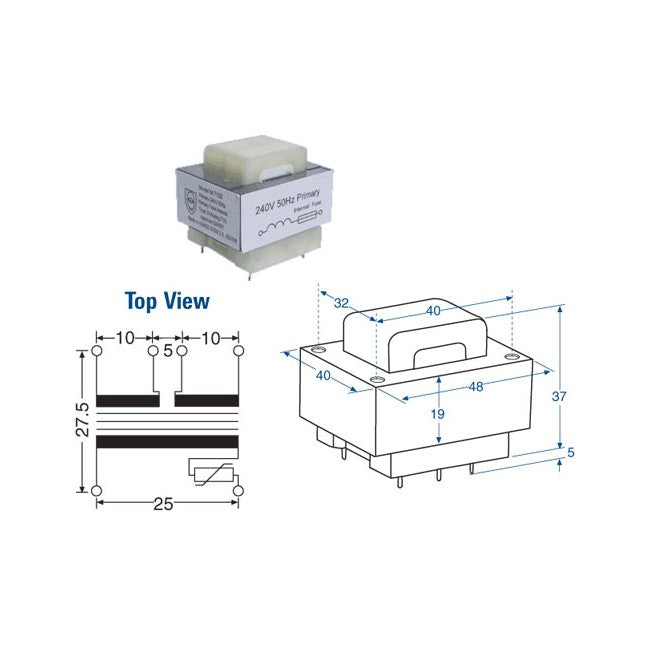

- Size: 36.5 x 48 x 40mm (HWD)
- Secondary Voltage: 6V + 6V
