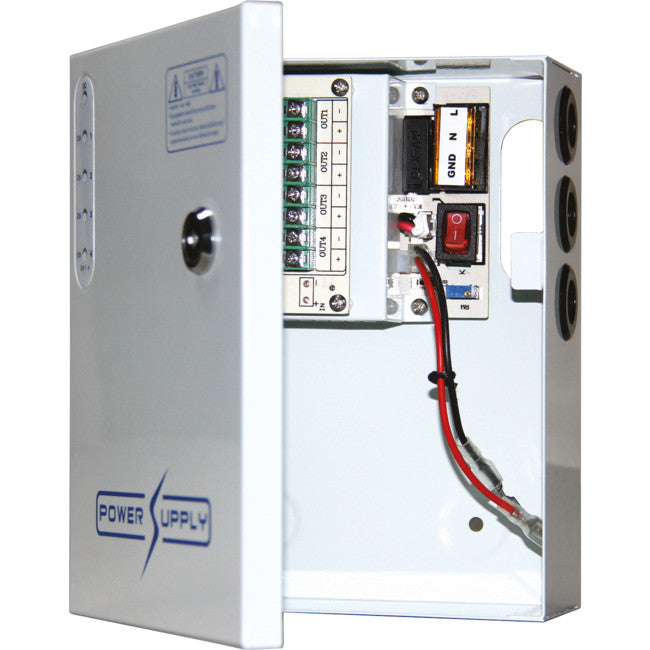

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box.
This model also comes with UPS function which can work together with the 12V 7A battery to back up the power for the systemwhen the power is cut off.
Output | DC Voltage | 12V |
Rated Voltage | 12V-14.8VDC | |
Current | 5A | |
Power | 60W | |
Ripple and Noise | ≤100mV | |
Voltage ADJ. Range | 12V±10% | |
Voltage Accuracy | ±10% | |
Set-up Time | ≤2S@120VAC≤1.0S@230VAC | |
Hold up Time | ≥10mS@120VAC,≥20mS@230VAC | |
Input | Voltage Range | 96V~264VAC |
Frequency Range | 47~63Hz | |
Efficiency (Type) | 80%~95% | |
Protection | Over Load | 105%~150% (rated load) |
Over Voltage | 115%~150% (rated output voltage) | |
Shorted Circuit | Fuse Tube | |
Environment | Operating Temp. & Hum. | -10°C~45°C; 20%~90%RH (non-condensing) |
Storage Temp. & Hum. | -20°C~+85°C20%~95% | |
Others | Dimension (L*W*H) | 202*163*70mm |
Packing | 370*250*85mm | |
Cooling method | Free Air Convection | |
Net weight | 1210g |
Model | Ways | Output Voltage | Output Amp. | With UPS |
33774960 PW0412B05 | 4 | 12V DC | 5A | No |
33774965 PW0812B10 | 8 | 12V DC | 10A | No |
33774990 PW1612B16 | 16 | 12V DC | 16A | No |
33775000 PWU0412W05 | 4 | 12V DC | 5A | Yes |
33775005 PWU0812W10 | 8 | 12V DC | 10A | Yes |
33775015 PWU1612W16 | 16 | 12V DC | 16A | Yes |
