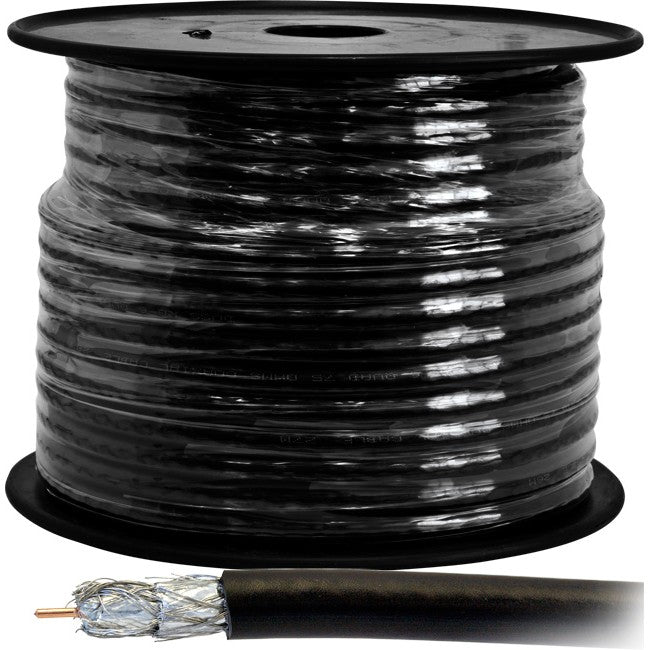

Doss RG6QUAD - 30m Roll
Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The sheilding is 2 × screening of aluminium tape covered with woven aluminium braid outer conductor.
- 1.02mm copper clad steel centre conductor (Conductivity 20%)
- 2 × Aluminium 45% braid & 2 × Sealed APA tape
- Dielectric:4.57mm Foam Polyethylene
- First Shield: Bonded AL Foil
- Second Shield: 45% AL Braiding
- Thrid Shield: AL/PET
- Fourth Shield: 45% AL Braiding
- Suitable for UHF, Pay, Satellite - Ø7.40mm Jacket
- Nominal Impedance: 75Ω ±3
- Nominal Velocity of Propagation: 85%
- Nominal Capacitance: 50pF/M
- Speaker Test: 4000V AC
- Attenuation (dB/100m):
- 4.538 @ 55MHz
- 8.522 @ 211MHz
- 12.828 @ 450MHz
- 18.254 @ 870MHz
- 19.642 @ 1000MHz
- 23.899 @ 1440MHz
- 29.673 @ 2150MHz
- 35.386 @ 3000MHz
