SSTPCAT6BL-305M SSTP CAT6 SOLID CABLE BLUE305M SHIELDED PER ROLL REEL DOSS

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

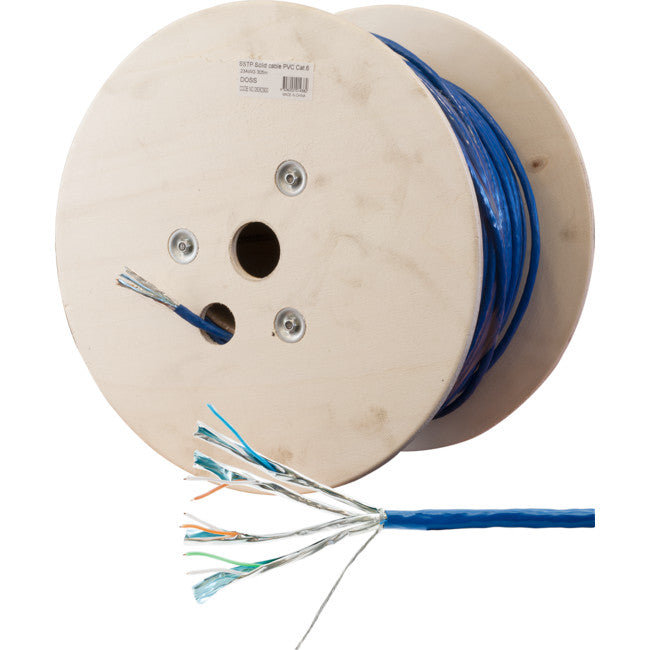

This item is sold as a 305m roll

Need a shorter length?

This cable is also available per metre.

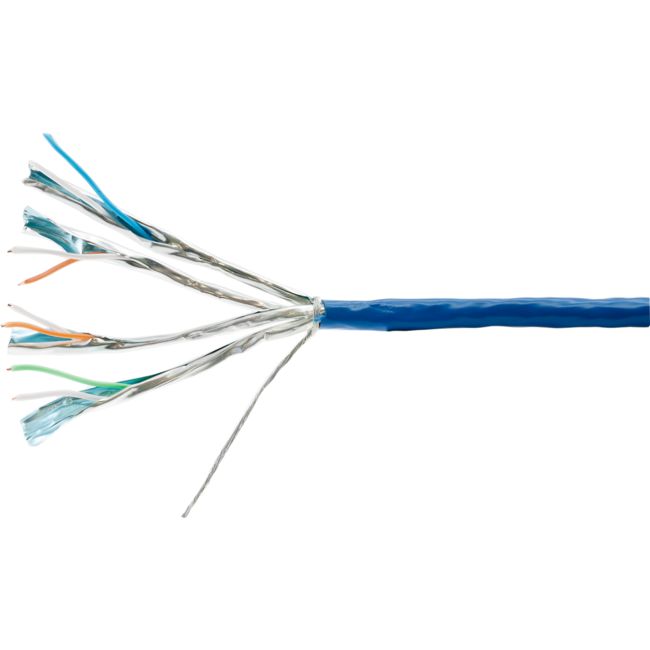

S/STP (Screened Shielded Twisted Pair) or S/FTP (ScreenedFoiled Twisted Pair) cabling offers shielding between the pair sets and an overall sheath shield within the cable. This type of shielding protects EMI from entering or exitingthe cable and also protects neighbouring pairs from crosstalk.

Specifications

  • Conductor
    • Insulation:
      • Material: FO-PE and HD-PE
      • Diameter: 1.30 ± 0.02mm
      • Thickness: 0.37 ± 0.01mm
      • Colours (per pair):
        • Blue - Blue/White
        • Orange - Orange/White
        • Brown - Brown/White
        • Green - Green/White
    • Conductor:
      • Material: Bare Copper
      • Diameter: 1/0.571 ± 0.01mm
  • Sheilding
    • Outer Braid (loose): 16×4×1/0.12mm
    • Aluminium Foil (per pair): 0.065×13mm
  • Jacket Insulation
    • Colour: Blue
    • Material: LSOH
    • Diameter: 7.6 ± 0.01mm
    • Thickness: 0.6 ± 0.02mm
    • Tensile strength (minimum): 0.917Kg/mm2
  • Electrical Characteristics:
    • Conductor Resistance (max): 9.38 Ω/100m at 20°C
    • Resistance Unbalance (max): 5%
    • Capacitance Unbalance (max): 330pF/100m
    • Mutual Capacitance (max): 560pF/100m
