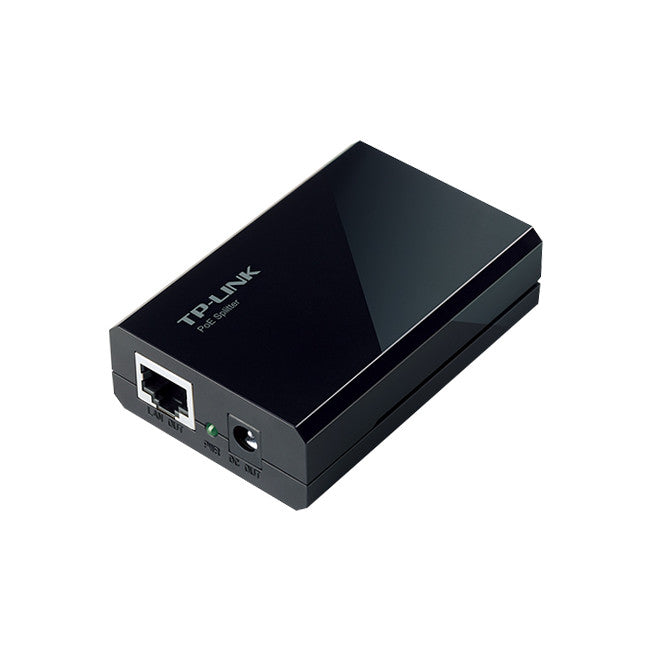

TLPOE10R POE SPLITTER 100MT RANGE 5VDC/ 12VDC OUTPUT TP-LINK TL-POE10R

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

TL-POE10R PoE Receiver Adapter - TP-LINK

The PoE Receiver Adapter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK’s TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V or 5V Direct Current to where there are no power line or outlet, where you wish to fix a non-POE compliant device such as AP, IP Camera or IP Phone, etc.

  • IEEE 802.3af compliant
  • Delivers power over 100 meters
  • Can switch between 12V DC or 5V DC power supply output
  • Plug-and-Play, requires no configuration



Standards and Protocols
 IEEE 802.3, 802.3u, 802.3af
 CSMA/CD, TCP/IP
Basic Function
 Compatible with IEEE 802.3af compliant PSEs
 Delivers power up to 100 meters
 Optional 12VDC or 5VDC power supply
 Plug-and-Play
Ports
LAN Port
 1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)
PoE Port
 1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum100m)
 EIA/TIA-568 100¦¸ STP (maximum 100m)
 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100¦¸ STP (maximum 100m)
LED Indicator
 PWR
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 3.2*2.0*0.9 in.(81*52*24 mm)
Environment
 Operating Temperature: 0¡æ~40¡æ (32¨H~104¨H)
 Storage Temperature: -40¡æ~70¡æ (-40¨H~158¨H)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power Output
 12W (12VDC) or 11.5W (5VDC)
