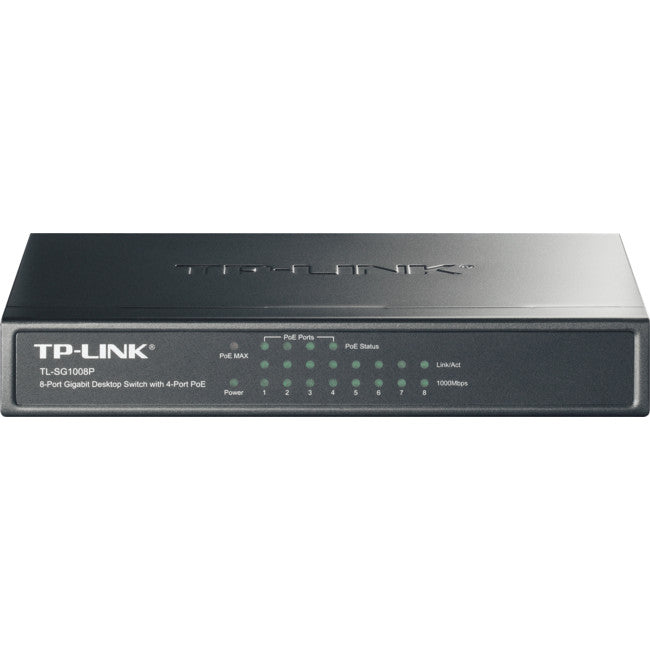

TLSG1008P 8 PORT 53W POE GIGABIT SWITCH 4 POE PORTS TP-LINK TL-SG1008P

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE (53W)

OVERVIEW

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4)of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). Inthis situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where youwish to fix devices such as APs, IP Cameras or IP Phones, etc.

Overload Arrangement
TL-SG1008P has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority willbe arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function
*Priority (port-1 > port-2 > port-3 > port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the systemwill cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.

Easy To Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.

FEATURES

  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 53W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Modeand backpressure for Half-duplex Mode
  • 8K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity and speed
  • External power adapter supply

SPECIFICATIONS

HARDWARE FEATURES

  • Interface:
    • 8 x 10/100/1000Mbps RJ45 Ports
    • AUTO Negotiation/AUTO MDI/MDIX
  • Network Media:
    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • EIA/TIA-568 100ohm STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    • EIA/TIA-568 100ohm STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    • EIA/TIA-568 100ohm STP (maximum 100m)
  • PoE Ports (RJ45):
    • Standard: 802.3 af compliant
    • PoE Ports: Port1- Port4
    • Power Supply: 53W
  • Backbound Bandwidth: 16Gbps
  • Mac Address Table: 8K
  • External Power Supply: External PowerAdapter (Output: 48VDC / 1.25A)
  • Dimensions (WxDxH): 6.7 x 3.9 x 1.1in. (171 x 98 x 27mm)
  • Fan Quantity: Fanless

SOFTWARE FEATURES

  • Transmission Method: Store-And-Forward
  • Advanced Functions:
    • Compatible With IEEE 802.3af Compliant PDs
    • Priority Function
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

OTHERS

  • Certification: FCC, CE, RoHS
  • Package Contents:
    • TL-SG1008P
    • Power Adapter
    • User Guide
  • Consumption:
    • 5.8 watts (max. no PD connected)
    • 58.8 watts (max. with 53w PD connected)
  • Environment:
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity: 10% ~ 90% non-condensing
    • Storage Humidity: 5% ~ 90% non-condensing
