AIPHONE DOOR ACCESS CONTROL

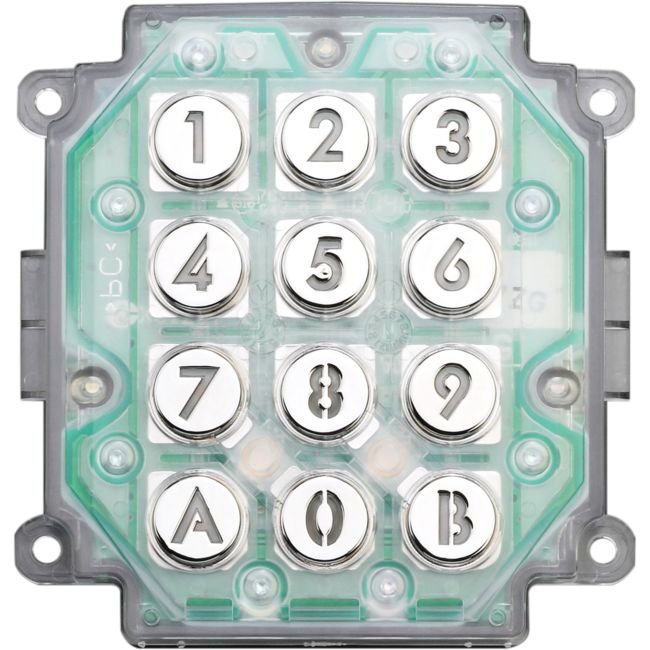

Aiphone AC10U is a keypad mechanism only designed for integrating with a custom user supplied panel
- Up to 100 user codes (#1 relay: 60, #2 relay: 40)
- 4, 5 or 6 digits user code length
- 2 relays (both of relays have N/O and N/C)
- Keypad lockout function
- Anti-tailgate function
- One push door release with external timer connection
- Key pad illumination
SPECIFICATIONS:
- Power Source 12 – 24V AC/DC
- Consumption AC: Max. 100mA
- DC: Max. 70mA
- Relay Outputs: 2
- Contact rating: 24V AC/DC
- 3A (resistive load)
- 1A (inductive load)
- Dry contact: N/O or N/C
- Operating time: 1- 99 secs
- Access Code Number: Up to 100 (#1: 60, #2: 40) Code length: 4 – 6 digit
- Wiring Two conductors
- Wiring Distance Unit~Power supply Door strike 0.65 – 1.0mm 100m Unit power 0.65 – 1.0mm 300m
- Exit/entry button & timer 0.65 – 1.0mm 300m
- IP Rating IP54
