Features

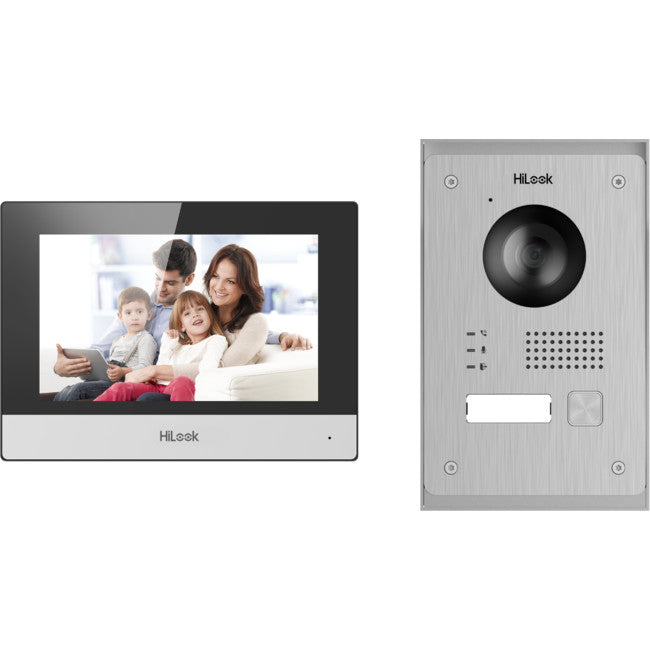

Two-Wire Indoor Station:
- Receives Video Call And Unlocks On Mobile App Anywhere, Anytime
- 7 inch Touch-Screen, User Friendly Interface, Plug & Play
- Easy, Cost-Efficient Installation
Villa Door Station:
- High quality imaging with 2 MP resolution
- Easy, Cost-Efficient Installation
- User Friendly Design, Name tag, Communication status LED indicator
- IP65 water resistant, preventing water ingress for outdoor use
Specifications
Door Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Operation ModeSingle-button
- Flash32 MB
- RAM256 M
Door Station/Video Parameters
- Camera2MP HD camera
- Resolution
- Main stream: 1920 × 1080p, 720p
- Sub stream: 704 × 576
- Night VisionLow illumination IR supplement mode:3 m
- WDRTrue WDR
- Field Of ViewHorizontal: 144° Vertical: 95°
- Video Compression StandardH.264
- Stream
- Main stream: 1080p@30fps, 720p@30fps
- Sub stream: 4CIF
- Motion DetectionSupport
- BLCSupport
- DNRSupport
- Anti-Flicker Frequency50 Hz, 60 Hz
Door Station/Audio Parameters
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio QualityNoise suppression and echo cancellation
- Audio Compression StandardG.711 U, G.711 A
- Audio Compression Rate64 Kbps
- Audio IntercomTwo-way audio communication
Door Station/Network Parameters
- Network ProtocolTCP/IP, RSTP
- Wired Network10/100 Mbps Ethernet
Door Station/Device Interfaces
- RS-4850
- Alarm Input5
- Output12 V/1 A output
- Debugging Port1
- Two-Wire Interface1
- Grounding1
- TAMPER Switch1
Door Station/General
- Power Consumption< 10 W
- Working Temperature-40° C to +60° C(-40° F to 140° F)
- Working Humidity10% to 95%
- InstallationSurface mounting, flush mounting
- Protection LevelIP65
- Indicator3
- HeaterSupport
- Power SupplyFrom indoor station
Indoor Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Memory128 MB
- Flash32 MB
Indoor Station/Display Parameters
- Display Screen7-inch TFT touch screen
- Display Resolution1024 × 600
- Operation MethodCapacitive touch screen
- BrightnessAdjustable
Indoor Station/Audio Parameters
- Audio InputBuilt-in microphone
- Audio OutputBuilt-in loudspeaker
- Audio QualityNoise suppression and echo cancellation
- VolumeLocal adjustable
- Audio Compression StandardG.711 U, G.711 A
Indoor Station/Network Parameters
- Wired NetworkWi-Fi 802.11 b/g/n
- Wireless Network10/100 Mbps self-adaptive
Indoor Station/Device Interfaces
- RS-4851
- Alarm Input8
- Two-Wire (Output)1
- Two-Wire (Input)1
- Power Input24VDC
- Debugging Port1
Indoor Station/General
- Power Supply24VDC
- Power Consumption≤ 8 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
