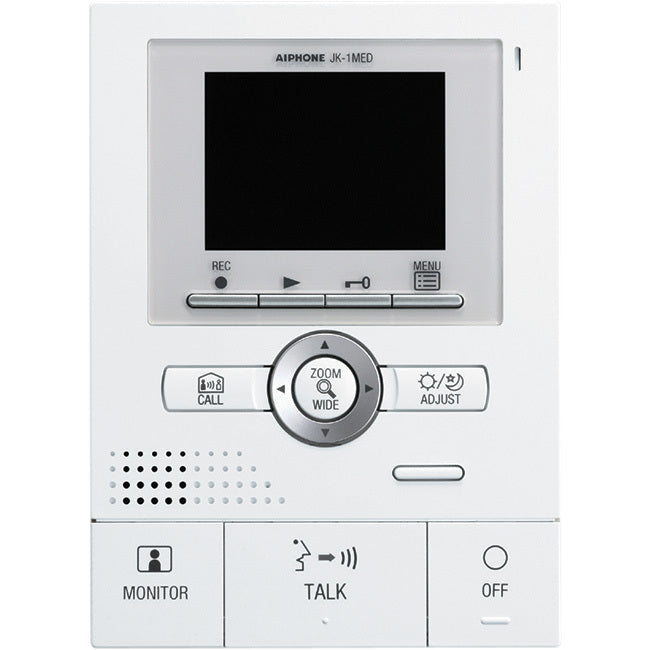

JK1MED MASTER VIDEO MONITOR STATION WITH MEMORY JK SERIES AIPHONE AIPHONE 21816180

$399.00

Online Stock Only.

For "click and collect" orders at Lynbrook store the shipping fee will still apply on collection for items not stocked at the Lynbrook store.

NOTE:

Hands-free Colour Video Master with PanTilt & Zoom

Part of the JK Series

The JK Series is a PanTilt Zoom, open voice colour video intercom system.

When matched with a JK series camera with its 170 degrees, it offers nearly twice the viewing width as conventional video intercoms.

The picture memory can manually or automatically record up to 240 images of visitors.

The JK Series supports two inside stations and a single door station.

Quick and easy install – Only 2 wires!
No handset to pick up
Compact, attractive design complements most interiors
Hands-free (VOX) or push-to-talk (PTT) communication
High resolution colour TFT LCD monitor
Includes single N/O door release contact
Camera station can be monitored from inside
All monitors turn on when camera station calls in
Wide angle camera allows user to view up to 170° of the entire entry
Camera view features digital PanTilt and Zoom
Entry can be monitored without alerting visitors they are being viewed, even at night
Camera position and zoom can be set for call-in
Camera can be manually adjusted to compensate for bright illumination
Picture memory records up to 240 images (JK-1MED only)

Power source	18V DC – Use PS-1820
Calling	AUTOMATIC (hands-free) – to activate, momentarily push TALK button MANUAL (push-to-talk/release-to-listen) – to activate, push TALK button for 1 sec. or until talk LED turns on
Video Monitor	3-1/2” direct-view TFT colour LCD
Scanning Line	525 lines
Minimum illumination	5 Lux at 1'-5/8" distance
Night Viewing	Up to 1’-5/8" from camera, with white LED projected, background beyond 1'-5/8" cannot be seen
Door release	Contact rating: 24V AC/DC, 500mA Use RY-18L for larger contact rating
Wiring	Door to master: 2-cond., mid cap, solid, non-shielded Master to sub: 4-cond., mid cap, solid, non-shielded
Distance	Door to farthest master/sub master: 50m(0.65mmØ), 100m(1.0mmØ) Master to IER-2: 75m(0.65mmØ) 150m(1.0mmØ)
Wire Type	AE7090210B: 100m Beige Ø0.9mm AE7090210G: 100m Gray Ø0.9mm JKW-BA: AE7120230B: 300m Beige Ø1.2mm
